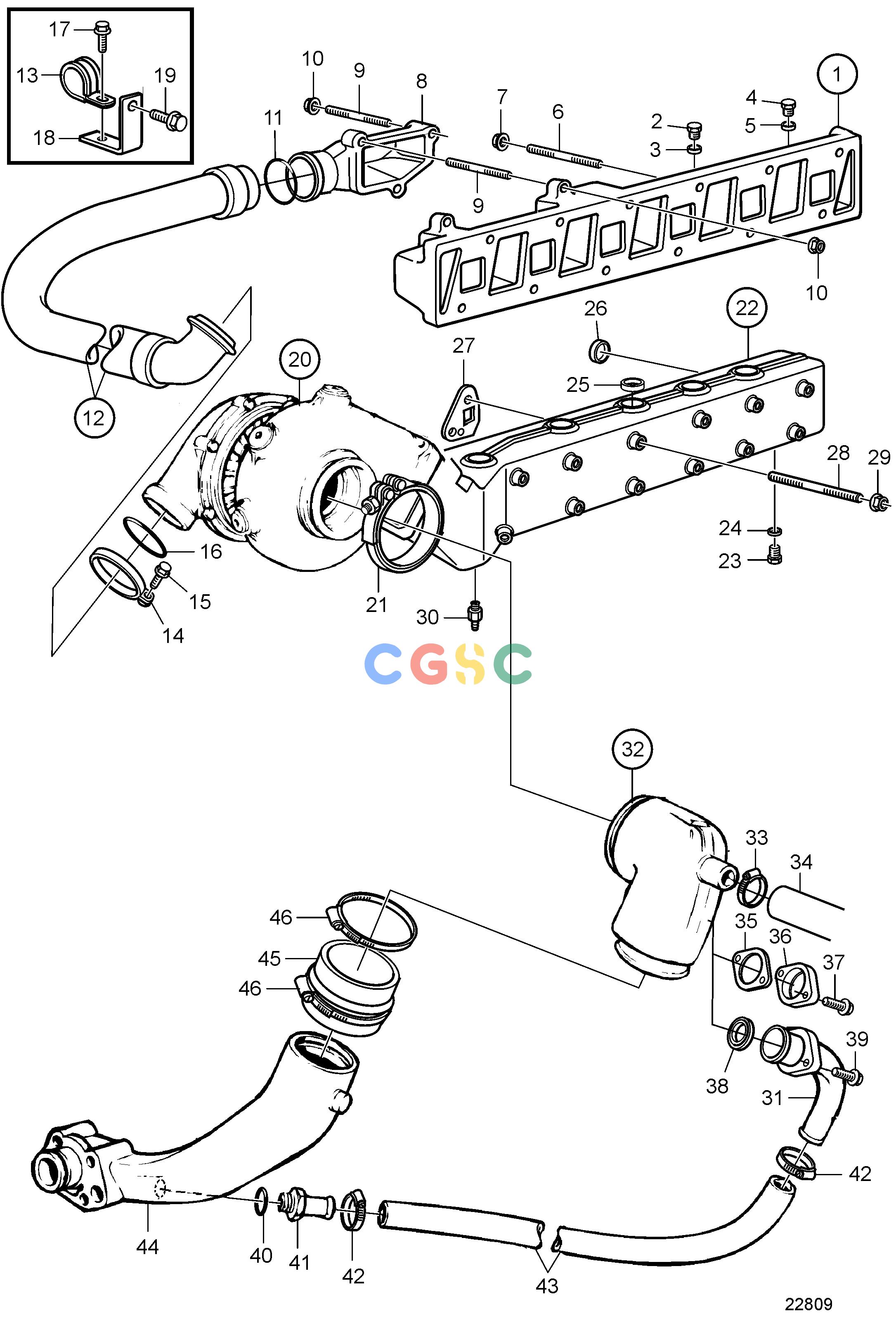

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AIntake and Exhaust SystemInduction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859300
|
[1] |
Inlet pipe
|
|
| 2. |
960634
|
[4] |
Plug
|
|
| 3. |
947627
|
[4] |
Gasket
|
|
| 4. |
960632
|
[1] |
Plug
|
|
| 5. |
11998
|
[1] |
Gasket
|
|
| 6. |
980226
|
[9] |
Stud
|
L=50mm
|
| 6. |
984130
|
[1] |
Stud
|
|
| 7. |
945408
|
[10] |
Flange nut
|
L=110mm (980227)
|
| 8. |
838857
|
[1] |
Pipe connection
|
|
| 9. |
953049
|
[1] |
Stud
|
L=50mm
|
| 9. |
984130
|
[2] |
Stud
|
L=110mm (980227)
|
| 10. |
945408
|
[3] |
Flange nut
|
|
| 11. |
864723
|
[1] |
Sealing ring
|
|
| 12. |
838867
|
[1] |
Connecting pipe
|
|
| 13. |
32447
|
[1] |
Clamp
|
|
| 14. |
838864
|
[1] |
V-clamp
|
|
| 15. |
947542
|
[1] |
Flange screw
|
|
| 16. |
967944
|
[1] |
O-ring
|
|
| 17. |
946671
|
[1] |
Flange screw
|
|
| 18. |
838866
|
[1] |
Bracket
|
|
| 19. |
946470
|
[1] |
Flange screw
|
|
| 20. |
|
|
|
|
| 21. |
842993
|
[1] |
V-clamp
|
|
| 22. |
876823
|
[1] |
Exhaust pipe
|
Repl by 877067
|
| 22. |
877067
|
[1] |
Exhaust pipe
|
Replaced by 3581406
|
| 22. |
3581406
|
[1] |
Exhaust pipe
|
|
| 23. |
960631
|
[1] |
Plug
|
|
| 23. |
960632
|
[1] |
Plug
|
|
| 24. |
11996
|
[1] |
Gasket
|
|
| 24. |
11998
|
[1] |
Gasket
|
|
| 25. |
946780
|
[11] |
Cap plug
|
|
| 26. |
838766
|
[1] |
Sealing ring
|
|
| 27. |
876144
|
[3] |
Gasket kit
|
|
| 28. |
953001
|
[8] |
Stud
|
L=120mm
|
| 28. |
953002
|
[1] |
Stud
|
For later version of expansion tank., L=125mm
|
| 28. |
953003
|
[1] |
Stud
|
L=130mm
|
| 28. |
953005
|
[1] |
Stud
|
For later version of expansion tank., L=140mm
|
| 28. |
953007
|
[1] |
Stud
|
For earlier version of expansion tank., L=150mm
|
| 28. |
980835
|
[1] |
Stud
|
For later version of expansion tank., L=155mm
|
| 29. |
971095
|
[12] |
Flange nut
|
|
| 30. |
949918
|
[1] |
Shut-off cock
|
|
| 31. |
844258
|
[1] |
Coolant pipe
|
|
| 32. |
860656
|
[1] |
Pipe elbow
|
D=32mm, repl by 861289
|
| 32. |
861289
|
[1] |
Exhaust pipe elbow
|
D=38mm
|
| 33. |
994561
|
[1] |
Hose clamp
|
For 860656
|
| 33. |
994562
|
[1] |
Hose clamp
|
For 861289
|
| 34. |
860828
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=32mm, for 860656
|
| 34. |
3581065
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=38mm, for 861289
|
| 35. |
859002
|
[1] |
Gasket
|
|
| 36. |
844093
|
[1] |
Flange
|
|
| 37. |
946544
|
[2] |
Flange screw
|
|
| 38. |
842913
|
[1] |
Sealing ring
|
|
| 39. |
946544
|
[2] |
Flange screw
|
|
| 40. |
958228
|
[1] |
O-ring
|
|
| 41. |
873221
|
[1] |
Nipple
|
|
| 42. |
853548
|
[2] |
Hose clamp
|
|
| 43. |
944386
|
[1] |
Rubber hose
|
L=720mm
|
| 44. |
|
|
|
See group 44
|
| 45. |
860396
|
[1] |
Exhaust hose
|
|
| 46. |
982694
|
[4] |
Hose clamp
|
(981239)
|
