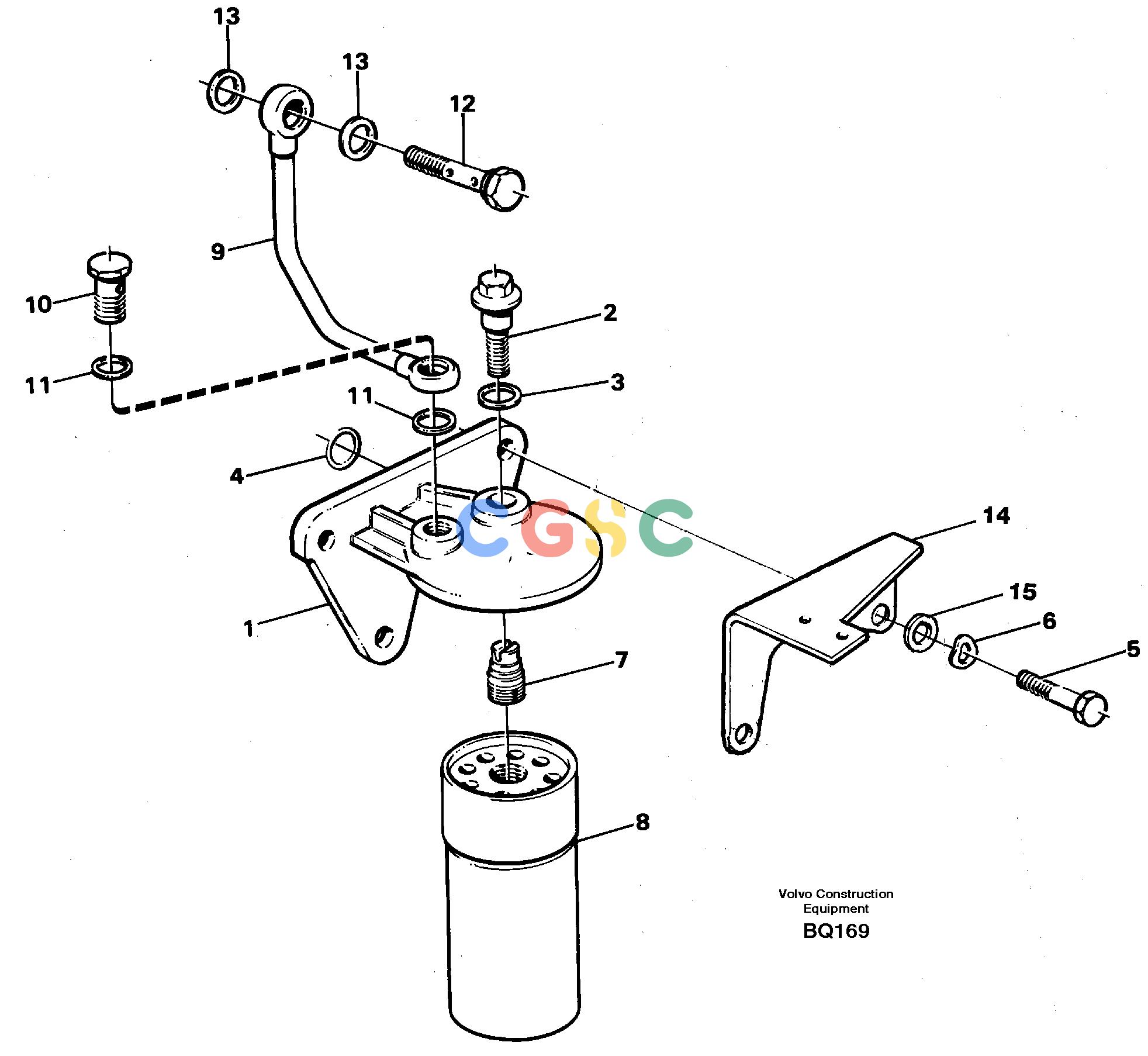

沃尔沃零件查询A35C Oil filter by passSER NO 4621-, SER NO USA 60001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
765 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031513
|
[1] |
Housing
|
|
| |
VOE13951973
|
[1] |
Spring pin
|
|
| 2. |
VOE471855
|
[1] |
Screw
|
|
| 3. |
VOE471856
|
[1] |
Sealing ring
|
|
| 4. |
VOE13949656
|
[1] |
O-ring
|
(949656)
|
| 5. |
VOE13940115
|
[1] |
Screw
|
L=25MM
|
| |
VOE955535
|
[2] |
Hexagon screw
|
L=32MM
|
| 6. |
VOE13942336
|
[3] |
Spring washer
|
|
| 7. |
VOE11031514
|
[1] |
Nipple
|
|
| 8. |
VOE21707132
|
[1] |
Oil filter
|
|
| 9. |
VOE478726
|
[1] |
Tube
|
|
| 10. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 11. |
VOE13969011
|
[2] |
Gasket
|
|
| 12. |
VOE13947975
|
[1] |
Hollow screw
|
|
| 13. |
VOE13947282
|
[3] |
Gasket
|
|
| 14. |
VOE11055071
|
[1] |
Anchorage
|
|
| 15. |
VOE13940097
|
[2] |
Washer
|
|
