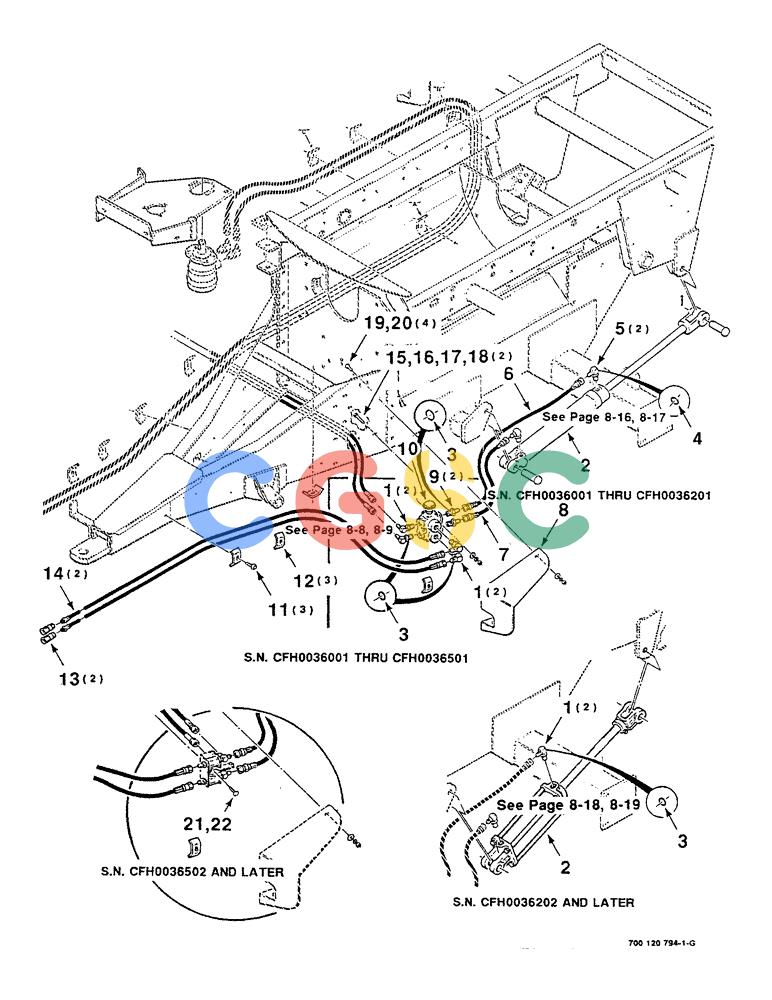

| 1. |
218-5128
|
[6] |
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
|
CAS
(Incl. item 3) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring Superseded by part number: 87329788
|
| 2. |
700704318
|
[1] |
CYLINDER
|
HFI
- hydraulic (Includes pins) (S.N. CFH0036001 thru CFH0036201) Superseded by part number: 700712023
|
| . . |
700709525
|
[1] |
CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke
|
CAS
- hydraulic (Includes pins) (S.N. CFH0036202 and later)
|
| 3. |
237-6008
|
[3] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
8-1, 90 Duro, .644" ID x .087" Thk Superseded by part number: 128825
|
| 4. |
738468
|
[1] |
O-RING
|
IH
|
| 5. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes item 4) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring Superseded by part number: 76344, 72186128
|
| 6. |
7872765
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 7. |
7872542
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 8. |
700117379
|
[1] |
SHIELD
|
HFI
- valve
|
| 9. |
218-5058
|
[2] |
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
|
CAS
CONNECTOR (Includes item 3) Superseded by part number: 128817, 72186139
|
| 10. |
700704757
|
[1] |
VALVE
|
HFI
- flow control
|
| 11. |
73528
|
[3] |
SELF-TAP SCREW
|
CAS
3/8-16 X 1-1/2 HWHTCTS
|
| 12. |
700126495
|
[3] |
CLAMP
|
HFI
- line
|
| 13. |
1-7141
|
[2] |
FITTING
|
CAS
COUPLER - quick disconnect Superseded by part number: 1272770C2
|
| 14. |
700707874
|
[2] |
HOSE
|
IH
- hydraulic
|
| 15. |
413-640
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 16. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 17. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 18. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 19. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 20. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 21. |
434-616
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 22. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
