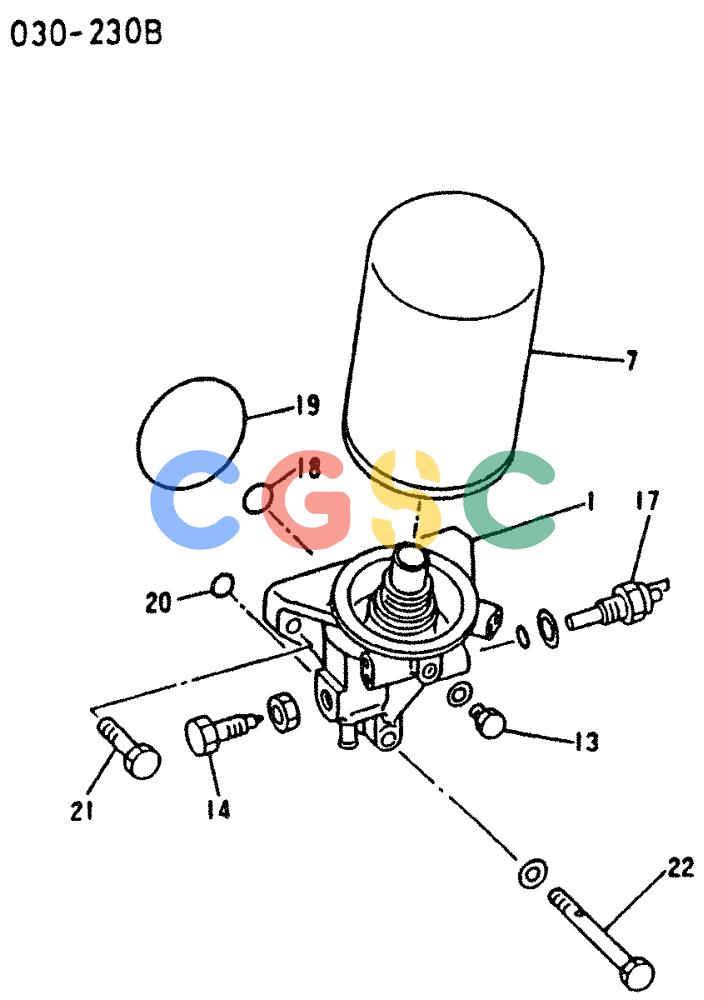

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (01-010) - OIL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME074011 | [1] | FILTER ASSY,OIL OIL FILTER ASSY | FILTER ASSY,OIL OIL FILTER ASSY |
| 1. | VAME074012 | [1] | CYLINDER HEAD | KOBHEAD.OIL FILTER Superseded by part number: VAME074383 |
| 7. | VAME074013 | [1] | ELEMENT | KOBELEMENT,OIL FILTER Superseded by part number: 2451U324-1D |
| 13. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG,AIR Superseded by part number: 77270641, VAME016894 |
| . . | VAMF660062 | [1] | PACKING | KOBGASKET 8 |
| 14. | VAME034177 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE.DRAIN |
| . . | VAMF430728 | [1] | NUT | KOBNUT,JAM 14 Superseded by part number: 132634A1 |
| 17. | VAME034880 | [1] | BUZZER | KOBALARM ,OIL BY-PASS |
| . . | VAME034881 | [2] | O-RING | KOBO-RING |
| . . | VAMF660068 | [2] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 18. | VAMH035095 | [2] | O-RING | KOBO-RING |
| 19. | VAMF520594 | [1] | O-RING | KOBO-RING. 90 |
| 20. | VA3112304100 | [1] | O-RING | KOBO-RING Superseded by part number: 132546A1 |
| 21. | VAMH000711 | [2] | SCREW | KOBBOLT,FLANGE 10X40 Superseded by part number: 135146A1 |
| 22. | VAMH000880 | [1] | BOLT | KOBBOLT 10X100 |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
