神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (01-013) - OIL LINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
417 次

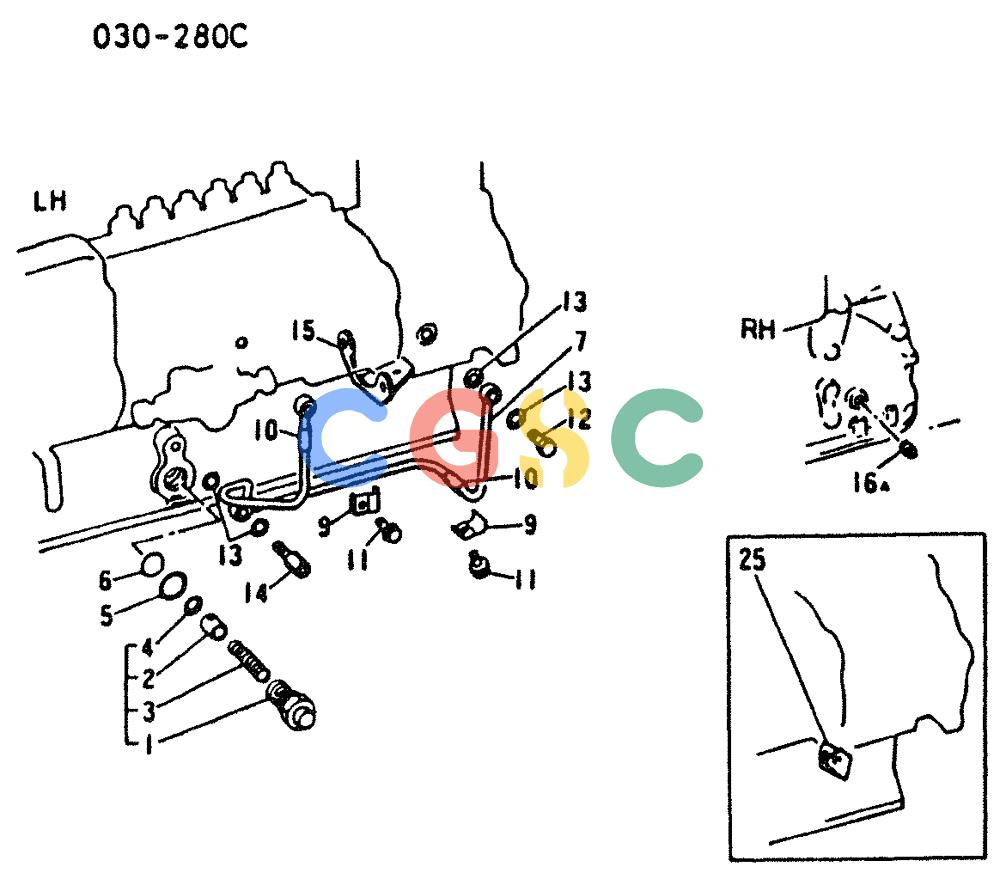

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME034545 | [1] | INTAKE VALVE GUIDE | KOBREGULATING VALVE ASSY Superseded by part number: VAME074455 |
| 1. | VAME034546 | [1] | VALVE BODY,VALVE | VALVE BODY,VALVE |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONVALVE,RELIEF |
| 3. | VAME034548 | [2] | SPRING | KOBSPF.1G,REIIEF/V |
| 4. | VAMF522207 | [2] | RING | KOBRING,SNAP 16 |
| 5. | VAMF660071 | [2] | PACKING | KOBGASKET 27 |
| 6. | VAMH035129 | [2] | O-RING | KOBO-RING |
| 7. | VAME074015 | [1] | PIPE | KOBPIPE,OIL.FOR I/P.A/COMPR |
| 9. | VA3007554900 | [2] | CLAMP | KOBCLAMP |
| 10. | VAMH022205 | [2] | PROTECTOR | KOBPROTECTOR |
| 11. | VAMF241227 | [1] | BOLT | KOBBOLT,W/WSR 6X20 |
| 12. | VAMH000119 | [1] | BOLT | KOBBOLT,JOINT |
| 13. | VAMF660063 | [1] | GASKET | KOBGASKET IS Superseded by part number: VAF420210000 |
| 14. | VAME034051 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| IS. | VAME074017 | [2] | STAY | |
| 16A. | VAMS666222 | [1] | PLUG | SMPLUG,TAPER PT3/8 |
| 25. | VAME070993 | [1] | STAY | |
