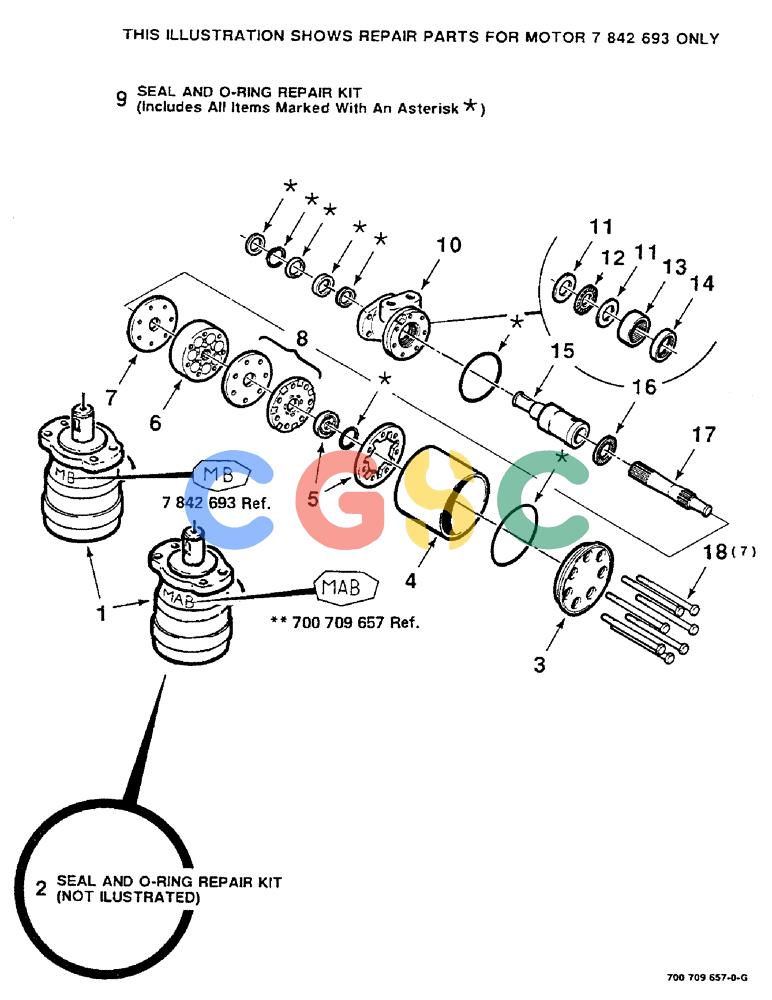

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (8-12) - MOTOR HYDRAULIC CONTAINER DRIVE, SERIAL NUMBER CFH0036001 THRU CFH0036324 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7842693
|
[1] |
MOTOR, HYDRAULIC
|
HFI
MOTOR - hydraulic, complete
|
| . . |
700709657
|
[1] |
MOTOR
|
CAS
- hydraulic, complete Superseded by part number: 1986619C1
|
| 2. |
1980156C1
|
[1] |
SEAL KIT
|
IH
SEAL AND O-RING REPAIR KIT
|
| 3. |
N9527
|
[1] |
COVER
|
CAS
ASSEMBLY - end
|
| 4. |
7034077
|
[1] |
PROTECTOR
|
HFI
SLEEVE - protector
|
| 5. |
D60857
|
[1] |
COMMUTATOR
|
CAS
AND RING KIT
|
| 6. |
7033988
|
[1] |
ROTOR ASSY.
|
HFI
ROTOR ASSEMBLY
|
| 7. |
N9504
|
[1] |
PLATE ASSY.
|
CAS
PLATE - wear
|
| 8. |
D71235
|
[1] |
MANIFOLD
|
CAS
KIT - manifold
|
| 9. |
174397C2
|
[1] |
SEAL KIT
|
IH
SEAL AND O-RING REPAIR KIT
|
| 10. |
D59696
|
[1] |
COVER
|
CAS
HOUSING ASSEMBLY
|
| 11. |
D60861
|
[2] |
WASHER
|
CAS
- thrust
|
| 12. |
D60860
|
[1] |
THRUST BEARING,1.366" ID x 2.24" OD x 0.125"
|
CAS
BEARING - thrust Superseded by part number: 273136
|
| 13. |
7033962
|
[1] |
NEEDLE BEARING
|
HFI
BEARING - needle
|
| 14. |
362251R91
|
[1] |
BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W
|
IH
BEARING - needle
|
| 15. |
7035074
|
[1] |
COUPLING
|
HFI
SHAFT - coupling
|
| 16. |
6144489
|
[1] |
KIT
|
HFI
- thrust bearing
|
| 17. |
7033970
|
[1] |
DRIVE SHAFT
|
HFI
LINK - drive
|
| 18. |
7034002
|
[7] |
BOLT
|
HFI
- special
|
