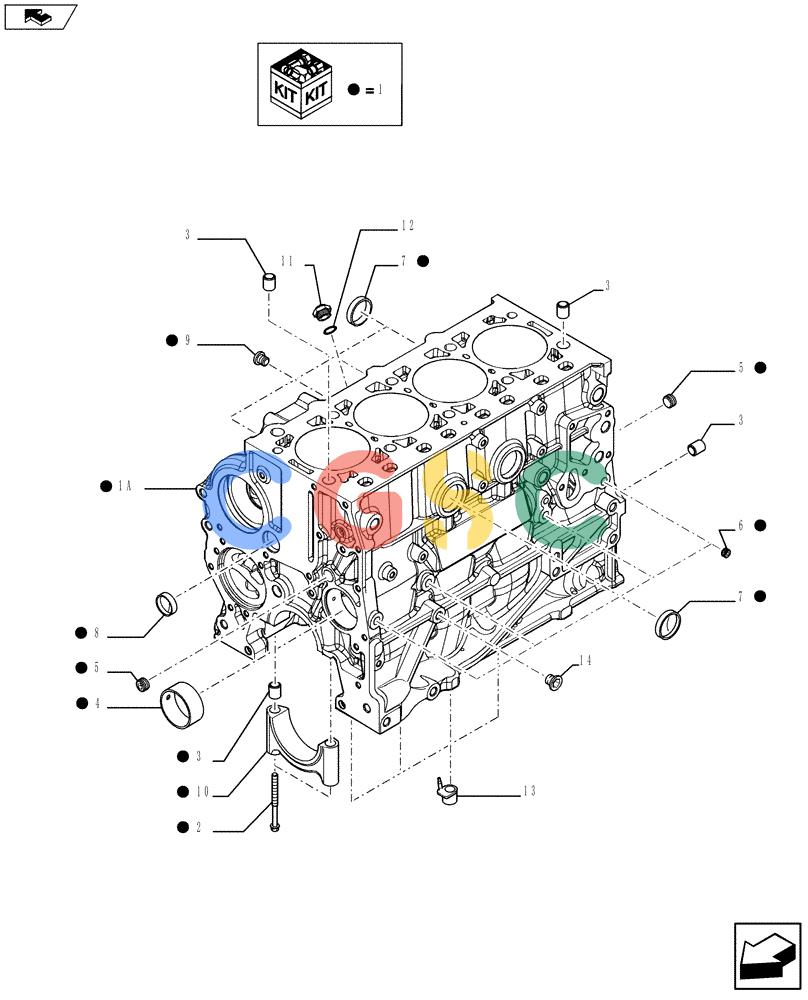

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504384812) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
973 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504371226 | [1] | CYLINDER BLOCK | TORASSY Contains Ref.1A - 9 Superseded by part number: 16978124, 5801491272, 5801501610 |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 3. | 7300019 | [14] | DOWEL,0.75mm Thk | NH |
| 4. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 5. | 504051238 | [3] | PLUG,Threaded, 3/8" Dia | TOR |
| 6. | 504138060 | [4] | PLUG | TORD = 1/8" |
| 7. | 14329901 | [5] | PLUG,M40, Tapered | TOR |
| 8. | 16990970 | [1] | PLUG,Lock, 30mm Dia | TORD = 30 mm |
| 9. | 504016052 | [1] | PLUG,M14 x 1.5 | TORM14 x 1.5 |
| 11. | 504356829 | [1] | | PIPE FITTING,M14 x 1.5 |
| 12. | 504077652 | [1] | SEALING WASHER,13mm ID x 19mm OD | TOR |
| 13. | 5801363466 | [4] | BUSHING | TOR |
| 14. | 17917015 | [1] | PLUG | TOR |
