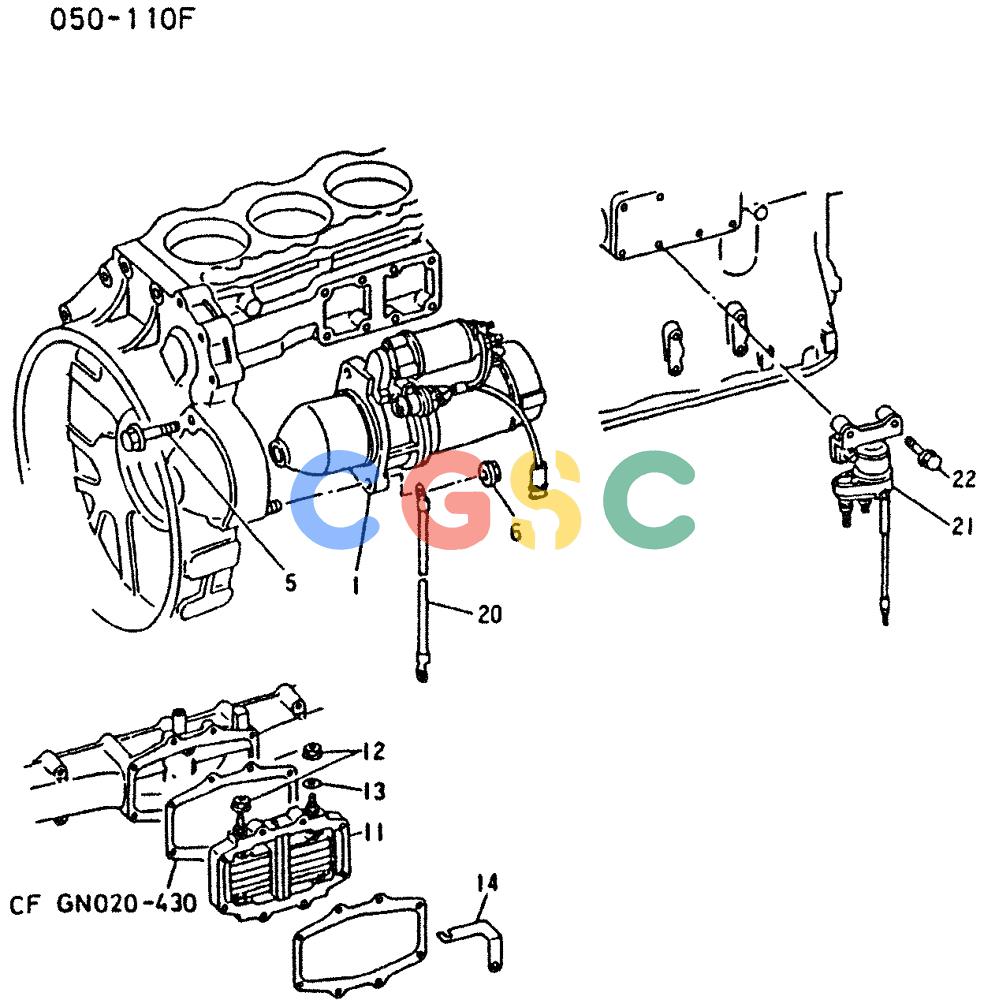

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (03-003) - STARTER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME049184 | [1] | STARTER MOTOR | KOBSTARTER ASSY.MEC 24V-6.0KW |
| 5. | VAMH000841 | [1] | SCREW | KOBBOLT.FLANGE 12X75 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT,FLANGE 12 Superseded by part number: 135085A1 |
| 11. | VAME037260 | [1] | HEATER | KOBAIT HEATER ASSY 22V-1.83KW |
| 12. | VAMF434103 | [2] | NUT | KOBNUT, FLANGE 6 |
| 13. | VAMF450153 | [1] | WASHER | KOBWASHER,PLAIN 6 |
| 14. | VAMF070699 | [1] | PLATE PLATE,EARTH | PLATE PLATE,EARTH |
| 20. | VAMH054040 | [1] | STRAP | KOBSTRAP,EARTH |
| 21. | VAME049232 | [1] | RELAY | KOBRELAY,HEATER,MEC Superseded by part number: VAME049307 |
| . . | VAME067638 | [1] | FUSE | KOBFUSE 91A Superseded by part number: 135155A1 |
| 2.2. | VAMF140227 | [2] | FLANGE BOLT | KOBBOLT,FLANGE 8X25 |
