纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.101.01[01]) - CYLINDER HEAD & RELATED PARTS (504388233) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
582 次

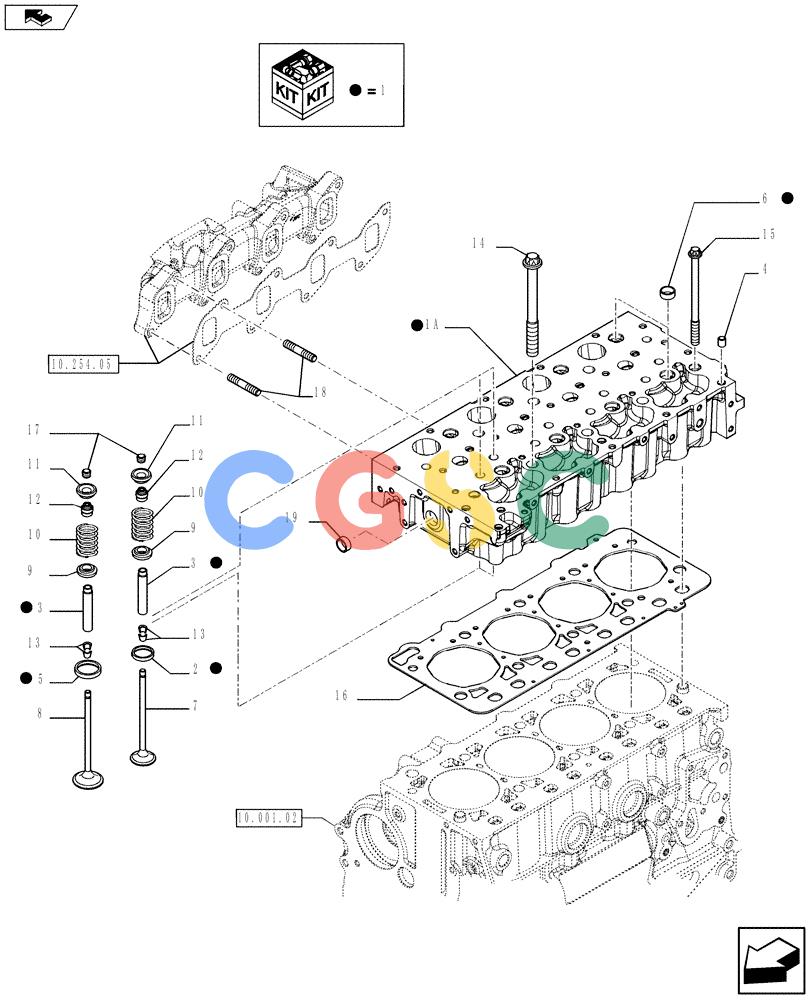

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504389002 | [1] | CYLINDER HEAD | TORASSY Contains Ref.1A, 2, 3, 5, 6 |
| 1. | 47508144R | [1] | REMAN-CYLINDER HEAD | TORReman for New PN 504389002 |
| 1. | 47508144C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 504162949 | [4] | VALVE SEAT | TOR |
| 3. | 4749397 | [8] | VALVE GUIDE,Std | TOR+0.05 mm |
| 3. | 4749398 | [8] | VALVE GUIDE,+0.10 | TOR+0.1 mm |
| 3. | 4749399 | [8] | VALVE GUIDE,+0.2 | TOR+0.25 mm |
| 4. | 99435557 | [1] | DOWEL,8.50mm Dia | TORD = 8.5 mm Superseded by part number: 2852481 |
| 5. | 504254094 | [4] | VALVE SEAT | TOR |
| 6. | 16988301 | [8] | PLUG | TORD = 20 mm |
| 7. | 504387778 | [4] | STD INLET VALVE | TORSTD ENGINE INLET VALVE |
| 8. | 504387779 | [4] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 9. | 504178119 | [8] | RETAINER CUP | TOR |
| 10. | 4812347 | [8] | SPRING | TOR |
| 11. | 4780558 | [8] | CUP | TOR |
| 12. | 40101573 | [8] | SEAL | TOR |
| 13. | 4819891 | [16] | ROCKER ARM COTTER,7.85mm Dia | LECD = 7.85 mm Superseded by part number: 4734134 |
| 14. | 504081521 | [6] | BOLT,M15 x 1.5 x 193mm | TORM15 x 1.5 x 193 |
| 15. | 504081533 | [4] | BOLT,M12 x 1.5 x 165mm | TORM12 x 1.5 x 165 |
| 16. | 5801450757 | [1] | CYLINDER HEAD GASKET,0.80mm Thk | TOR |
| 17. | 504387777 | [8] | CAP | TOR |
| 18. | 5801475385 | [8] | STUD,M8 x 1.25 | TORM8 x 12 x 45 |
| 19. | 16990970 | [1] | PLUG,Lock, 30mm Dia | TOR |
| 19. | 16990670 | [4] | PLUG,Lock, 22mm Dia | BRE |
