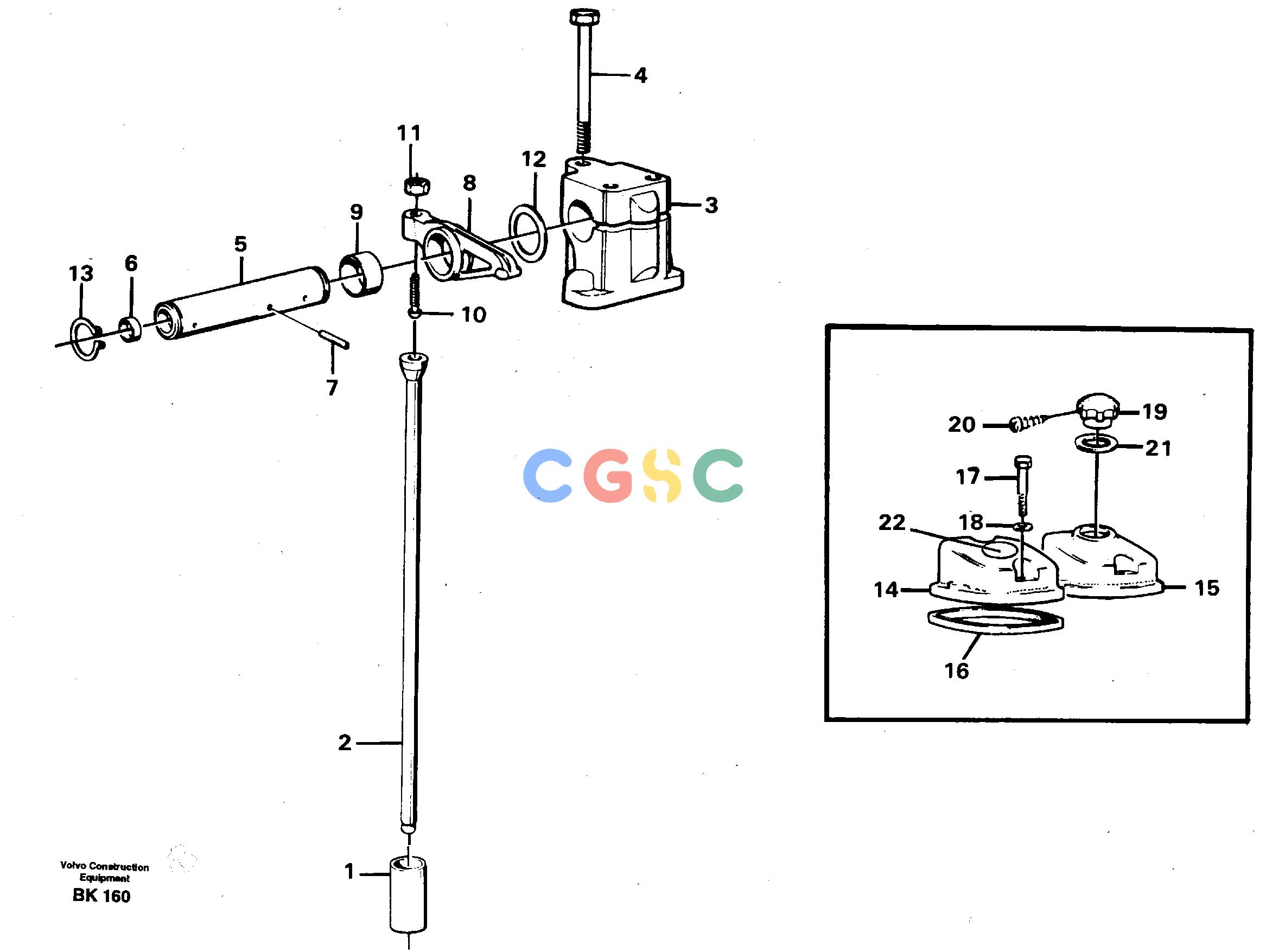

沃尔沃零件查询A35C VOLVO BM Valve mechanismVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE479863
|
[12] |
Tappet
|
|
| 2. |
VOE423021
|
[12] |
Push rod
|
|
| 3. |
VOE423266
|
[6] |
Bearing Bracket
|
|
| 4. |
VOE423331
|
[18] |
Screw
|
|
| 5. |
VOE423267
|
[6] |
Shaft
|
|
| 6. |
VOE946778
|
[12] |
Cap plug
|
|
| 7. |
VOE950499
|
[6] |
Pin
|
|
| 8. |
VOE423263
|
[12] |
Rocker arm
|
|
| 9. |
VOE422066
|
[12] |
Bushing
|
|
| 10. |
VOE422993
|
[12] |
Bolt
|
|
| 11. |
VOE940175
|
[12] |
Nut
|
|
| 12. |
VOE423269
|
[12] |
Washer
|
|
| 13. |
VOE914459
|
[12] |
Snap ring
|
|
| 14. |
VOE423403
|
[5] |
Cover
|
|
| 15. |
VOE423404
|
[1] |
Cover
|
Cyl 1
|
| 16. |
VOE424692
|
[6] |
Gasket
|
|
| 17. |
VOE13955527
|
[12] |
Screw
|
(955527)
|
| 18. |
VOE942580
|
[12] |
Gasket
|
|
| 19. |
VOE421753
|
[1] |
Filler cap
|
CYL1
|
| 20. |
VOE955126
|
[3] |
Cross recessed screw
|
E-PROD
|
| 21. |
VOE1275379
|
[1] |
Gasket
|
|
| 22. |
VOE417649
|
[1] |
Sign
|
|
