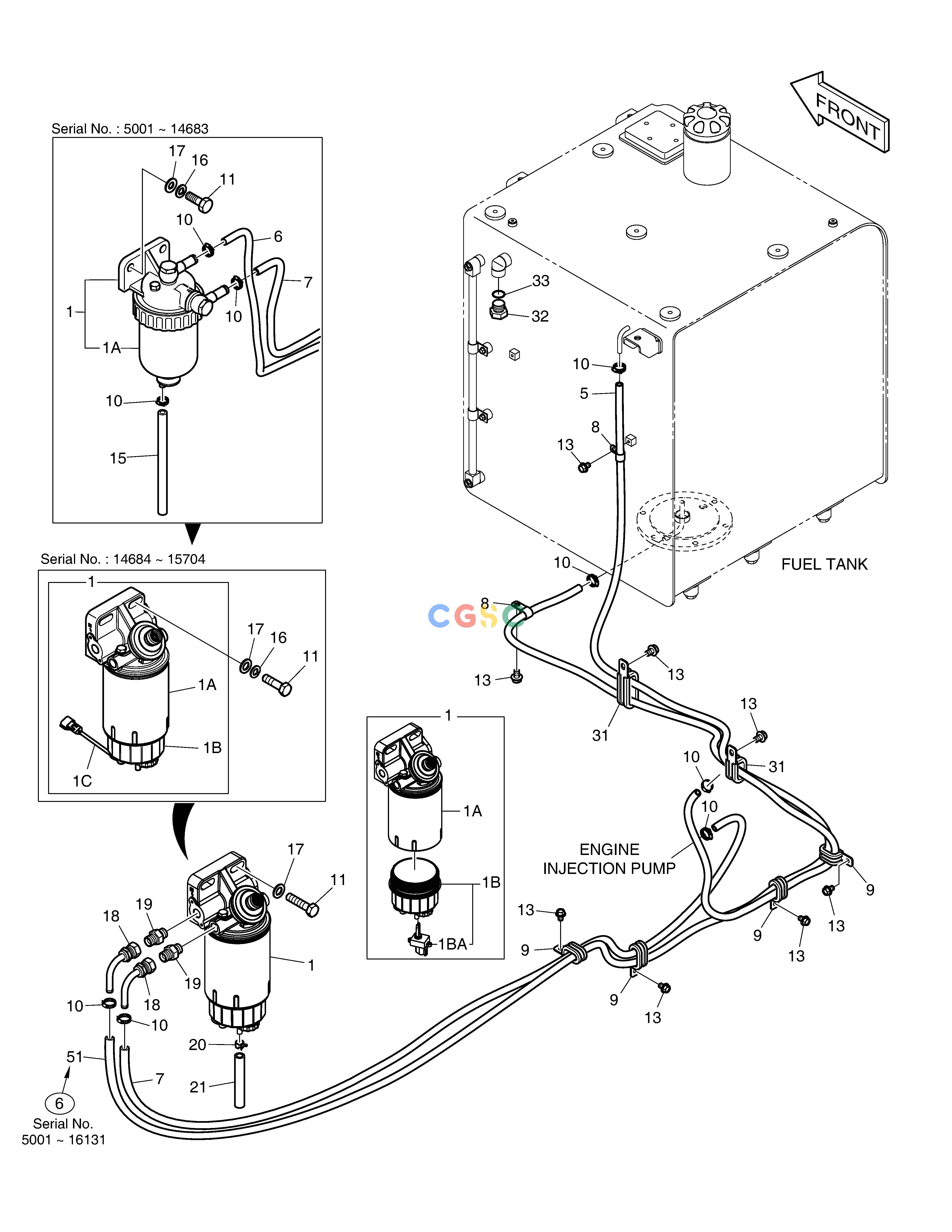

斗山零件查询FUEL PIPING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1007631B
|
[-] |
FUEL PIPING
|
|
| 1. |
400403-00195A
|
[1] |
FILTER,FUEL PRE
|
|
| 1. |
K1044605
|
[1] |
PRE FUEL FILTER ASS'Y
|
|
| 1. |
400403-00195
|
[1] |
|
400403-00195A
|
| 1. |
K1013251
|
[1] |
SEPARATOR;WATER
|
|
| 10. |
S8470014
|
[6] |
CLAMP
|
|
| 10. |
S8470014
|
[7] |
CLAMP
|
|
| 11. |
S0512266
|
[2] |
BOLT
|
|
| 11. |
S0561166
|
[2] |
BOLT
|
|
| 11. |
S0560666
|
[2] |
BOLT
|
|
| 13. |
K1001029
|
[8] |
BOLT
|
|
| 15. |
DS2105011
|
[1] |
HOSE;FUEL
|
|
| 16. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
S5102703
|
[2] |
WASHER
|
|
| 17. |
120804-00077
|
[2] |
WASHER
|
|
| 17. |
S5010613
|
[2] |
WASHER
|
|
| 17. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 18. |
K1002864
|
[2] |
ELBOW
|
|
| 19. |
DS2479004
|
[2] |
ADAPTER
|
|
| 1A. |
K1006530
|
[1] |
FILTER;PRE FUEL
|
|
| 1A. |
400508-00084
|
[1] |
. CARTRIDGE ASSY,FILTER
|
|
| 1A. |
K9002044
|
[1] |
ELEMENT
|
|
| 1B. |
K1046352
|
[1] |
BOWL;WATER
|
|
| 1B. |
110964-00022
|
[1] |
. BOWL
|
|
| 1BA. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 1C. |
K1046350
|
[1] |
. SENSOR;WATER
|
|
| 20. |
DS2809001
|
[1] |
CLIP
|
|
| 20. |
DS2807008
|
[1] |
|
DS2809001
|
| 21. |
DS2165001
|
[1] |
|
|
| 21. |
DS2105131
|
[1] |
|
|
| 31. |
124-00209D1
|
[2] |
CLIP
|
|
| 32. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 33. |
S8000181
|
[1] |
O-RING
|
|
| 5. |
DS2105022
|
[1] |
HOSE
|
|
| 51. |
DS2105026
|
[1] |
HOSE
|
|
| 6. |
DS2105026
|
[1] |
HOSE
|
|
| 7. |
DS2105063
|
[1] |
|
|
| 7. |
DS2105018
|
[1] |
HOSE
|
|
| 8. |
2124-1509D2
|
[2] |
CLIP
|
|
| 9. |
124-00209D1
|
[4] |
CLIP
|
|
