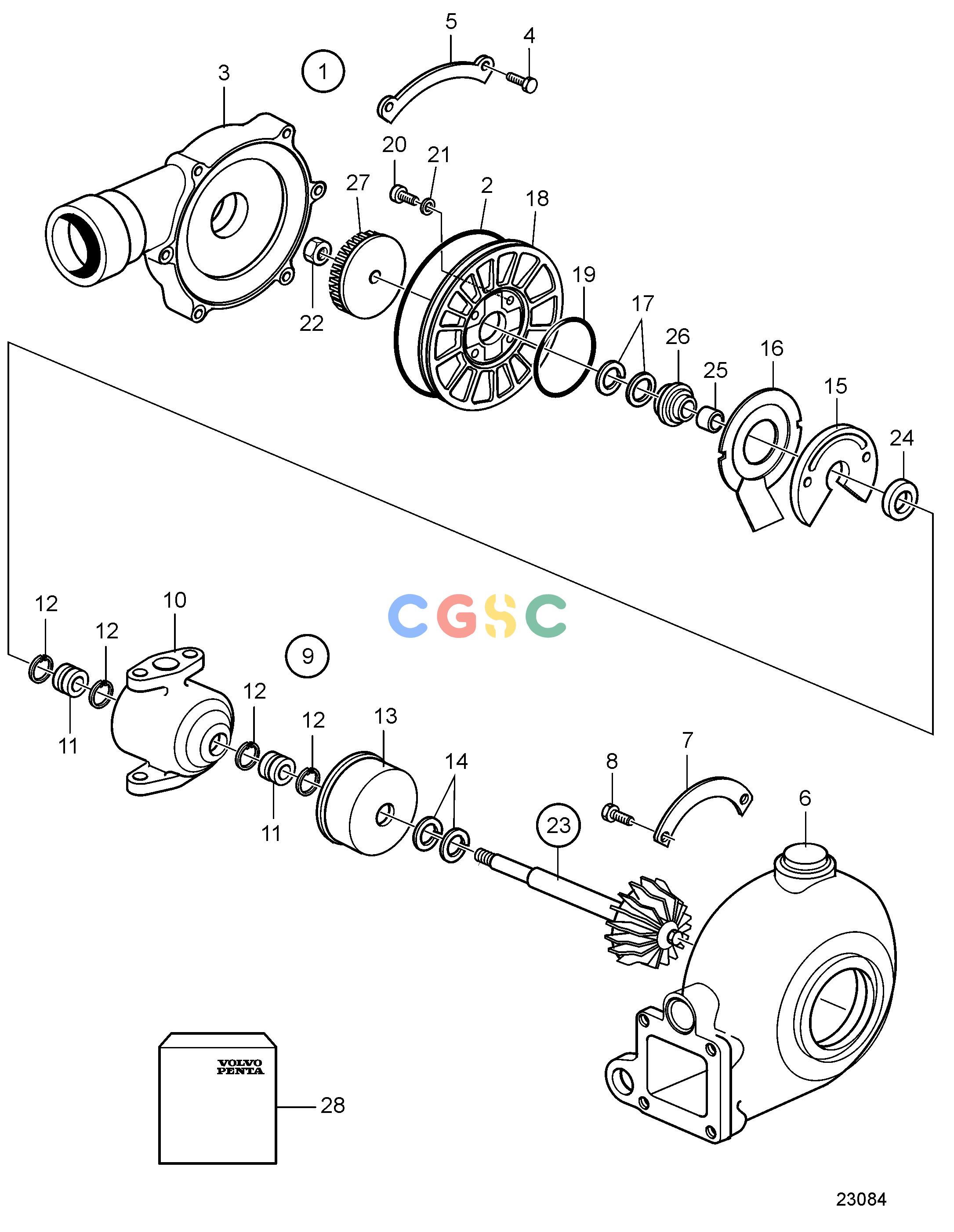

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AIntake and Exhaust SystemTurbocharger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3802082
|
[1] |
Turbocharger
|
(3581528)
|
| 2. |
838567
|
[1] |
O-ring
|
Included in repair kit
|
| 3. |
|
|
|
|
| 4. |
955270
|
[8] |
Hexagon screw
|
Included in repair kit, (858661)
|
| 5. |
858662
|
[4] |
Segment
|
|
| 6. |
|
|
|
|
| 7. |
858664
|
[3] |
Segment
|
|
| 8. |
955293
|
[6] |
Hexagon screw
|
|
| 9. |
858705
|
[1] |
Bearing housing
|
|
| 10. |
|
|
|
|
| 11. |
838562
|
[2] |
Bushing
|
|
| 12. |
845042
|
[4] |
Lock ring
|
|
| 13. |
858668
|
[1] |
Heat shield
|
|
| 14. |
|
|
|
Included in repair kit
|
| 15. |
858710
|
[1] |
Axial bearing
|
|
| 16. |
845047
|
[1] |
Oil deflector
|
|
| 17. |
|
|
|
Included in repair kit
|
| 18. |
|
|
|
|
| 19. |
838426
|
[1] |
O-ring
|
|
| 20. |
845829
|
[4] |
Screw
|
|
| 21. |
838568
|
[4] |
Washer
|
|
| 22. |
|
|
|
Included in repair kit
|
| 23. |
858707
|
[1] |
Rotor
|
|
| 24. |
844000
|
[1] |
Thrust ring
|
|
| 25. |
845050
|
[1] |
Sleeve
|
|
| 26. |
858675
|
[1] |
Seal
|
|
| 27. |
858708
|
[1] |
Compressor wheel
|
|
| 28. |
861501
|
[1] |
Repair kit
|
|
