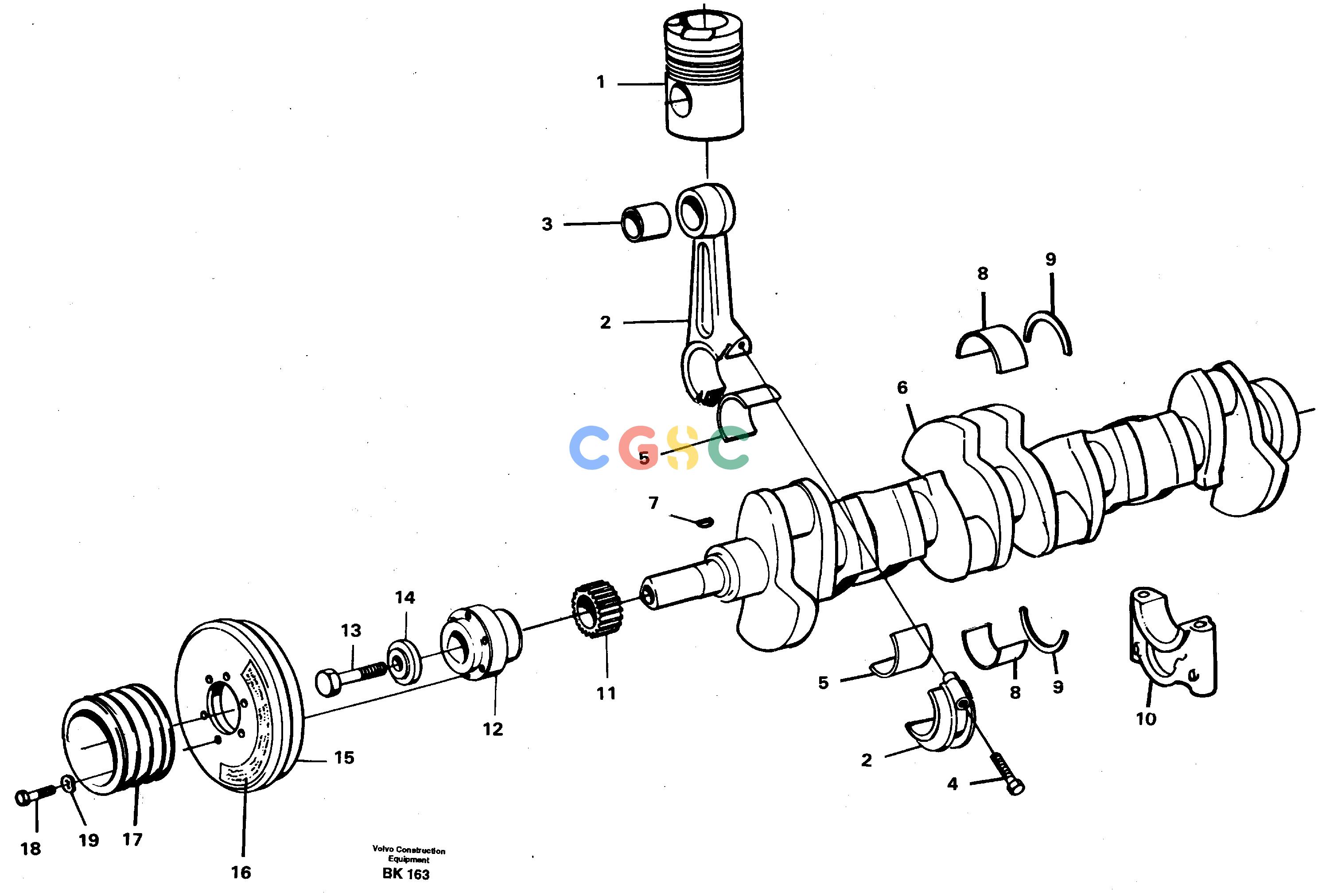

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Piston
|
|
| 2. |
VOE470424
|
[6] |
Connecting rod
|
|
| 3. |
VOE470434
|
[6] |
Bushing
|
|
| 4. |
VOE1545479
|
[12] |
Screw
|
|
| |
|
|
None
|
|
| 5. |
VOE270130
|
[6] |
Big End Brg Kit
|
STD
|
| |
VOE270131
|
[6] |
Big End Brg Kit
|
0.25MM U SZ
|
| |
VOE270132
|
[6] |
Big End Brg Kit
|
0.50MM U SZ
|
| |
VOE270133
|
[6] |
Big End Brg Kit
|
0.75MM U SZ
|
| |
VOE270134
|
[6] |
Big End Brg Kit
|
1.00MM U SZ
|
| |
VOE270135
|
[6] |
Big End Brg Kit
|
1.25MM U SZ
|
| |
|
|
None
|
|
| 6. |
VOE8125583
|
[1] |
Crankshaft
|
|
| |
VOE13978130
|
[6] |
Plug
|
|
| 7. |
VOE422253
|
[1] |
Key
|
|
| |
|
|
None
|
|
| 8. |
VOE270449
|
[7] |
Main bearing kit
|
STD
|
| |
VOE270450
|
[7] |
Main bearing kit
|
0.25MM U SZ
|
| |
VOE270451
|
[7] |
Main bearing kit
|
0.51MM U SZ
|
| |
VOE270452
|
[7] |
Main bearing kit
|
0.75MM U SZ
|
| |
VOE270453
|
[7] |
Main bearing kit
|
1.00MM U SZ
|
| |
VOE270454
|
[7] |
Main bearing kit
|
1.20MM U SZ
|
| |
|
|
None
|
|
| 9. |
VOE21948261
|
[1] |
Thrust washer kit
|
STD
|
| |
VOE3093652
|
[1] |
Thrust washer kit
|
0.1MM O SZ
|
| |
VOE3093653
|
[1] |
Thrust washer kit
|
0.2MM O SZ
|
| |
|
|
None
|
|
| 10. |
|
[7] |
Cap
|
|
| 11. |
VOE423080
|
[1] |
Gear
|
|
| 12. |
VOE478506
|
[1] |
Hub
|
|
| 13. |
VOE941494
|
[1] |
Screw
|
|
| 14. |
VOE422124
|
[1] |
Washer
|
|
| 15. |
VOE422924
|
[1] |
Vibration damper
|
|
| 16. |
VOE467834
|
[1] |
Sign
|
|
| 17. |
VOE468187
|
[1] |
Pulley
|
|
| 18. |
VOE955549
|
[6] |
Hexagon screw
|
|
| 19. |
VOE13941909
|
[6] |
Washer
|
(941909)
|
