纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.103.01) - CRANKSHAFT (504388935) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
348 次

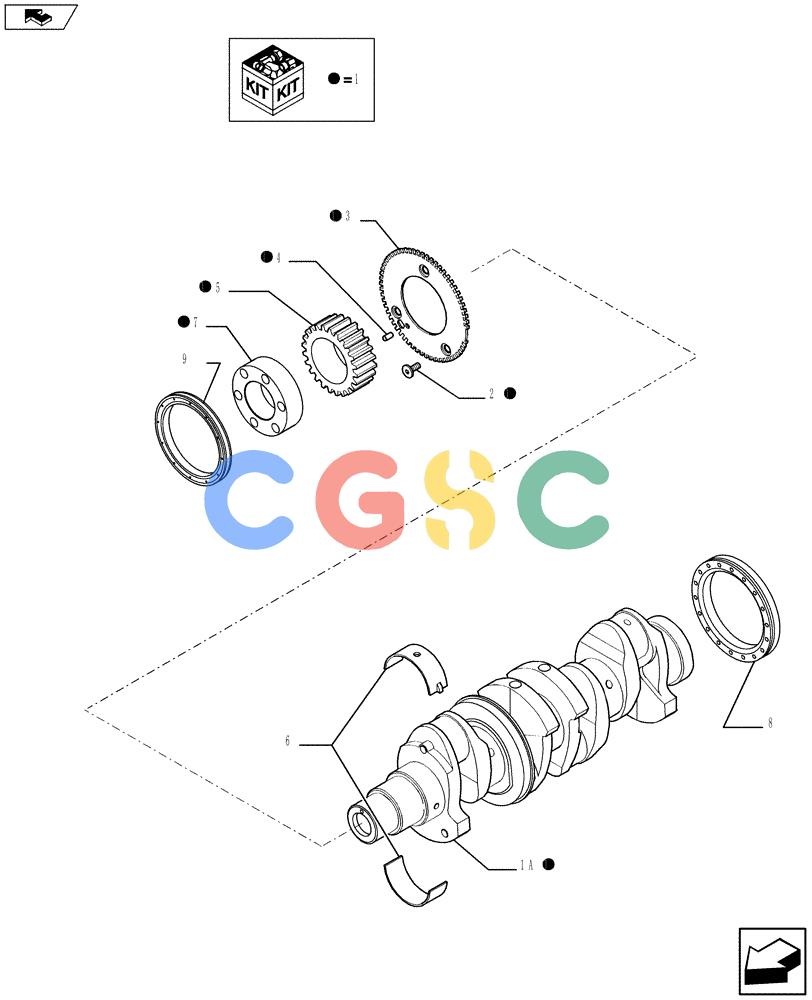

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504387204 | [1] | CRANKSHAFT | TORASSY Superseded by part number: 5801723073 |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 500374310 | [3] | SCREW | TORM6 x 1 |
| 3. | 504381409 | [1] | GEAR | TOR |
| 4. | 504006981 | [1] | COTTER PIN | TORD. 5.5 mm |
| 5. | 504378732 | [1] | | |
| 6. | 8097862 | [1] | SET OF STD MAIN BRGS | TOR |
| 6. | 8097863 | [1] | SET OF MAIN BRGS -0.254,Main, -0.254 | TOR |
| 6. | 8097864 | [1] | SET OF MAIN BRGS -0.508 | TOR |
| 7. | 504388654 | [1] | | |
| 8. | 504014232 | [1] | SEAL | TOR |
| 9. | 504187305 | [1] | SHAFT SEAL | TOR |
