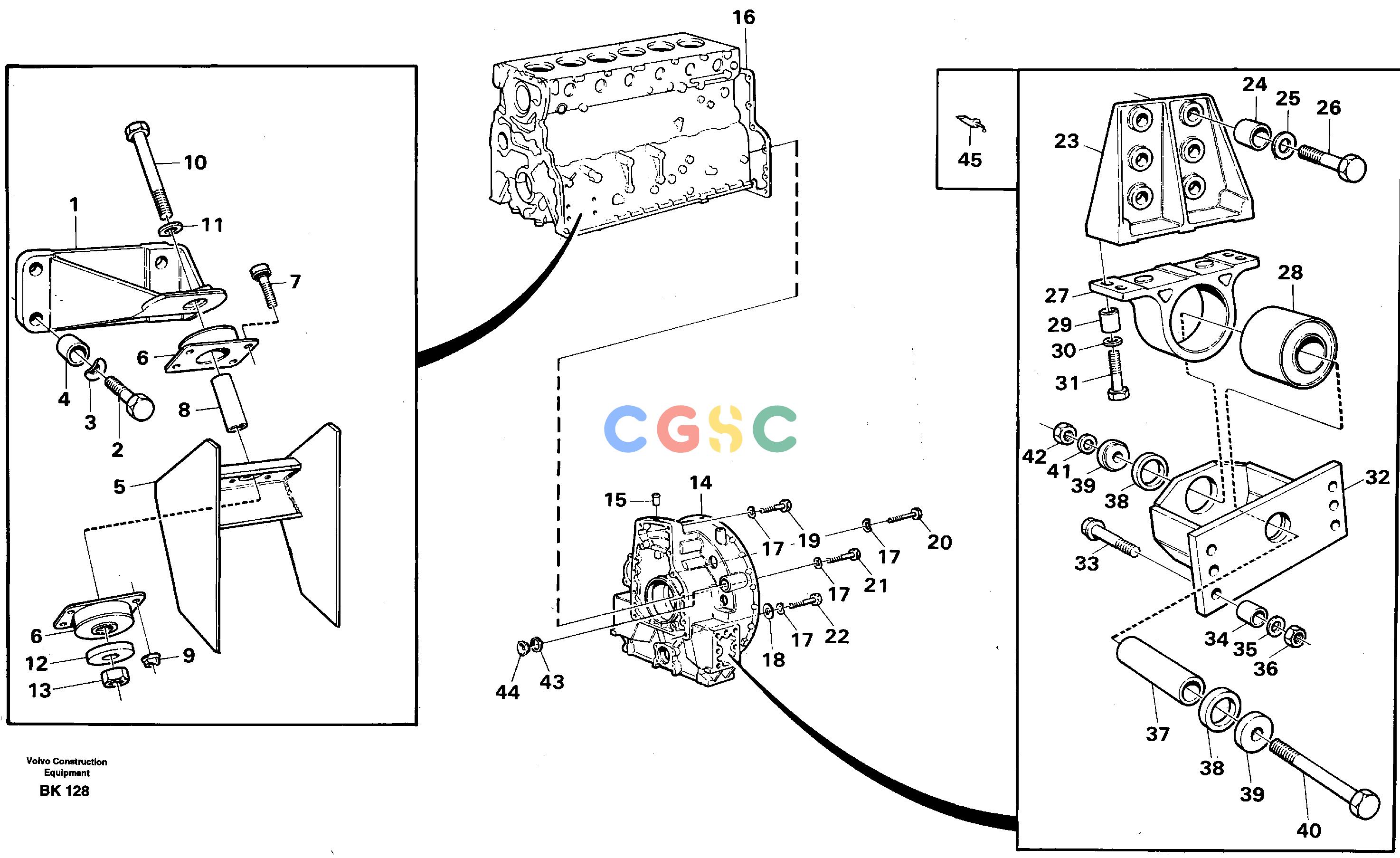

沃尔沃零件查询A35C VOLVO BM Engine support and flywheel housingVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE468317
|
[1] |
Engine anchorage
|
LH
|
| |
VOE468316
|
[1] |
Engine anchorage
|
RH
|
| 2. |
VOE955581
|
[8] |
Hexagon screw
|
|
| 3. |
VOE941911
|
[8] |
Spring washer
|
|
| 4. |
VOE4778392
|
[8] |
Spacer sleeve
|
|
| 5. |
|
[1] |
Engine mounting
|
LH
|
| |
|
[1] |
Engine mounting
|
RH
|
| |
VOE11049782
|
[4] |
Rubber cushion
|
|
| 6. |
VOE1623745
|
[4] |
Rubber cushion
|
|
| 7. |
VOE1273979
|
[8] |
Screw
|
|
| 8. |
VOE1501002
|
[2] |
Spacer sleeve
|
|
| 9. |
VOE13971098
|
[8] |
Flange nut
|
|
| 10. |
VOE13955378
|
[2] |
Screw
|
|
| 11. |
VOE13955900
|
[2] |
Washer
|
|
| 12. |
VOE4737225
|
[2] |
Plate
|
|
| 13. |
VOE945884
|
[2] |
Lock nut
|
|
| 14. |
|
[1] |
Flywheel housing
|
|
| 15. |
VOE17229696
|
[1] |
Pipe
|
|
| 16. |
VOE424621
|
[1] |
Gasket
|
|
| 17. |
VOE941911
|
[10] |
Spring washer
|
|
| 18. |
VOE1543563
|
[2] |
Washer
|
|
| 19. |
VOE955582
|
[2] |
Hexagon screw
|
L=70MM
|
| 20. |
VOE955580
|
[5] |
Hexagon screw
|
L=57MM
|
| 21. |
VOE959820
|
[3] |
Hexagon screw
|
L=140MM
|
| 22. |
VOE959824
|
[2] |
Hexagon screw
|
L=190MM
|
| 23. |
VOE4943522
|
[2] |
Bracket
|
|
| 24. |
VOE4943178
|
[12] |
Spacer ring
|
|
| 25. |
VOE13955900
|
[12] |
Washer
|
|
| 26. |
VOE955373
|
[12] |
Hexagon screw
|
|
| 27. |
VOE4823094
|
[2] |
Bracket
|
|
| 28. |
VOE4946937
|
[2] |
Rubber bushing
|
|
| 29. |
VOE4943382
|
[8] |
Spacer ring
|
|
| 30. |
VOE955899
|
[8] |
Plain washer
|
|
| 31. |
VOE13971001
|
[8] |
Hexagon screw
|
|
| 32. |
VOE11054896
|
[2] |
Engine anchorage
|
|
| 33. |
VOE965195
|
[12] |
Flange screw
|
|
| 34. |
VOE60113600
|
[12] |
Spacer sleeve
|
|
| 35. |
VOE60110353
|
[12] |
Washer
|
|
| 36. |
VOE13971084
|
[12] |
Lock nut
|
|
| 37. |
VOE4863147
|
[2] |
Tubular shaft
|
|
| 38. |
VOE4863148
|
[4] |
Guide sleeve
|
|
| 39. |
VOE4863149
|
[4] |
Washer
|
|
| 40. |
VOE13955382
|
[2] |
Screw
|
|
| 41. |
VOE13955900
|
[2] |
Washer
|
|
| 42. |
VOE945884
|
[2] |
Lock nut
|
|
| 43. |
VOE1556907
|
[1] |
Gasket
|
|
| 44. |
VOE467367
|
[1] |
Plug
|
|
| 45. |
VOE1161277
|
[REQ] |
Sealant
|
10 GRAM
|
