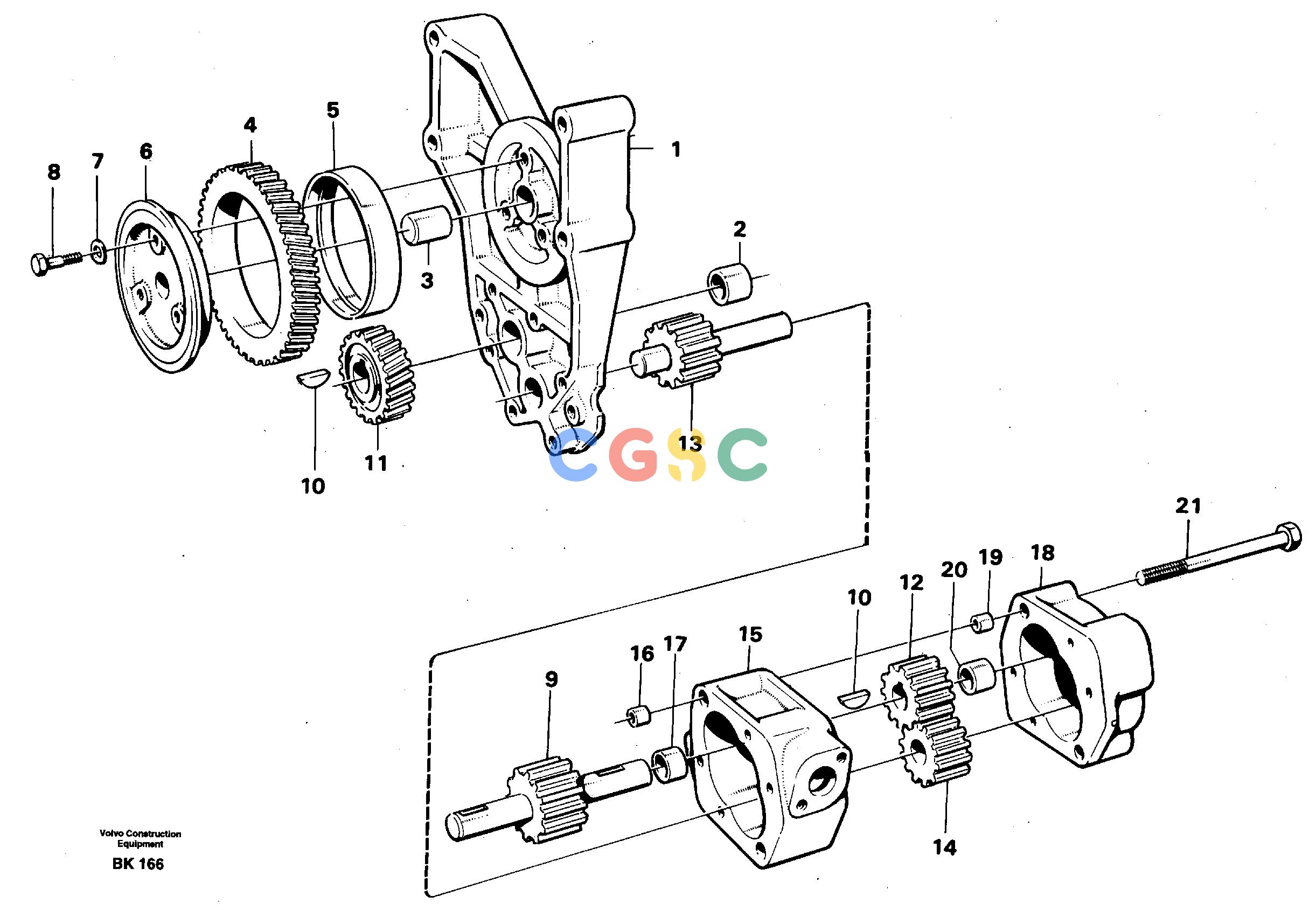

沃尔沃零件查询A35C VOLVO BM Oil pumpVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4778318
|
|
Oil pump
|
|
| 1. |
VOE470348
|
[1] |
Bracket
|
|
| 2. |
VOE470347
|
[2] |
Bushing
|
|
| 3. |
VOE191171
|
[1] |
Pin
|
|
| 4. |
VOE422047
|
[1] |
Idler gear
|
|
| 5. |
VOE422314
|
[1] |
Bushing
|
|
| 6. |
VOE422313
|
[1] |
Bearing sleeve
|
|
| 7. |
VOE13941907
|
[3] |
Washer
|
|
| 8. |
VOE940186
|
[3] |
Hexagon screw
|
|
| 9. |
VOE4778319
|
[1] |
Shaft
|
|
| 10. |
VOE910115
|
[3] |
Woodruff key
|
|
| 11. |
VOE470356
|
[1] |
Drive Gear
|
|
| 12. |
VOE4778435
|
[1] |
Gear
|
|
| 13. |
VOE4778325
|
[1] |
Shaft
|
|
| 14. |
VOE470353
|
[1] |
Pump rotor
|
|
| 15. |
VOE4778321
|
[1] |
Housing
|
|
| 16. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 17. |
VOE469681
|
[2] |
Bearing Bushing
|
|
| 18. |
VOE470344
|
[1] |
Oil pump housing
|
|
| 19. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 20. |
VOE470347
|
[2] |
Bushing
|
|
| 21. |
VOE944446
|
[2] |
Hexagon screw
|
|
| |
VOE11700221
|
[1] |
Overhaul kit
|
|
