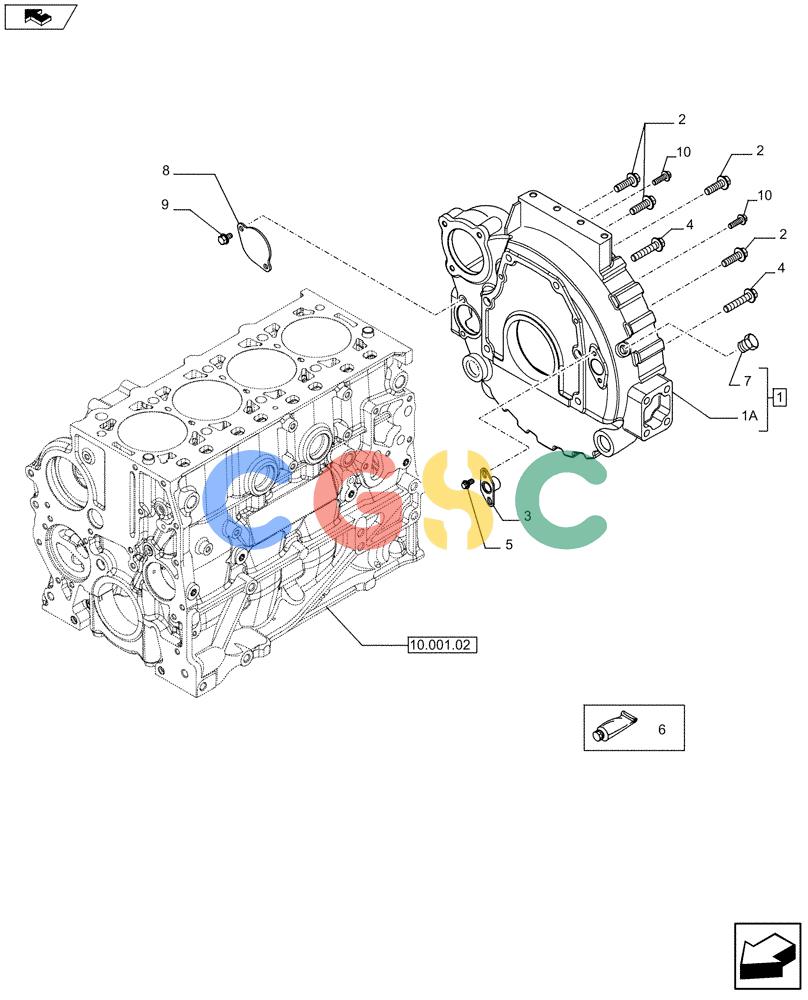

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.103.03) - FLYWHEEL CASE (504191985) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
308 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504326302 | [1] | HOUSING | TORASSY Contains Ref.1A, 7 |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 16678035 | [4] | BOLT | TOR |
| 3. | 504268669 | [1] | PLATE | TOR |
| 4. | 16678435 | [6] | BOLT | TORM12 x 60 mm |
| 5. | 504351177 | [2] | M8 x 1,25 | SCREW,M8 x 1.25 |
| 6. | 2995644 | [1] | SEALANT | TOR |
| 7. | 4741955 | [1] | PLUG | LEC |
| 8. | 4895155 | [1] | COVER | TOR |
| 9. | 2852323 | [2] | SCREW | TOR Superseded by part number: 16597925 |
| 10. | 16673735 | [2] | BOLT,Hex, M8 x 1.25 x 25mm | TOR Superseded by part number: 10278301 |
