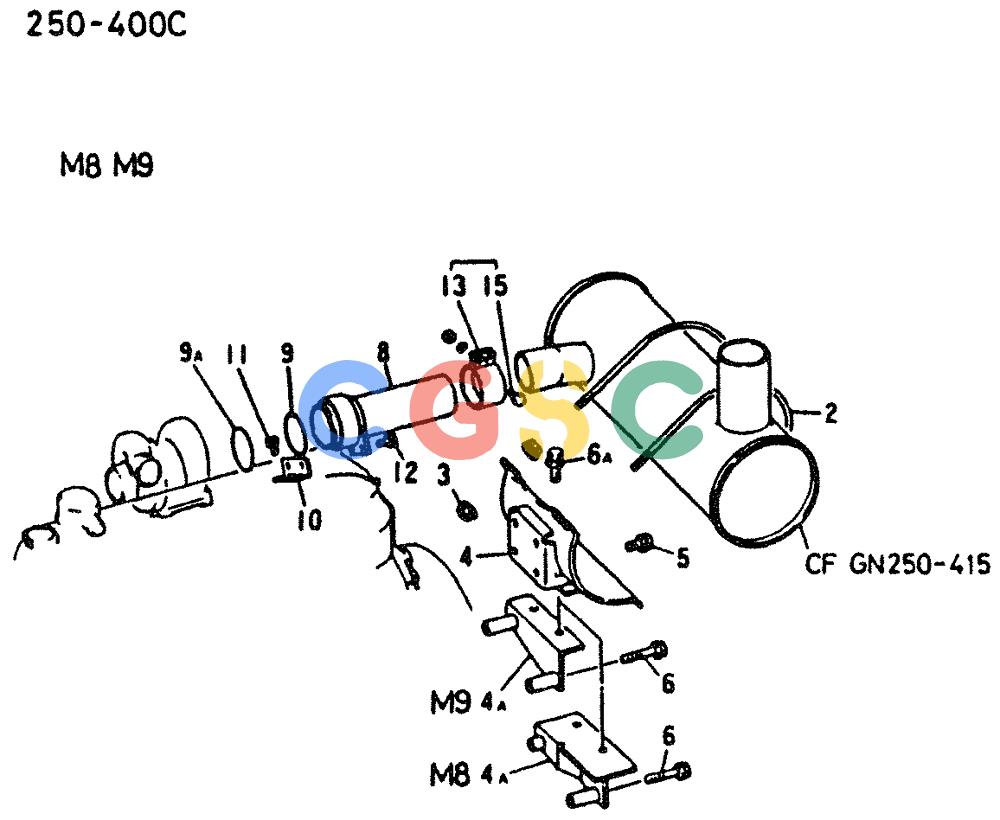

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (05-002) - EXHAUST PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
280 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | VAME039715 | [2] | U-BOLT | KOBU-BOLT |
| 3. | VAMF434104 | [8] | NUT | KOBNUT,FLANGE 8 |
| 4. | VAME037801 | [1] | BRACKET BRACKET,MUFFLER | BRACKET BRACKET,MUFFLER |
| 4A. | VAME037803 | [1] | BRACKET, SUPPORT SUPPORT,MUFFLER BRACKET,FOR M9 ONLY | BRACKET, SUPPORT SUPPORT,MUFFLER BRACKET,FOR M9 ONLY |
| . . | VAME070274 | [1] | FOR M8 ONLY | |
| 5. | VAMH000148 | [4] | SCREW | KOBBOLT,W/WSR 10X30 |
| 6. | VAMH000204 | [1] | BOLT | KOBBOLT,W/WSR 10X105 |
| . . | VAMF300857 | [1] | BOLT | KOBBOLT.W/WSR 10X80 ,FOR M8 ONLY |
| 6A. | VAMF244880 | [2] | SCREW | KOBBOLT.W/WSR 10X25 |
| 8. | VAME070503 | [1] | PIPE | KOBPIPE,EXH Superseded by part number: VAME078469 |
| 9. | VAME034997 | [1] | SEAL RETAINER | KOBRING,SEAL Superseded by part number: VAME170410 |
| 9A. | VAME034998 | [1] | PISTON RING SET | KOBRING,EXPANSION |
| 10. | VAME070508 | [1] | BRACKET | KOBBRACKET,EXH PIPE |
| 11. | VAMH000676 | [2] | SCREW | KOBBOLT 10X20 |
| 12. | VAMF140221 | [2] | BOLT | KOBBOLT,FLANGE BX12 |
| 13-15. | VAME068372 | [1] | CLAMP | KOBCLAMP ASSY |
| 13. | VAME068373 | [2] | CLAMP | KOBCLAMP Superseded by part number: VAME068372 |
| 15. | VAMF101314 | [2] | SCREW | KOBBOLT 12X35 Superseded by part number: VAF103512035 |
| . . | VAMS446185 | [2] | NUT | KOBNUT,FLANGE 12 |
