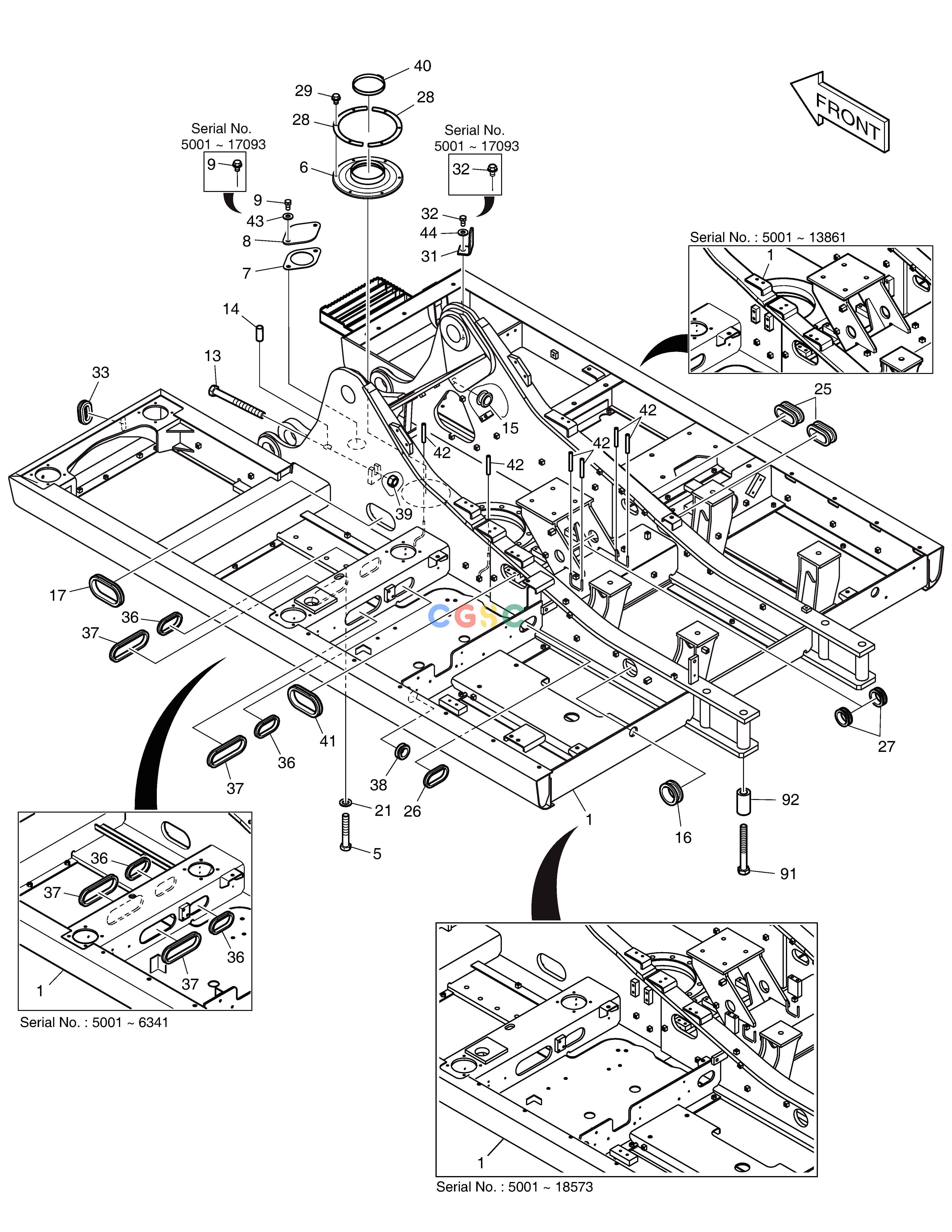

斗山零件查询MAIN FRAME DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045922C
|
[-] |
MAIN FRAME
|
|
| -. |
160620-00073
|
[-] |
|
|
| 1. |
160620-00074T
|
[1] |
|
|
| 1. |
160620-00074U
|
[1] |
|
|
| 1. |
160620-00074V
|
[1] |
|
|
| 1. |
160620-00074W
|
[1] |
|
|
| 1. |
K1045921C
|
[1] |
FRAME;MAIN
|
160620-00074
|
| 1. |
160620-00074
|
[1] |
|
160620-00074B
|
| 1. |
160620-00074B
|
[1] |
|
|
| 1. |
160620-00074E
|
[1] |
|
160620-00074G
|
| 1. |
160620-00074G
|
[1] |
|
160620-00074H
|
| 1. |
160620-00074H
|
[1] |
|
160620-00074K
|
| 1. |
160620-00074K
|
[1] |
|
160620-00074L
|
| 1. |
160620-00074L
|
[1] |
|
160620-00074M
|
| 1. |
160620-00074M
|
[1] |
|
|
| 1. |
160620-00074N
|
[1] |
|
160620-00074P
|
| 1. |
160620-00074P
|
[1] |
|
160620-00074R
|
| 1. |
160620-00074R
|
[1] |
|
|
| 1. |
160620-00074S
|
[1] |
|
|
| 13. |
S0572166
|
[1] |
BOLT
|
|
| 13. |
S0571866
|
[1] |
BOLT M20X2.5X170
|
|
| 14. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
| 15. |
2160-1004D48
|
[1] |
BUSHING;RUBBER
|
|
| 16. |
2160-1004D39
|
[1] |
BUSHING;RUBBER
|
|
| 17. |
2160-1201D11
|
[1] |
BUSHING;RUBBER
|
|
| 21. |
2114-9012A
|
[36] |
WASHER
|
|
| 25. |
2160-1201D13
|
[2] |
BUSHING;RUBBER
|
|
| 26. |
2160-1201D12
|
[1] |
BUSHING,RUBBER
|
|
| 27. |
2160-1004D55
|
[2] |
BUSHING;RUBBER
|
|
| 28. |
191-02990C
|
[2] |
PLATE
|
|
| 29. |
K1049858
|
[6] |
BOLT
|
|
| 31. |
195-02623B
|
[1] |
BRACKET
|
|
| 32. |
S0515066
|
[1] |
BOLT
|
|
| 32. |
DS0025015
|
[1] |
BOLT
|
|
| 33. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 36. |
DS7601020
|
[2] |
BUSHING,RUBBER
|
|
| 36. |
DS7601027
|
[2] |
BUSHING,RUBBER
|
|
| 37. |
DS7601021
|
[2] |
BUSHING;RUBBER
|
|
| 37. |
DS7601028
|
[2] |
BUSHING;RUBBER
|
|
| 38. |
2160-1004D31
|
[1] |
BUSHING;RUBBER
|
|
| 39. |
S4013133
|
[1] |
NUT
|
|
| 40. |
S8470165
|
[1] |
CLAMP
|
|
| 41. |
DS7601046
|
[1] |
BUSHING;RUBBER
|
|
| 42. |
DS2081053
|
[6] |
HOSE
|
|
| 43. |
120804-00078
|
[2] |
WASHER
|
|
| 44. |
120804-00079
|
[1] |
WASHER
|
|
| 5. |
S0571266
|
[36] |
BOLT
|
|
| 6. |
160-00068A
|
[1] |
COVER,RUBBER
|
|
| 7. |
180-00463
|
[1] |
PACKING
|
|
| 8. |
621-02938B
|
[1] |
COVER
|
|
| 9. |
DS0025023
|
[2] |
BOLT
|
|
| 9. |
S0512066
|
[2] |
. BOLT
|
|
| 91. |
2120-2137A
|
[4] |
BOLT
|
|
| 92. |
2114-1817
|
[4] |
SPACER
|
|
