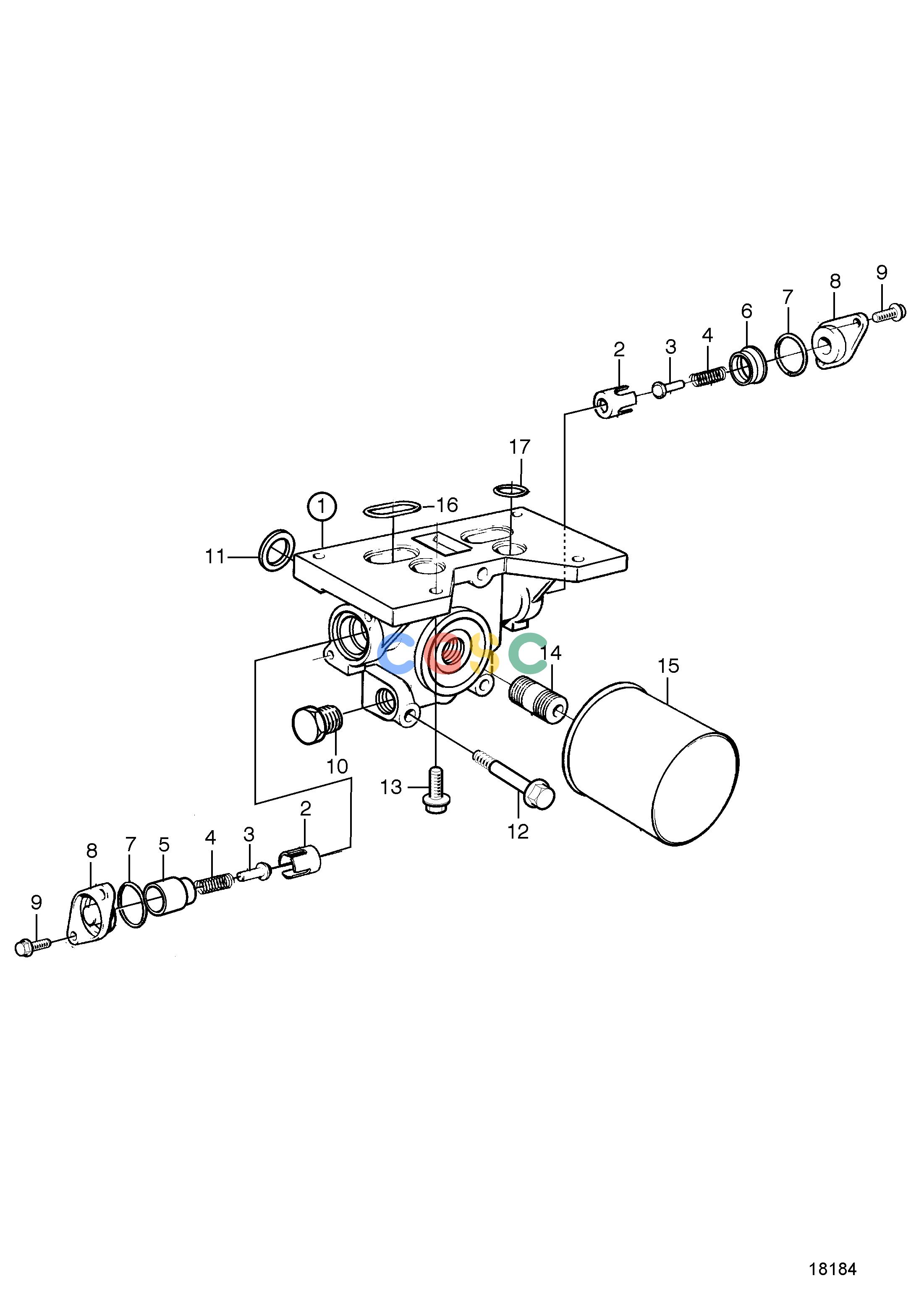

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ALubricating SystemOil Filter HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581943
|
[1] |
Oil filter housing
|
|
| 2. |
1542265
|
[2] |
Valve seat
|
|
| 3. |
471085
|
[2] |
Valve cone
|
|
| 4. |
468087
|
[2] |
Spring
|
|
| 5. |
3581951
|
[1] |
Sleeve
|
|
| 6. |
3581950
|
[1] |
Sleeve
|
|
| 7. |
949659
|
[2] |
O-ring
|
|
| 8. |
1542267
|
[2] |
Cover
|
|
| 9. |
946544
|
[4] |
Flange screw
|
|
| 10. |
479977
|
[1] |
Plug
|
|
| 11. |
469483
|
[4] |
Sealing ring
|
|
| 12. |
965182
|
[3] |
Flange screw
|
|
| 13. |
946671
|
[4] |
Flange screw
|
|
| 14. |
846015
|
[1] |
Nipple
|
|
| 15. |
3517857
|
[1] |
Oil filter
|
|
| 16. |
859086
|
[2] |
Sealing ring
|
|
| 17. |
469483
|
[2] |
Sealing ring
|
|
