神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (05-005) - EXHAUST BRAKE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
325 次

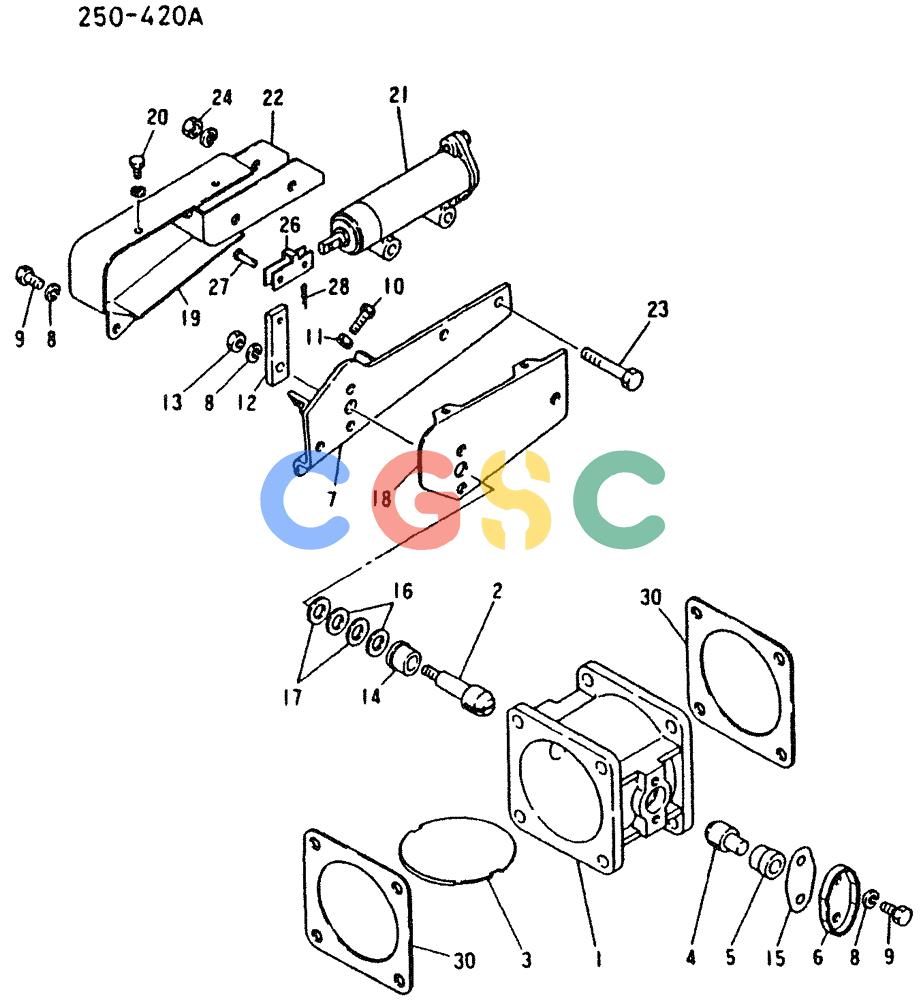

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-28. | VAME053880 | [1] | EXHAUST BRAKE ASS (JKC 28600513) | |
| 1-17. | VAME721651 | [1] | EXHAUST BRAKE VALVE ASSY | |
| 1. | VAME721618 | [1] | BODY | |
| 2. | VAHE721637 | [1] | SPINDLE | |
| 3. | VAME707128 | [1] | VALVE | |
| 4. | VAME706860 | [1] | SPINDLE | |
| 5. | VAME721517 | [1] | BUSHING | |
| 6. | VA3123356200 | [1] | COVER | KOBCOVER Superseded by part number: VA28120513 |
| 7. | VAME706498 | [1] | PLATE.STOPPER | |
| 8. | VAMF450405 | [6] | WASHER | KOBWASHER,SPG 8 Superseded by part number: 132502A1 |
| 9. | VAME706031 | [5] | BOLT | |
| 10. | VA3123356500 | [2] | SCREW | KOBBOLT Superseded by part number: VA11000675 |
| 11. | VAMF43004 | [2] | NUT | |
| 12. | VA3123356400 | [1] | LEVER | |
| 13. | VAMF430725 | [1] | NUT | KOBNUT B |
| 14. | VAME721516 | [1] | BUSHING | |
| 15. | VA3123356800 | [1] | GASKET | KOBGASKET Superseded by part number: VA28120900 |
| 16. | VAME721318 | [2] | SEAL,RING | |
| 17. | VA3092331900 | [2] | SEAL,RING | |
| 18. | VAME063082 | [1] | PLATE | |
| 19. | VAME063084 | [1] | COVER | |
| 20. | VA4451741154 | [2] | BOLT | |
| . . | VAMF450404 | [2] | WASHER | KOBWASHER,SPG Superseded by part number: 132427A1 |
| 21. | VAME053885 | [1] | LINER, ENGINE CYLIND | KOBCONTROL CYLINDER (CF GN250-422A) Superseded by part number: VAME053895 |
| 22. | VAME063083 | [1] | INSULATOR | |
| 23. | VAMF100095 | [1] | BOLT 10X60 | |
| 24. | VAMC821438 | [2] | NUT | |
| 25. | VAMF450406 | [2] | WASHER | KOBWASHER,SPG 10 |
| 26. | VAME706604 | [1] | CLEVIS | |
| 17. | VAME706605 | [2] | PIN | |
| 28. | VAME706285 | [2] | PIN,SNAP | |
| 30. | VAME063680 | [2] | GASKET | KOBGASKET |
