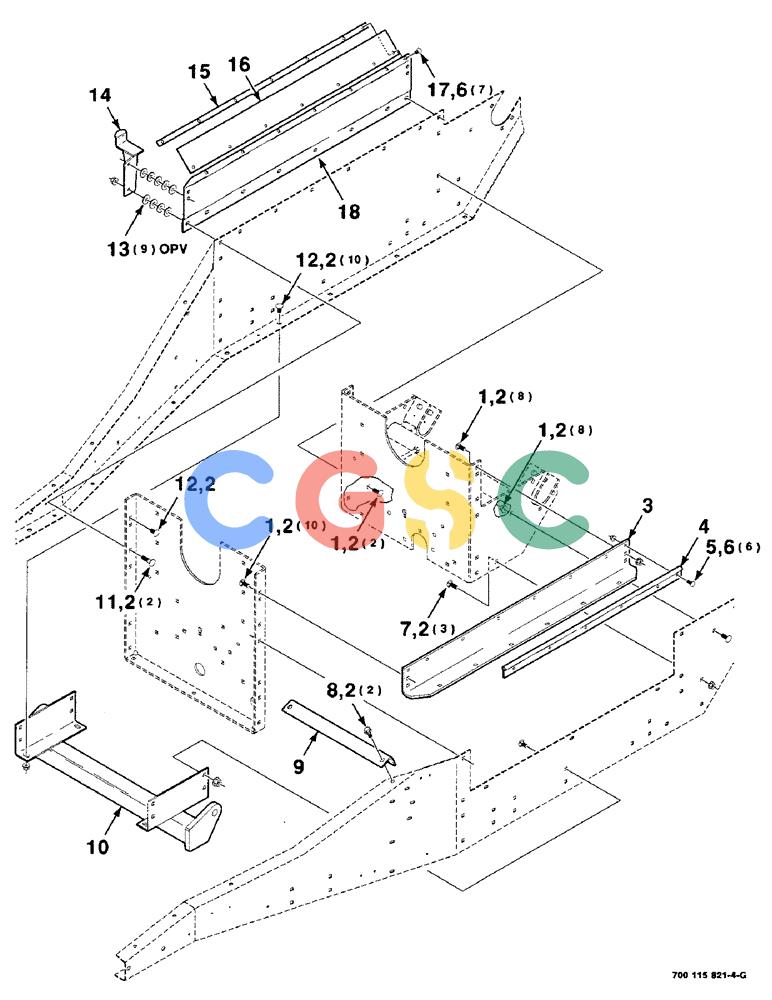

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (7-04) - MAINFRAME ROTOR HOUSING ASSEMBLY, SERIAL NUMBER CFH0096412 AND LATER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-820
|
[28] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 2. |
231-5348
|
[46] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 3. |
700117365
|
[1] |
ANGLE
|
HFI
- left
|
| 4. |
700117611
|
[1] |
FILLER
|
HFI
- rotor, left
|
| 5. |
434-616
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 6. |
232-5316
|
[13] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 7. |
433-824
|
[3] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 8. |
360-816
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 8
|
CAS
1/2-13 X 1 HFS GR8 Superseded by part number: 87034823
|
| 9. |
700117367
|
[1] |
ANGLE
|
HFI
- reinforcement
|
| 10. |
700108851
|
[1] |
WASHER
|
HFI
ANCHOR WA - cylinder
|
| 11. |
433-832
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
CAS
1/2-13 X 2 RHSNB Superseded by part number: 280185
|
| 12. |
433-816
|
[11] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 13. |
700711557
|
[9] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 14. |
700117343
|
[1] |
SUPPORT
|
HFI
- right
|
| 15. |
700117506
|
[1] |
STRAP
|
HFI
- support
|
| 16. |
700117375
|
[1] |
FILLER
|
HFI
- rotor, right
|
| 17. |
433-612
|
[7] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 18. |
700117364
|
[1] |
SUPPORT
|
HFI
- pan, right
|
