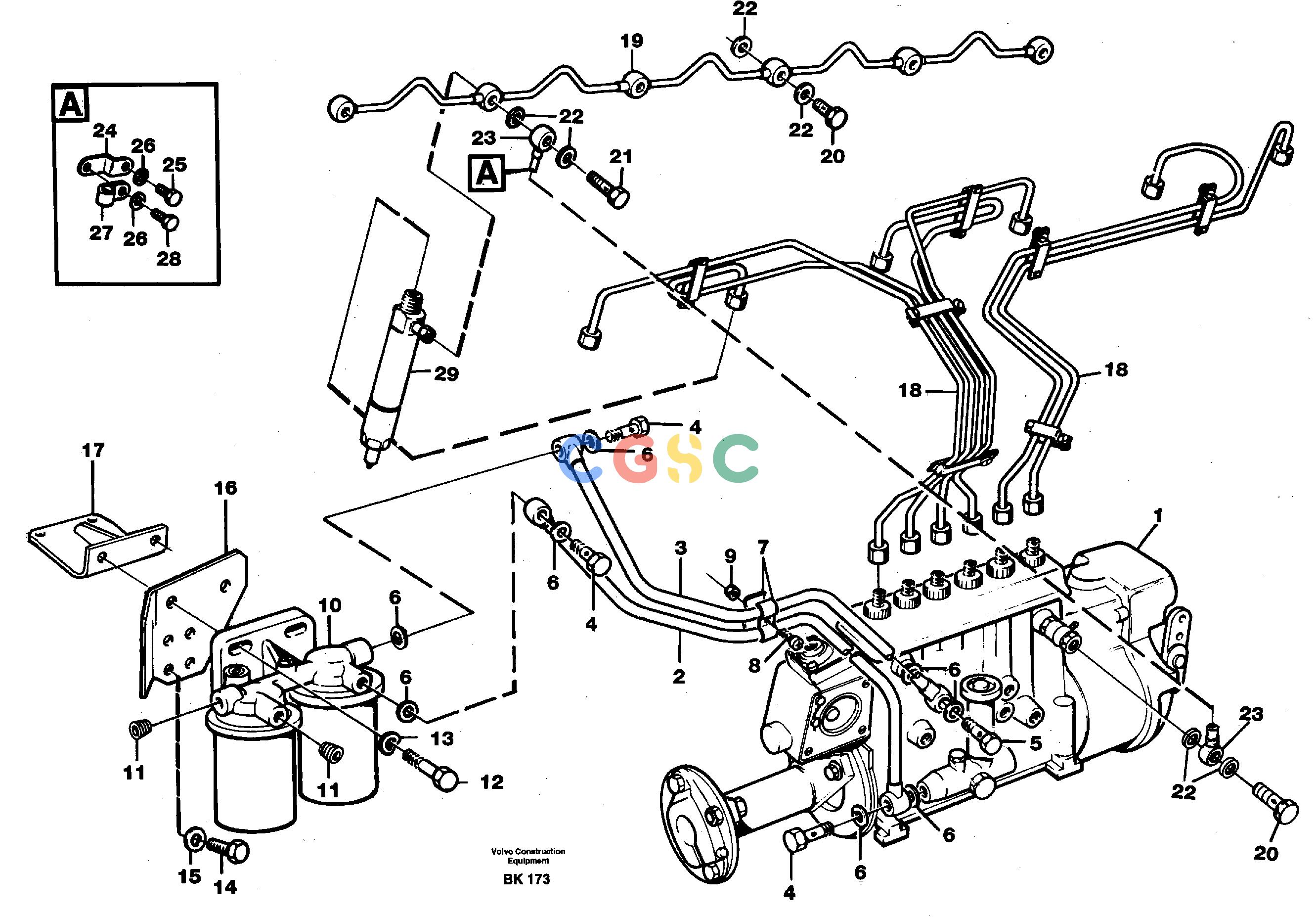

沃尔沃零件查询A35C VOLVO BM Fuel pipes, fuel injec. pump-fuel filter,-leak-off lineVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injcection pump
|
|
| 2. |
VOE11031555
|
[1] |
Fuel pipe
|
|
| 3. |
VOE11031782
|
[1] |
Fuel pipe
|
|
| 4. |
VOE60113509
|
[3] |
Hollow screw
|
|
| 5. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 6. |
VOE13969011
|
[8] |
Gasket
|
|
| 7. |
VOE404279
|
[2] |
Clamp
|
|
| 8. |
VOE950047
|
[1] |
Cross recessed screw
|
|
| 9. |
VOE955825
|
[1] |
Hexagon nut
|
|
| 10. |
|
[1] |
Fuel filter
|
|
| 11. |
VOE13968062
|
[3] |
Plug
|
|
| 12. |
VOE13970950
|
[2] |
Hexagon screw
|
|
| 13. |
VOE13960143
|
[2] |
Washer
|
|
| 14. |
VOE13940114
|
[2] |
Screw
|
|
| 15. |
VOE13942336
|
[2] |
Spring washer
|
|
| 16. |
VOE4778451
|
[1] |
Bracket
|
|
| 17. |
VOE11031704
|
[1] |
Bracket
|
|
| 18. |
|
[6] |
Delivery pipe
|
|
| 19. |
VOE822564
|
[1] |
Leak-off pipe
|
|
| 20. |
VOE7074033
|
[6] |
Hollow screw
|
|
| 21. |
VOE7074034
|
[1] |
Hollow screw
|
|
| 22. |
VOE947620
|
[15] |
Gasket
|
|
| 23. |
VOE478699
|
[1] |
Leak-off pipe
|
|
| 24. |
VOE465584
|
[1] |
Bracket
|
|
| 25. |
VOE940100
|
[1] |
Hexagon screw
|
|
| 26. |
VOE13941906
|
[2] |
Washer
|
|
| 27. |
VOE7121563
|
[1] |
Clamp
|
|
| 28. |
VOE950044
|
[1] |
Cross recessed screw
|
|
| 29. |
|
[6] |
Injector
|
|
