纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.206.01) - FUEL FILTER (504389026) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
730 次

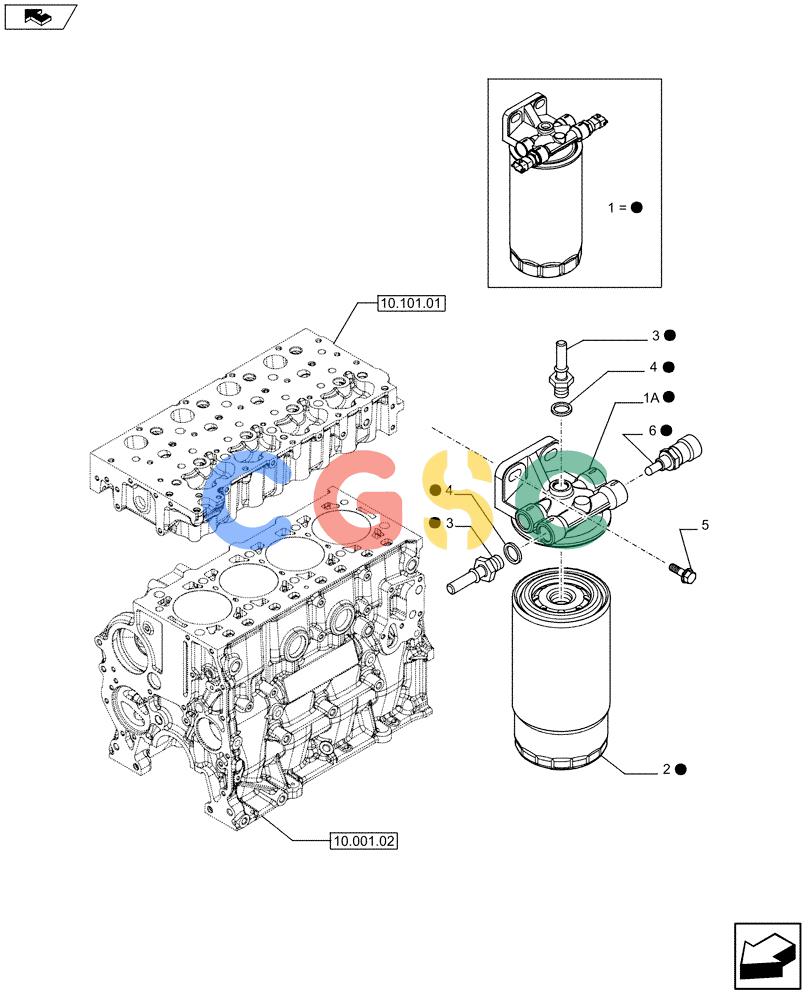

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801477166 | [1] | FUEL FILTER | TORASSY Contains Ref.1A, 2, 3, 4, 6. |
| 2. | 84534796 | [1] | ELEMENT,95.6mm OD x 191mm L, M20 x 1.5 | WIC |
| 3. | 504377530 | [2] | UNION | TOR |
| 4. | 4894721 | [2] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
| 5. | 16586825 | [2] | BOLT,Hex, M8 x 1.25 x 45mm | TOR |
| 6. | 82017881 | [1] | SENSOR | BASCoolant Temp Semsor Superseded by part number: 500382599 |
