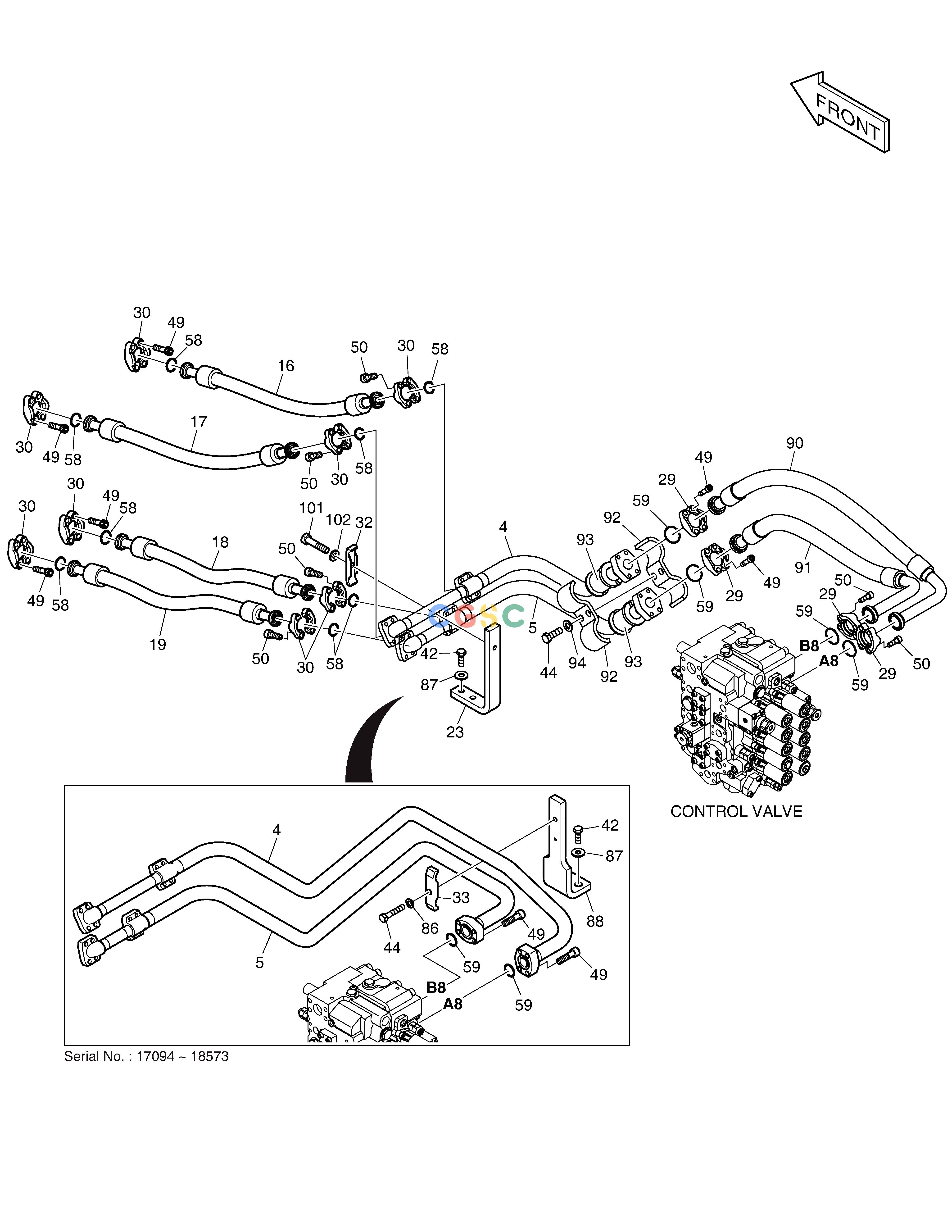

斗山零件查询MAIN PIPING(2) - BOOM DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
746 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13878
|
[-] |
|
|
| 101. |
S0560866
|
[1] |
BOLT
|
|
| 102. |
S5102703
|
[1] |
WASHER
|
|
| 16. |
DS2038222
|
[1] |
HOSE
|
|
| 17. |
DS2038222
|
[1] |
HOSE
|
|
| 18. |
DS2038144
|
[1] |
HOSE
|
|
| 19. |
DS2038144
|
[1] |
HOSE
|
|
| 23. |
195-02883B
|
[1] |
PLATE
|
|
| 29. |
DS2038144
|
[8] |
HOSE
|
|
| 30. |
2181-9079
|
[16] |
FLANGE
|
|
| 32. |
2124-1025D6
|
[1] |
CLAMP
|
|
| 33. |
2124-1025D5
|
[1] |
CLAMP;PIPE
|
|
| 4. |
140-01601C
|
[1] |
PIPE;BOOM UP
|
|
| 4. |
420207-04123
|
[1] |
|
|
| 42. |
S0515366
|
[2] |
BOLT
|
|
| 42. |
S0515366
|
[4] |
BOLT
|
|
| 44. |
S0561066
|
[1] |
BOLT
|
|
| 44. |
S0562866
|
[2] |
BOLT M14X2.0X45
|
|
| 49. |
S2212466
|
[24] |
BOLT
|
|
| 5. |
140-01602C
|
[1] |
PIPE;BOOM DOWN
|
|
| 5. |
420207-04124
|
[1] |
|
|
| 50. |
S2212266
|
[24] |
BOLT
|
|
| 50. |
S2212266
|
[16] |
BOLT
|
|
| 58. |
2180-1026D2
|
[8] |
O-RING
|
|
| 59. |
2180-1026D19
|
[4] |
O-RING
|
|
| 59. |
2180-1026D19
|
[2] |
O-RING
|
|
| 86. |
120804-00077
|
[1] |
WASHER
|
|
| 87. |
120804-00079
|
[2] |
WASHER
|
|
| 87. |
120804-00079
|
[4] |
WASHER
|
|
| 88. |
195-02884B
|
[1] |
PLATE
|
|
| 90. |
DS20401551
|
[1] |
|
|
| 91. |
DS20401550
|
[1] |
|
|
| 92. |
120208-00410
|
[2] |
|
|
| 93. |
180308-00235
|
[2] |
|
|
| 94. |
120804-00080
|
[2] |
WASHER
|
|
