沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AMiscellaneous EquipmentUniversal BracketEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
678 次

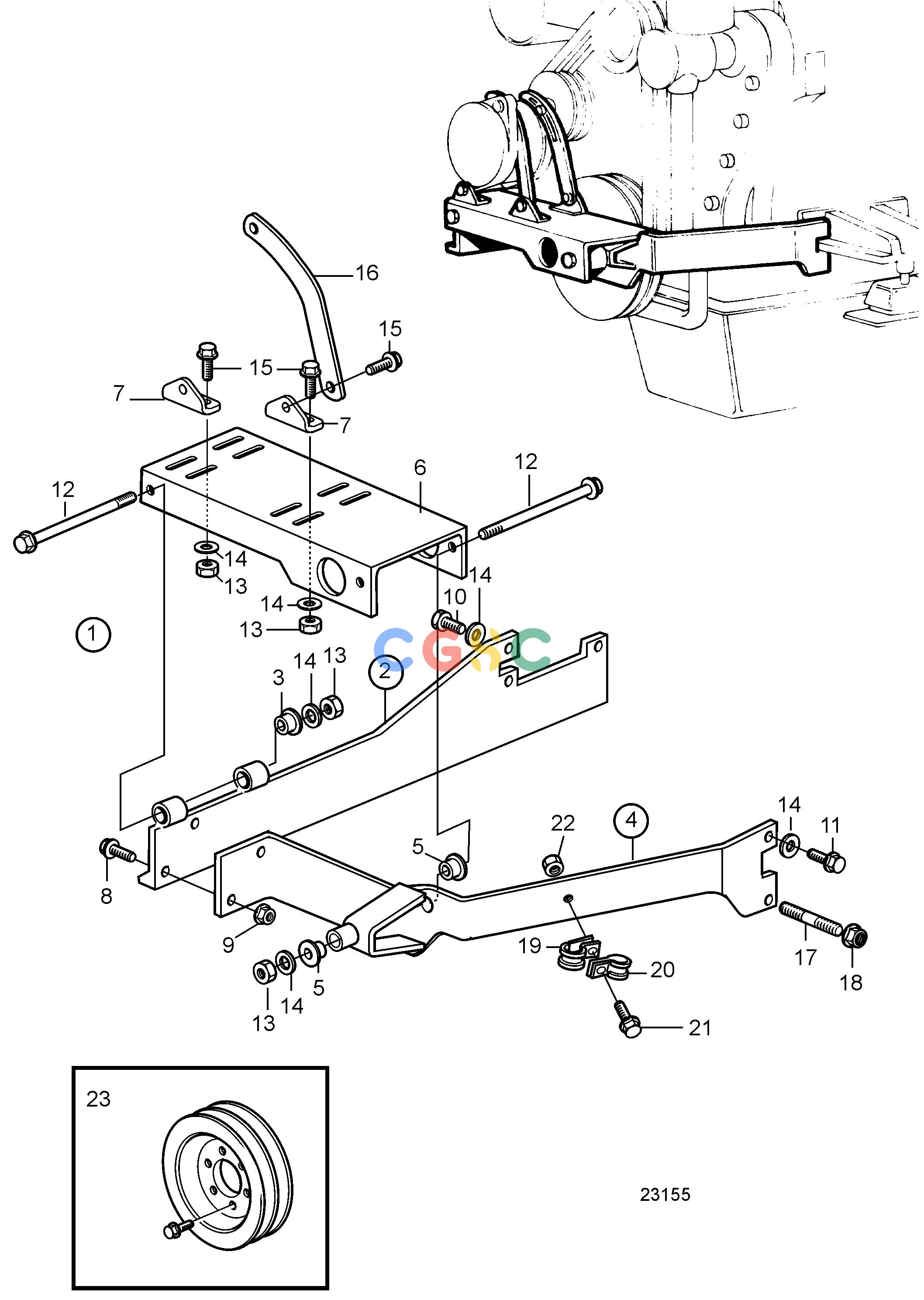

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861369
|
[1] |
Kit
|
|
| 2. |
861484
|
[1] |
Bracket
|
|
| 3. |
463909
|
[2] |
Rubber bushing
|
|
| 4. |
861485
|
[1] |
Bracket
|
|
| 5. |
463909
|
[2] |
Rubber bushing
|
|
| 6. |
858175
|
[1] |
Plate
|
|
| 7. |
858177
|
[4] |
Bracket
|
|
| 8. |
946472
|
[2] |
Flange screw
|
|
| 9. |
971098
|
[2] |
Flange lock nut
|
|
| 10. |
970983
|
[3] |
Hexagon screw
|
|
| 11. |
965227
|
[1] |
Flange screw
|
|
| 12. |
973924
|
[4] |
Flange screw
|
|
| 13. |
945408
|
[14] |
Flange nut
|
|
| 14. |
976944
|
[12] |
Washer
|
|
| 15. |
946173
|
[10] |
Flange screw
|
|
| 16. |
845021
|
[2] |
Tensioner
|
|
| 17. |
924102
|
[1] |
Stud
|
|
| 18. |
971096
|
[1] |
Flange nut
|
|
| 19. |
949850
|
[1] |
Clamp
|
D=35mm
|
| 20. |
967645
|
[1] |
Clamp
|
D=41mm
|
| 21. |
947542
|
[1] |
Flange screw
|
|
| 22. |
949278
|
[1] |
Flange lock nut
|
|
| 23. |
7742700_026
|
|
Pulley
|
|
| 23. |
7742700_027
|
|
Pulley
|
|
