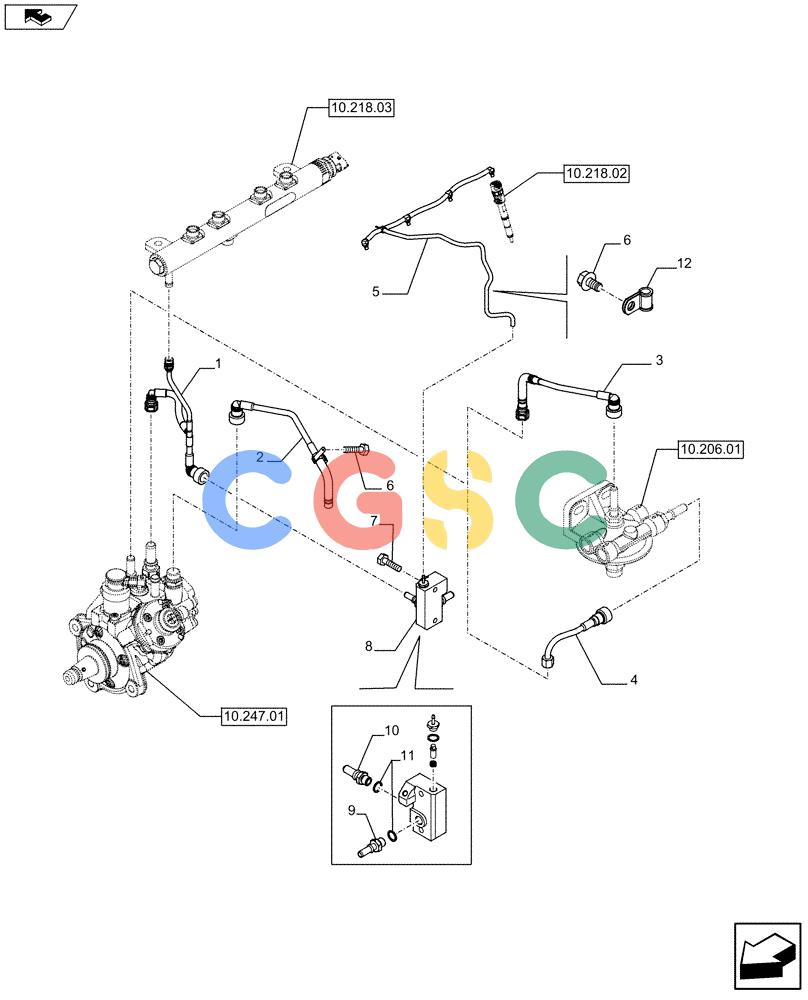

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.218.01) - PIPING - FUEL (504388936) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504387881 | [1] | FUEL TUBE | TORASSY |
| 2. | 5801366017 | [1] | RETURN PIPE | TOR |
| 3. | 5801482072 | [1] | FUEL TUBE | TOR |
| 4. | 504388114 | [1] | FUEL TUBE | TOR |
| 5. | 5801475101 | [1] | FUEL TUBE | TOR |
| 6. | 2852323 | [2] | SCREW | TOR Superseded by part number: 16597925 |
| 7. | 16586725 | [2] | BOLT,Hex, M8 x 1.25 x 40mm | TOR |
| 8. | 5801475104 | [1] | DISTRIBUTOR | TOR |
| 9. | 504387878 | [1] | UNION | TOR |
| 10. | 504381196 | [1] | UNION | TOR Superseded by part number: 5801518619 |
| 11. | 4858608 | [2] | SEAL,14mm ID x 19.50mm OD x 1.50mm Thk | TTF Superseded by part number: 2852356 |
| 12. | 17316290 | [1] | MOUNTING CLIP | TOR |
