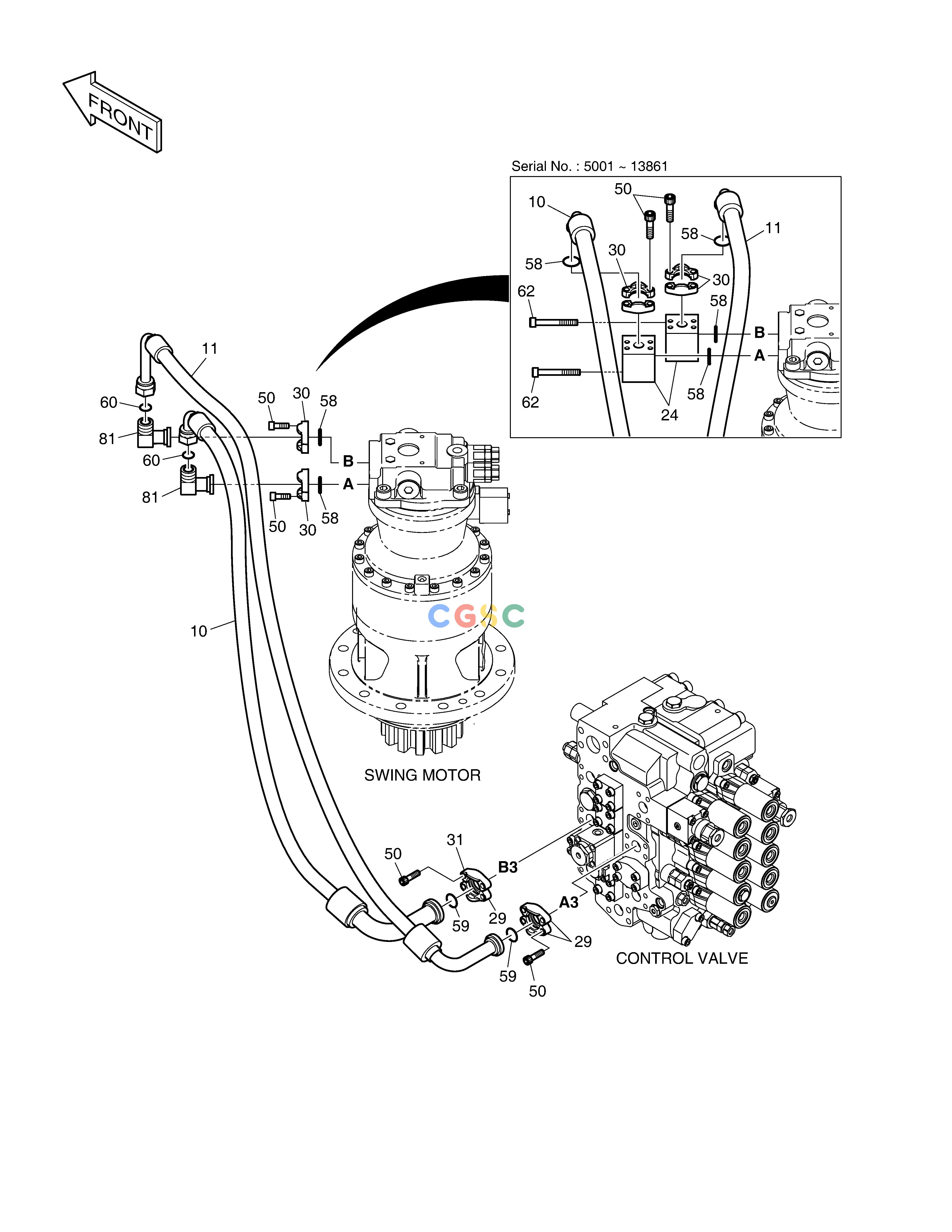

斗山零件查询MAIN PIPING(4) - SWING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044586B
|
[-] |
MAIN PIPING(1)
|
|
| -. |
420212-00576
|
[-] |
|
|
| 10. |
DS2045337
|
[1] |
HOSE
|
|
| 10. |
DS2026420
|
[1] |
|
|
| 11. |
DS2045338
|
[1] |
HOSE
|
|
| 11. |
DS2026421
|
[1] |
|
|
| 24. |
423-00202
|
[2] |
BLOCK
|
|
| 29. |
2181-9078
|
[3] |
FLANGE;SPLIT
|
|
| 30. |
2181-9079
|
[4] |
FLANGE
|
|
| 31. |
2181-9083
|
[1] |
FLANGE;SPLIT
|
|
| 50. |
S2212266
|
[16] |
BOLT
|
|
| 58. |
2180-1026D2
|
[4] |
O-RING
|
|
| 58. |
2180-1026D2
|
[2] |
O-RING
|
|
| 59. |
2180-1026D19
|
[2] |
O-RING
|
|
| 60. |
S8030121
|
[2] |
O-RING
|
|
| 62. |
S2213166
|
[8] |
BOLT;SOCKET
|
|
| 81. |
DS2510007
|
[2] |
|
|
