纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.250.01) - TURBOCHARGING (5801511064) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
380 次

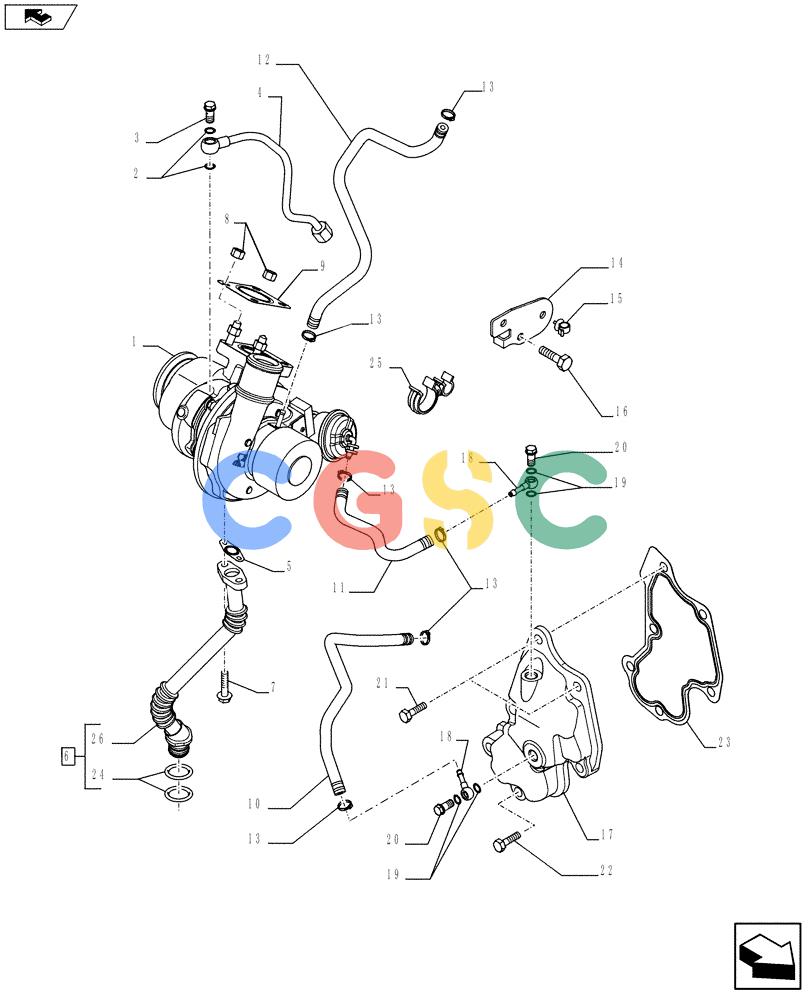

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801520045 | [1] | TURBOCHARGER | TOR |
| 1. | 5801520045R | [1] | REMAN-TURBOCHARGER | TOR |
| 1. | 5801520045C | [1] | CORE-TURBOCHARGER | TORReturn Number |
| 2. | 10261060 | [2] | SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk | BAS |
| 3. | 16511214 | [1] | | HYD CONNECTOR,M12 x 1.5 x 30mm |
| 4. | 5801491614 | [1] | PIPE | TOR Superseded by part number: 5801723611, 5801725687, 4858608, 504077652, 5801720267 |
| 5. | 504377006 | [1] | GASKET | TOR |
| 6. | 5801509000 | [1] | PIPE | TORASSY |
| 7. | 18137825 | [2] | BOLT,Hex, M6 x 16mm | TOR |
| 8. | 500322677 | [2] | NUT,M8 | LECFLANGE NUT |
| 9. | 4899343 | [1] | GASKET,0.45mm Thk | TOR |
| 10. | 5801509002 | [1] | TUBE | TOR |
| 11. | 5801509001 | [1] | TUBE | TOR |
| 12. | 5801404365 | [1] | TUBE | TOR |
| 13. | 18199070 | [6] | MOUNTING CLIP | TOR |
| 14. | 5801509009 | [1] | BRACKET, SUPPORTING | TORASSY |
| 15. | 504000060 | [2] | COLLAR | TOR |
| 16. | 2854311 | [1] | SCREW | TOR |
| 17. | 5801509090 | [1] | COVER | TOR Superseded by part number: |
| 18. | 5801509102 | [2] | FITTING | TOR |
| 19. | 98474303 | [4] | WASHER,8mm ID x 14mm OD x 2.3mm Thk | TOR |
| 20. | 4864078 | [2] | BANJO BOLT,M8 x 1.25 | TOR |
| 21. | 16978124 | [2] | BOLT,Hex, M6 x 14mm | TOR |
| 22. | 2854083 | [4] | BOLT,Flng, M6 x 1 x 30mm | TOR Superseded by part number: 16586025 |
| 23. | 5801509267 | [1] | CYLINDER HEAD GASKET | TOR |
| 24. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 25. | 5801425138 | [1] | CLAMP | TOR |
| 26. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
