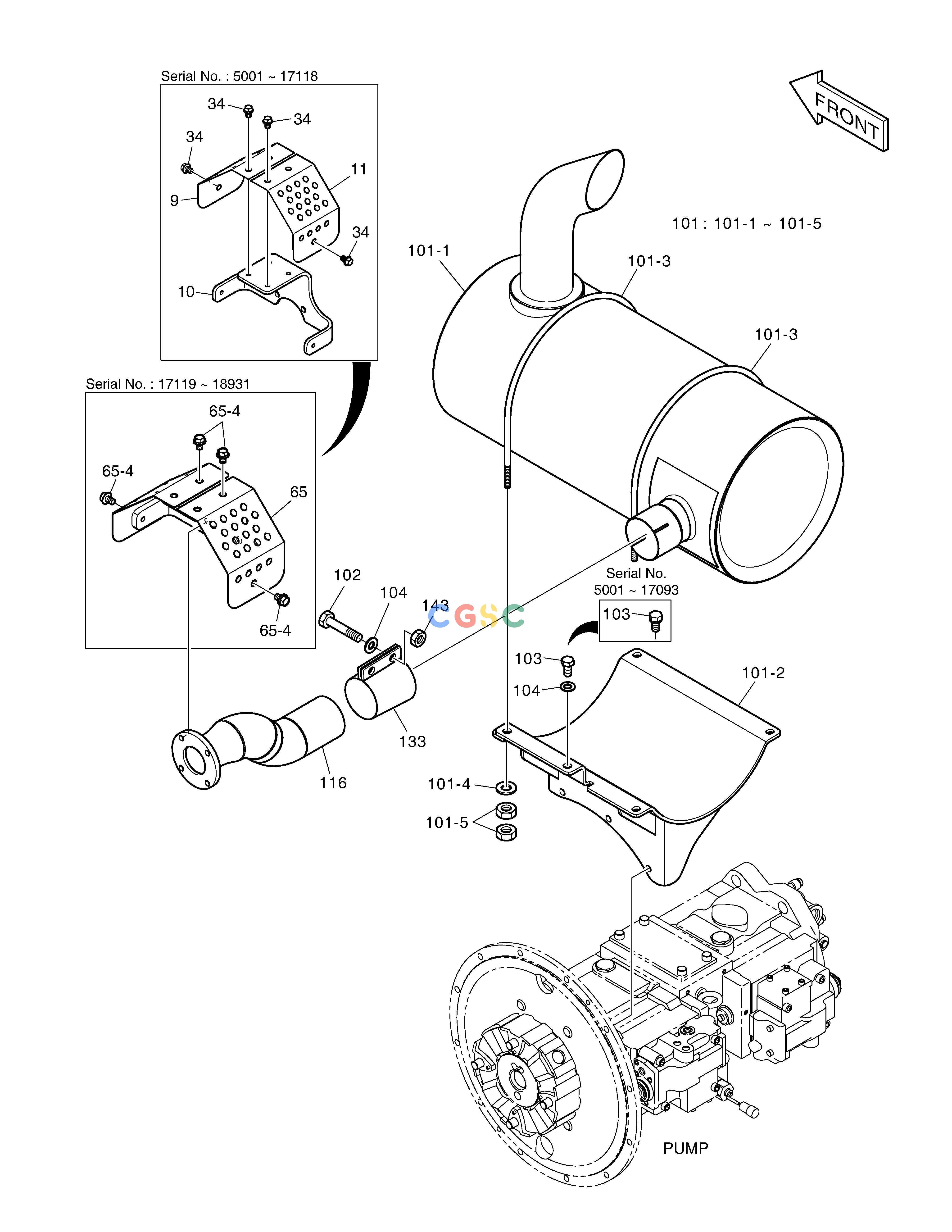

斗山零件查询MUFFLER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045986A
|
[-] |
ENGINE ASS'Y
|
|
| -. |
150109-00018
|
[-] |
|
|
| 10. |
K1016432
|
[1] |
BRACKET
|
|
| 101. |
K1045984
|
[1] |
MUFFLER SUB ASS'Y
|
240103-00646
|
| 101. |
240103-00646
|
[1] |
|
240103-00646A
|
| 101. |
240103-00646A
|
[1] |
|
|
| 101-1. |
K1012192B
|
[1] |
MUFFLER
|
|
| 101-2. |
K1045901
|
[1] |
BRACKET
|
|
| 101-3. |
K1039117A
|
[2] |
U-BOLT
|
|
| 101-4. |
S5010613
|
[4] |
WASHER
|
|
| 101-4. |
120804-00076
|
[4] |
WASHER
|
|
| 101-5. |
S4012633
|
[8] |
NUT
|
|
| 102. |
S0515866
|
[2] |
BOLT
|
|
| 103. |
DS0025021
|
[2] |
BOLT
|
|
| 103. |
S0515066
|
[2] |
BOLT
|
|
| 104. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 104. |
120804-00077
|
[4] |
WASHER
|
|
| 11. |
K1016430
|
[1] |
COVER
|
|
| 116. |
K1045900
|
[1] |
PIPE;EXHAUST
|
|
| 133. |
124-00310A
|
[1] |
CLAMP
|
|
| 143. |
S4012733
|
[2] |
NUT
|
|
| 34. |
K1001029
|
[6] |
BOLT
|
|
| 65. |
110506-00325
|
[1] |
|
|
| 65-4. |
K1001029
|
[6] |
BOLT
|
|
| 9. |
K1006245
|
[1] |
COVER
|
|
