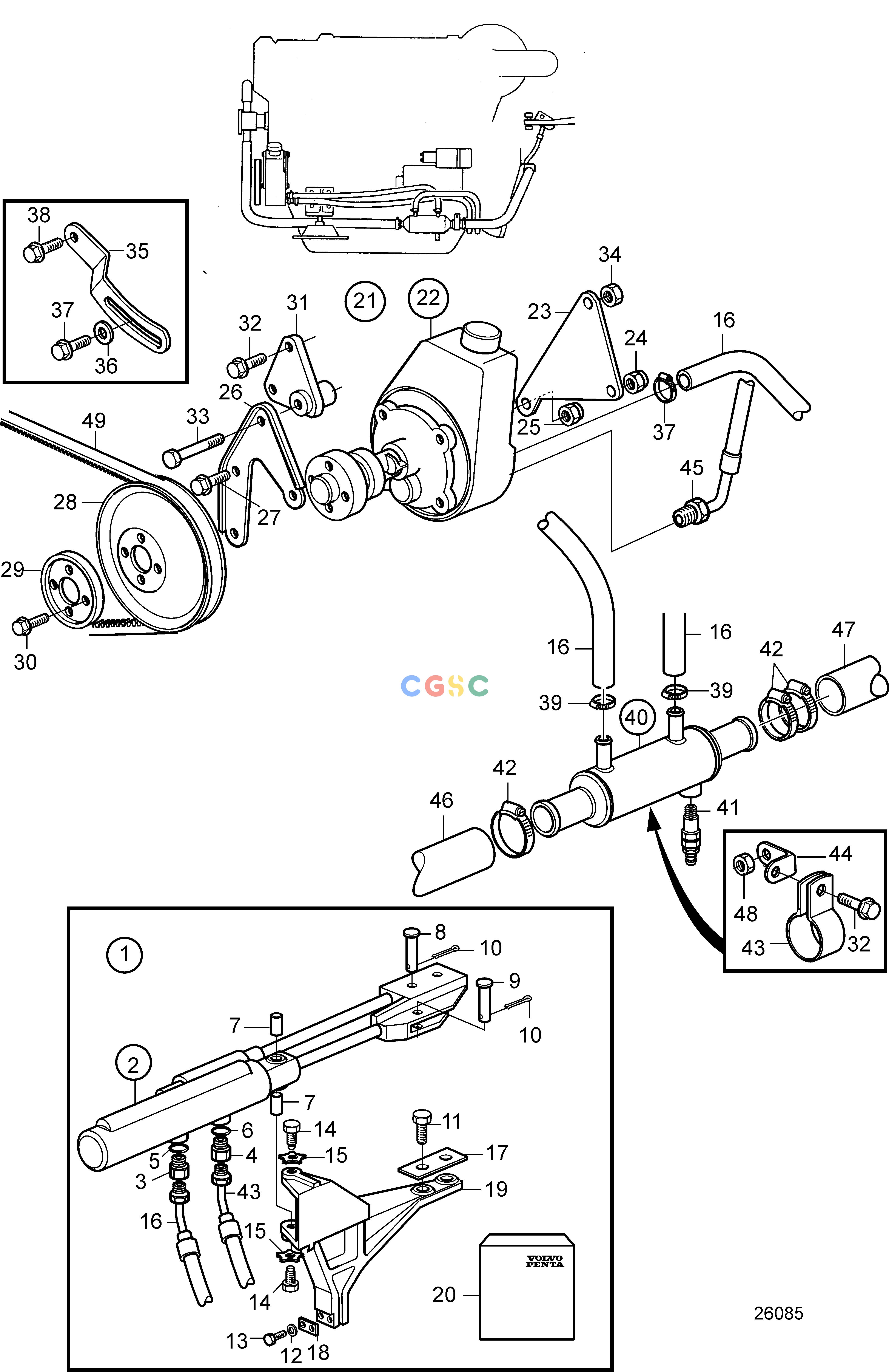

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ASteering SystemPower SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872229
|
[1] |
Power steering kit
|
|
| 2. |
872215
|
[1] |
Steering cylinder
|
|
| 3. |
872698
|
[1] |
Nipple
|
|
| 4. |
872699
|
[1] |
Nipple
|
|
| 5. |
955985
|
[1] |
O-ring
|
|
| 6. |
955982
|
[1] |
O-ring
|
|
| 7. |
872700
|
[2] |
Bushing
|
|
| 8. |
872491
|
[1] |
Clevis pin
|
|
| 9. |
872490
|
[1] |
Clevis pin
|
|
| 10. |
949791
|
[2] |
Split pin
|
|
| 11. |
977625
|
[2] |
Hexagon screw
|
|
| 12. |
941908
|
[2] |
Spring washer
|
|
| 13. |
965185
|
[2] |
Flange screw
|
|
| 14. |
872103
|
[2] |
Pivot pin
|
|
| 15. |
872104
|
[2] |
Lock washer
|
|
| 16. |
872217
|
[1] |
Return hose
|
|
| 17. |
872311
|
[1] |
Tab washer
|
|
| 18. |
872369
|
[1] |
Tab washer
|
|
| 19. |
872443
|
[1] |
Bracket
|
|
| 20. |
872697
|
[1] |
Sealing ring kit
|
For 872215
|
| 21. |
860881
|
[1] |
Servo pump
|
|
| 22. |
838310
|
[1] |
Servo pump
|
|
| 23. |
838892
|
[1] |
Bracket
|
|
| 24. |
971095
|
[1] |
Flange nut
|
|
| 25. |
971083
|
[1] |
Lock nut
|
|
| 26. |
838893
|
[1] |
Bracket
|
|
| 27. |
946441
|
[1] |
Flange screw
|
L=20mm
|
| 27. |
946329
|
[2] |
Flange screw
|
L=25mm
|
| 28. |
1219961
|
[1] |
V-belt pulley
|
|
| 29. |
464541
|
[1] |
Washer
|
|
| 30. |
944926
|
[4] |
Flange screw
|
|
| 31. |
838312
|
[1] |
Bracket
|
|
| 32. |
947760
|
[2] |
Flange screw
|
L=40mm
|
| 32. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 33. |
955557
|
[1] |
Hexagon screw
|
|
| 34. |
950355
|
[1] |
Lock nut
|
|
| 35. |
838073
|
[1] |
Tensioner
|
|
| 36. |
976944
|
[1] |
Washer
|
|
| 37. |
946173
|
[1] |
Flange screw
|
|
| 38. |
948217
|
[1] |
Flange screw
|
|
| 39. |
961664
|
[3] |
Hose clamp
|
|
| 40. |
858541
|
[1] |
Oil cooler
|
|
| 41. |
949918
|
[1] |
Shut-off cock
|
|
| 42. |
961669
|
[4] |
Hose clamp
|
|
| 43. |
860700
|
[1] |
Attaching clamp
|
|
| 44. |
860701
|
[1] |
Bracket
|
Not included in kit.
|
| 45. |
872234
|
[1] |
Pressure hose
|
|
| 46. |
|
|
|
See group 26
|
| 47. |
861742
|
[1] |
Hose
|
|
| 48. |
971095
|
[1] |
Flange nut
|
See group 26
|
| 49. |
967123
|
[1] |
V-belt
|
|
