神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (02-008) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
346 次

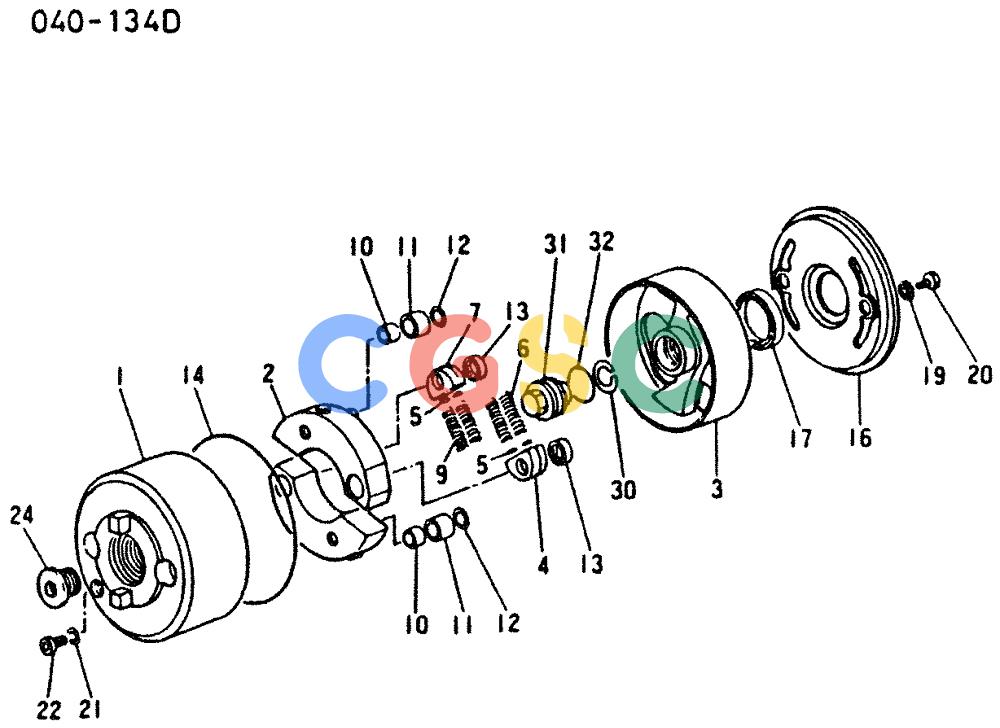

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-32. | VAME047226 | [1] | AUTOMATICTIMER ASSY SA TYPE | |
| 1. | VAME717632 | [1] | HOUSING,TIMER | |
| 2. | VAME722158 | [2] | FLYWEIGHT | |
| 3. | VAME722155 | [1] | FLANGE | |
| 4. | VAME705003 | [2] | SEAT,SPG | |
| 5. | VAME705263 | [1] | SHIM ,T=0.10 | |
| 5. | VAME705264 | [1] | SHIM ,T=0.20 | |
| 5. | VAME705265 | [1] | SHIM ,T=0.25 | |
| 5. | VAME705266 | [1] | SHIM ,T=1.00 | |
| 5. | VAME717755 | [1] | SHIM ,T = 0.3 | |
| 5. | VAME717756 | [1] | SHIM ,T = 0.4 | |
| 5. | VAME717757 | [1] | SHIM ,T = 0.5 | |
| 5. | VAME717758 | [1] | SHIM ,T = 0.4 | |
| 5. | VAME717759 | [1] | TSHIM , = 0.7 | |
| 5. | VAME717760 | [1] | SHIM ,T = 0.8 | |
| 5. | VAME717761 | [1] | SHIM ,T = 0.9 | |
| 5. | VAME716747 | [1] | SHIM ,T=1.50 | |
| 5. | VAME716748 | [1] | SHIM ,T=2.00 | |
| 6. | VAME722159 | [2] | SPRING,TIMER | |
| 6. | VAME726182 | [1] | SPRING,TIMER | |
| 6. | VAME726183 | [1] | SPRING,TIMER | |
| 7. | VAME705003 | [2] | SEAT,SPG | |
| 9. | VAME722159 | [2] | SPRING, TIMER | |
| 9. | VAME726182 | [1] | SPRING,TIMER | |
| 9. | VAME726183 | [1] | SPRING,TIMER | |
| 10. | VAME705005 | [2] | BUSHING | |
| 11. | VAME705006 | [1] | ROLLER,D=18.0 | |
| 11. | VAME705007 | [1] | ROLLER,D=17.9 | |
| 11. | VAME705008 | [1] | ROLLER,D=18.1 | |
| 11. | VAME705009 | [1] | ROLLER,D=18.2 | |
| 12. | VAME705268 | [2] | WASHER | |
| 13. | VAME705010 | [2] | RETAINER | |
| 14. | VAME705011 | [1] | O-RING | |
| 16. | VAME705012 | [1] | COVER | |
| 17. | VAME705013 | [1] | OILSEAL | |
| 19. | VAME705269 | [2] | GASKET | |
| 20. | VAME7D5270 | [2] | BOLT | |
| 21. | VAME705271 | [1] | GASKET GASKET | GASKET GASKET |
| 22. | VAME705014 | [1] | PLUG PLUG | PLUG PLUG |
| 24. | VAME704425 | [1] | CAP | |
| 30. | VAME705273 | [1] | WASHER,SPG | |
| 31. | VAME705018 | [1] | HUT | |
| 32. | VAME705274 | [1] | 0-RING | |
