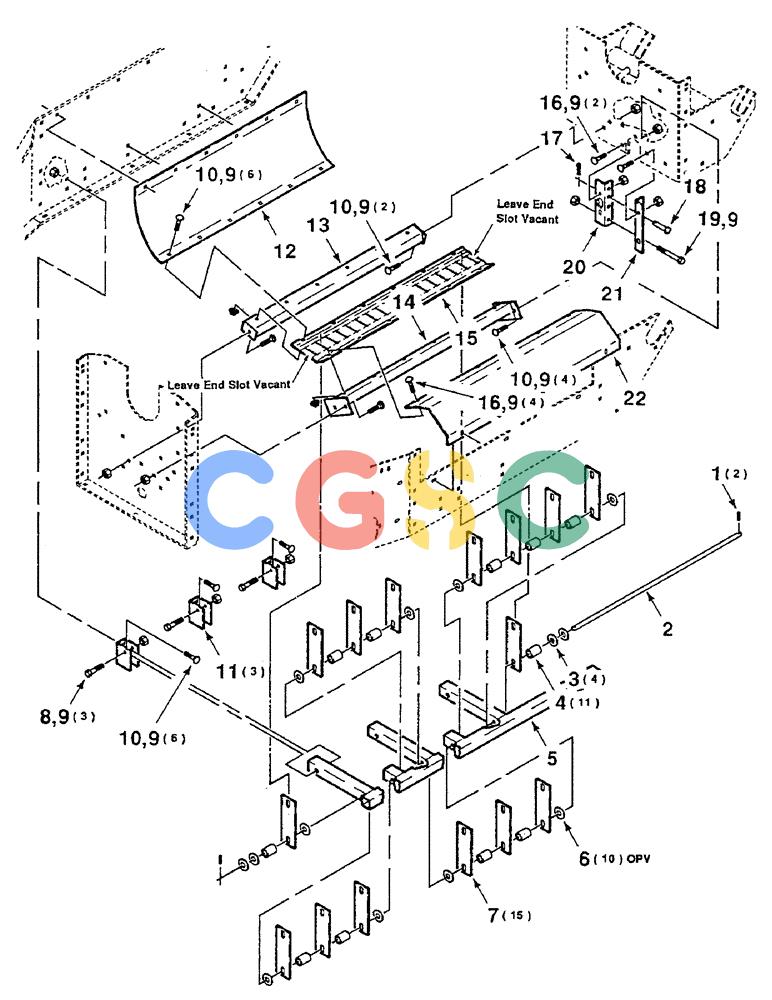

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (9-24) - SECONDARY CUTTER KIT, HK50510 SECONDARY CUTTER KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50510
|
[1] |
SECONDARY CUTTER KIT COMPLETE
|
|
| 1. |
38-11624
|
[2] |
LOCK PIN,1/4" x 1 1/2", Slotted
|
CAS
PIN, 1/4" x 1 1/2", Slotted Superseded by part number: 87406
|
| 2. |
700117405
|
[1] |
PIN
|
IH
- hammer
|
| 3. |
705566
|
[4] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 4. |
700129356
|
[11] |
SPACER
|
IH
|
| 5. |
700117391
|
[1] |
TUBE,245.3, 184 mm Length
|
HFI
FRAME - support, pivot
|
| 6. |
52928
|
[10] |
WASHER
|
CAS
3/4 X 14 GAUGE WRMB
|
| 7. |
700117406
|
[15] |
LARGE PLATE
|
IH
HAMMER
|
| 8. |
413-852
|
[3] |
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
|
CAS
1/2-13 X 3-1/4 C Superseded by part number: 72187219, 88043
|
| 9. |
231-5348
|
[28] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 10. |
433-820
|
[18] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 11. |
700117404
|
[3] |
SUPPORT
|
HFI
- frame, right
|
| 12. |
700117402
|
[1] |
PAN
|
HFI
- right
|
| 13. |
700117398
|
[1] |
SUPPORT
|
HFI
|
| 14. |
700117395
|
[1] |
SUPPORT
|
HFI
|
| 15. |
700117403
|
[1] |
SUPPORT
|
HFI
- hammer
|
| 16. |
433-824
|
[6] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 17. |
S120261
|
[1] |
PIN
|
CAS
.148 WIRE HAIR PIN COTTER
|
| 18. |
22897R1
|
[1] |
HEADED PIN,1/2" x 4 1/2"
|
IH
1/2 X 4-1/2 CLEVIS PIN
|
| 19. |
413-880
|
[1] |
BOLT,Hex, 1/2" - 13 x 5", Gr 5
|
CAS
1/2-13 X 5 C Superseded by part number: 87997
|
| 20. |
700117407
|
[1] |
ANGLE
|
HFI
- right
|
| 21. |
700117409
|
[1] |
ANGLE
|
HFI
- left
|
| 22. |
700117401
|
[1] |
PAN
|
HFI
- left
|
