沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ASteering SystemServo Pump for SX-DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
284 次

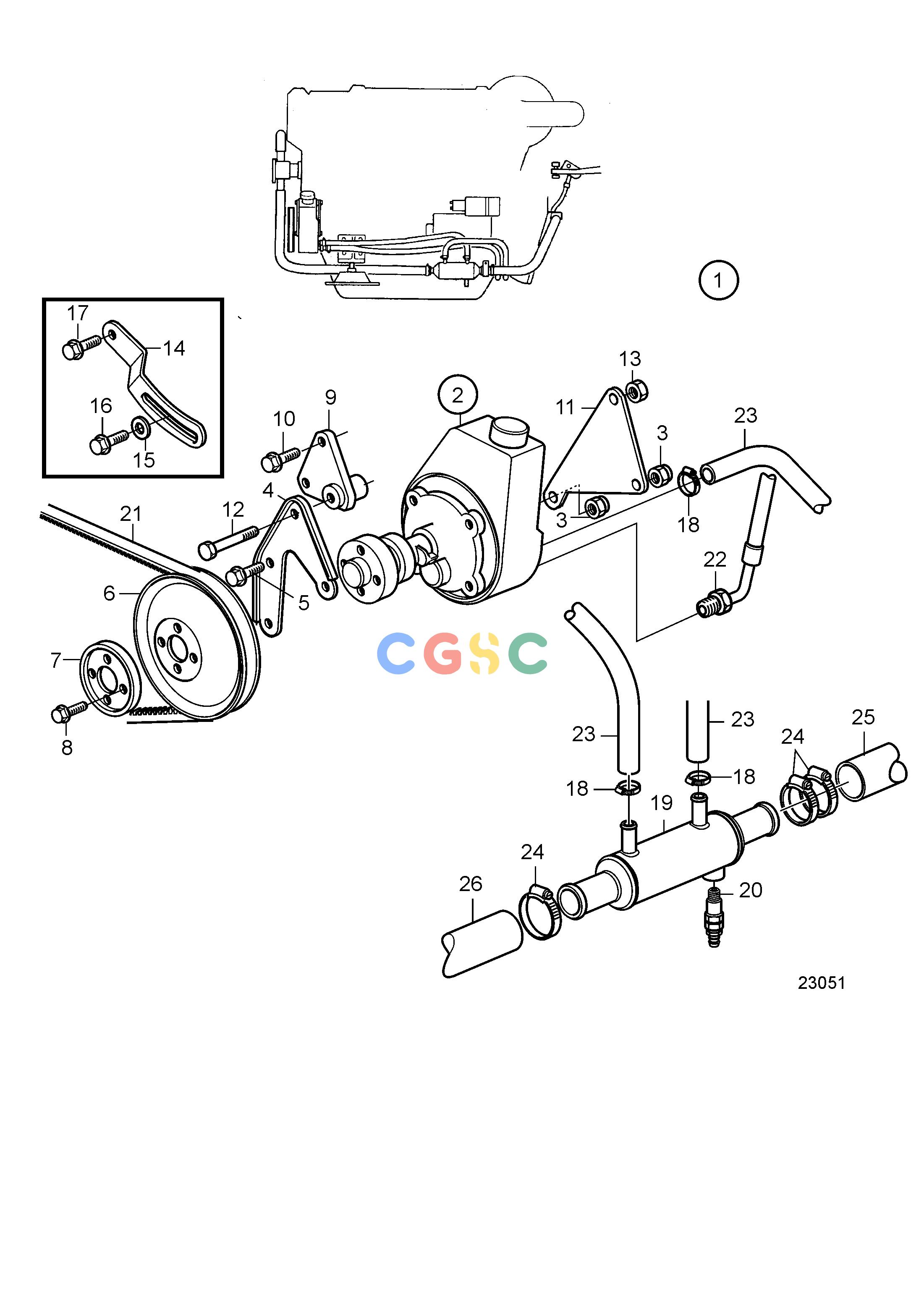

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
838310
|
[1] |
Servo pump
|
|
| 2. |
|
|
|
|
| 3. |
971095
|
[1] |
Flange nut
|
|
| 3. |
971083
|
[1] |
Lock nut
|
|
| 4. |
838893
|
[1] |
Bracket
|
|
| 5. |
946441
|
[1] |
Flange screw
|
L=20mm
|
| 5. |
946329
|
[2] |
Flange screw
|
L=25mm
|
| 6. |
1219961
|
[1] |
V-belt pulley
|
|
| 7. |
464541
|
[1] |
Washer
|
|
| 8. |
944926
|
[4] |
Flange screw
|
|
| 9. |
838312
|
[1] |
Bracket
|
|
| 10. |
947760
|
[2] |
Flange screw
|
|
| 11. |
838892
|
[1] |
Bracket
|
|
| 12. |
955557
|
[1] |
Hexagon screw
|
|
| 13. |
950355
|
[1] |
Lock nut
|
|
| 14. |
838073
|
[1] |
Tensioner
|
|
| 15. |
976944
|
[1] |
Washer
|
|
| 16. |
946173
|
[1] |
Flange screw
|
|
| 17. |
948217
|
[1] |
Flange screw
|
|
| 18. |
961664
|
[3] |
Hose clamp
|
|
| 19. |
858541
|
[1] |
Oil cooler
|
|
| 20. |
949918
|
[1] |
Shut-off cock
|
|
| 21. |
967123
|
[1] |
V-belt
|
|
| 22. |
3851511
|
[1] |
Hose
|
|
| 23. |
872217
|
[1] |
Return hose
|
|
| 24. |
961669
|
[4] |
Hose clamp
|
|
| 25. |
1140664
|
[1] |
Exhaust hose
|
|
| 26. |
861737
|
[1] |
Hose
|
|
