神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (02-014) - FUEL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
365 次

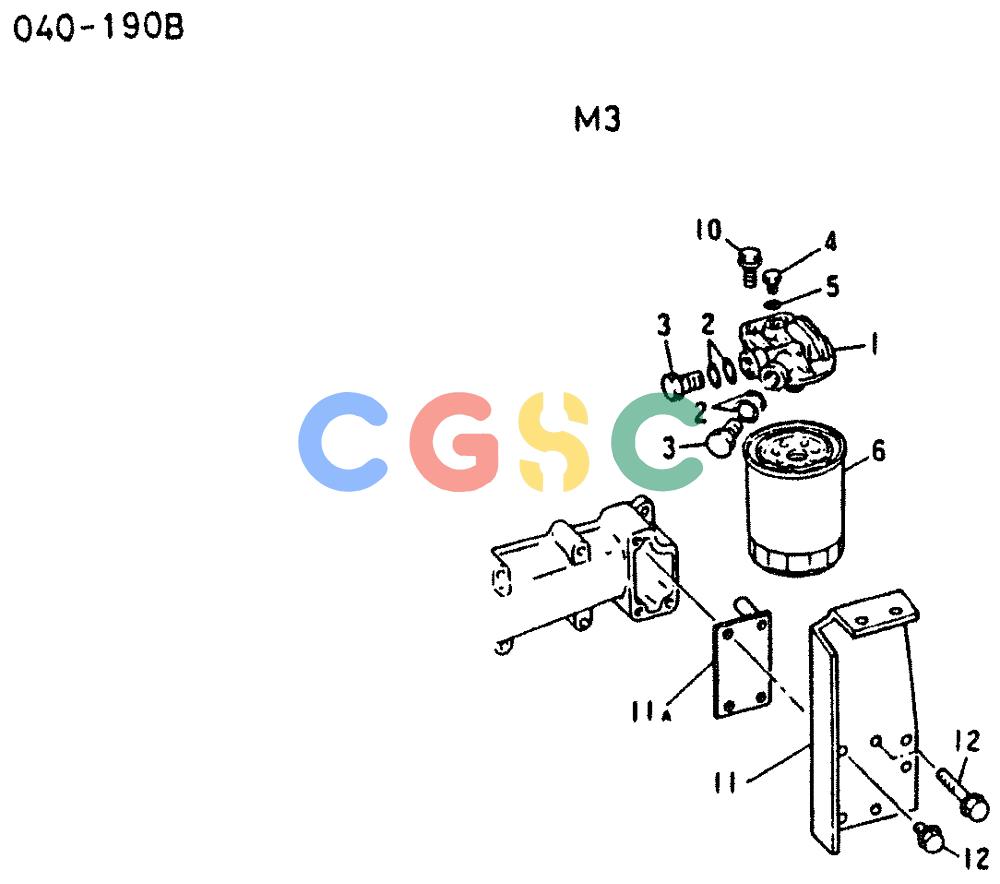

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME035396 | [1] | FUEL FILTER | KOBFUEL FILTER ASSY Superseded by part number: 77269152, VAME072903 |
| 1. | VAME035672 | [1] | CYLINDER HEAD | KOBHEAD,FUEL FILTER Superseded by part number: VAME307274 |
| 2. | VAMH035166 | [1] | GASKET | KOBGASKET 14 Superseded by part number: 133378A1 |
| 3. | VAMH037087 | [2] | BOLT | KOBBOLT,CONNECTOR |
| 4. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG,AIR Superseded by part number: 77270641, VAME016894 |
| 5. | VAMH035164 | [1] | GASKET | KOBGASKET 8 Superseded by part number: 133379A1 |
| 6. | VAME035393 | [1] | ELEMENT | KOBELEMENT,FUEL FILTER Superseded by part number: 47500495 |
| 10. | VAMF140260 | [2] | BOLT | KOBBOLT,FLANGE 10X25 |
| 11. | VAME070922 | [1] | BRACKET,FUEL FILTER | |
| 11A. | VAME070923 | [1] | BRACKET | |
| 12. | VAMF140240 | [2] | BOLT | KOBBOLT,FLANGE 6X75 |
| 12. | VAMF140226 | [2] | SCREW | KOBBOLT,FLANGE 8X22 |
