沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ATransmissionsConnecting Components for HS63VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
199 次

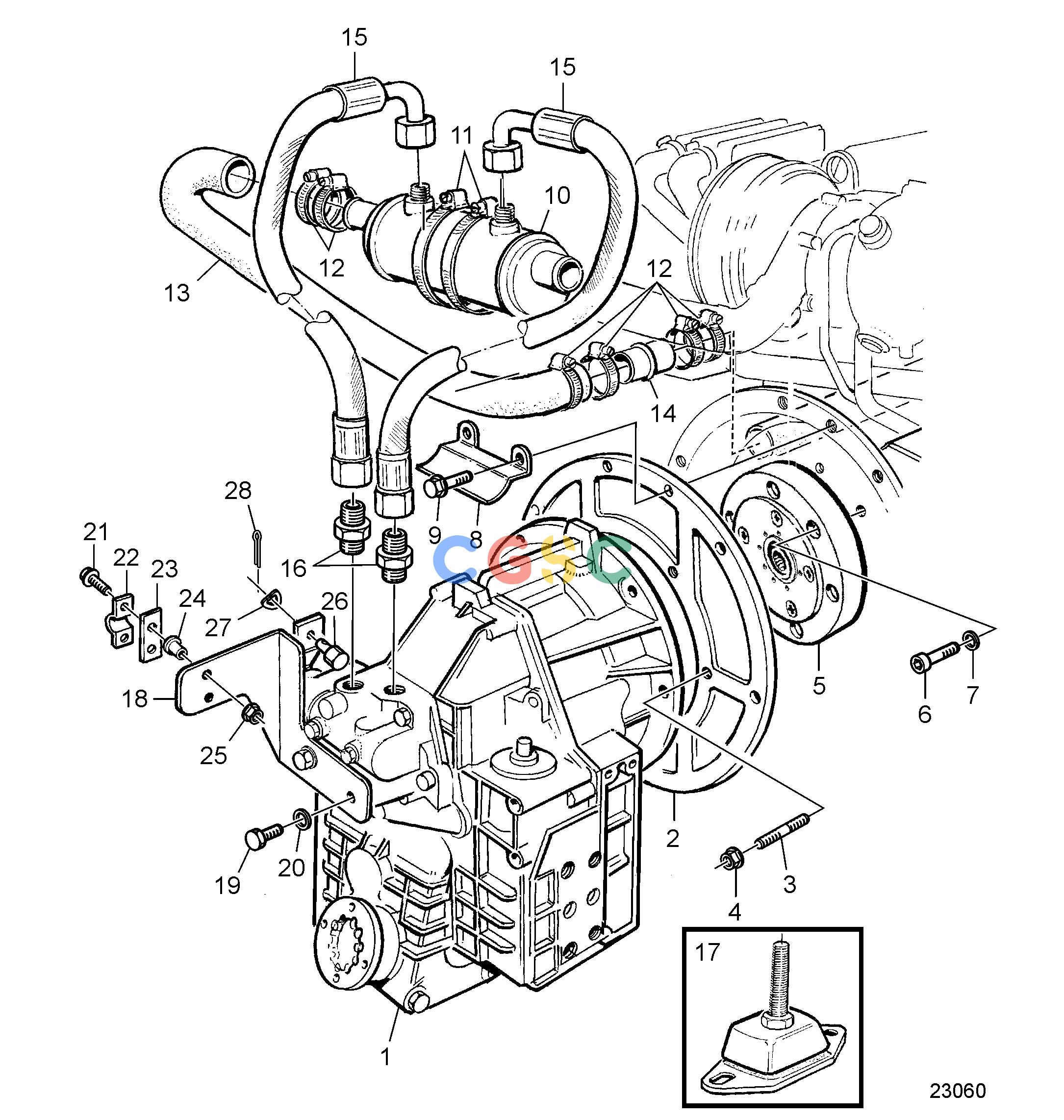

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
829489
|
[1] |
Cap
|
|
| 3. |
924075
|
[6] |
Stud
|
|
| 4. |
971095
|
[6] |
Flange nut
|
|
| 5. |
3582751
|
[1] |
Vibration damper
|
(3857442)
|
| 6. |
959227
|
[6] |
Hex. socket screw
|
|
| 7. |
941907
|
[6] |
Spring washer
|
|
| 8. |
859592
|
[1] |
Bracket
|
|
| 9. |
946752
|
[11] |
Flange screw
|
|
| 10. |
872626
|
[1] |
Oil cooler
|
|
| 11. |
943481
|
[2] |
Hose clamp
|
|
| 12. |
961669
|
[6] |
Hose clamp
|
|
| 13. |
3581335
|
[1] |
Hose
|
|
| 14. |
861090
|
[1] |
Tube
|
|
| 15. |
3581387
|
[2] |
Hydraulic hose
|
|
| 16. |
856793
|
[2] |
Nipple
|
|
| 17. |
|
|
|
See group 21
|
| 18. |
3581336
|
[1] |
Bracket
|
|
| 19. |
940133
|
[2] |
Hexagon screw
|
|
| 20. |
976945
|
[2] |
Washer
|
|
| 21. |
956081
|
[2] |
Cross recessed screw
|
|
| 22. |
21471054
|
[1] |
Bracket
|
|
| 23. |
819068
|
[1] |
Washer
|
|
| 24. |
843108
|
[2] |
Bushing
|
|
| 25. |
949874
|
[2] |
Flange lock nut
|
(946577)
|
| 26. |
3852329
|
[1] |
Cube
|
(804312)
|
| 27. |
941906
|
[1] |
Spring washer
|
|
| 28. |
17276
|
[1] |
Split pin
|
|
