斗山零件查询PILOT PIPING(5) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044664A
|
[-] |

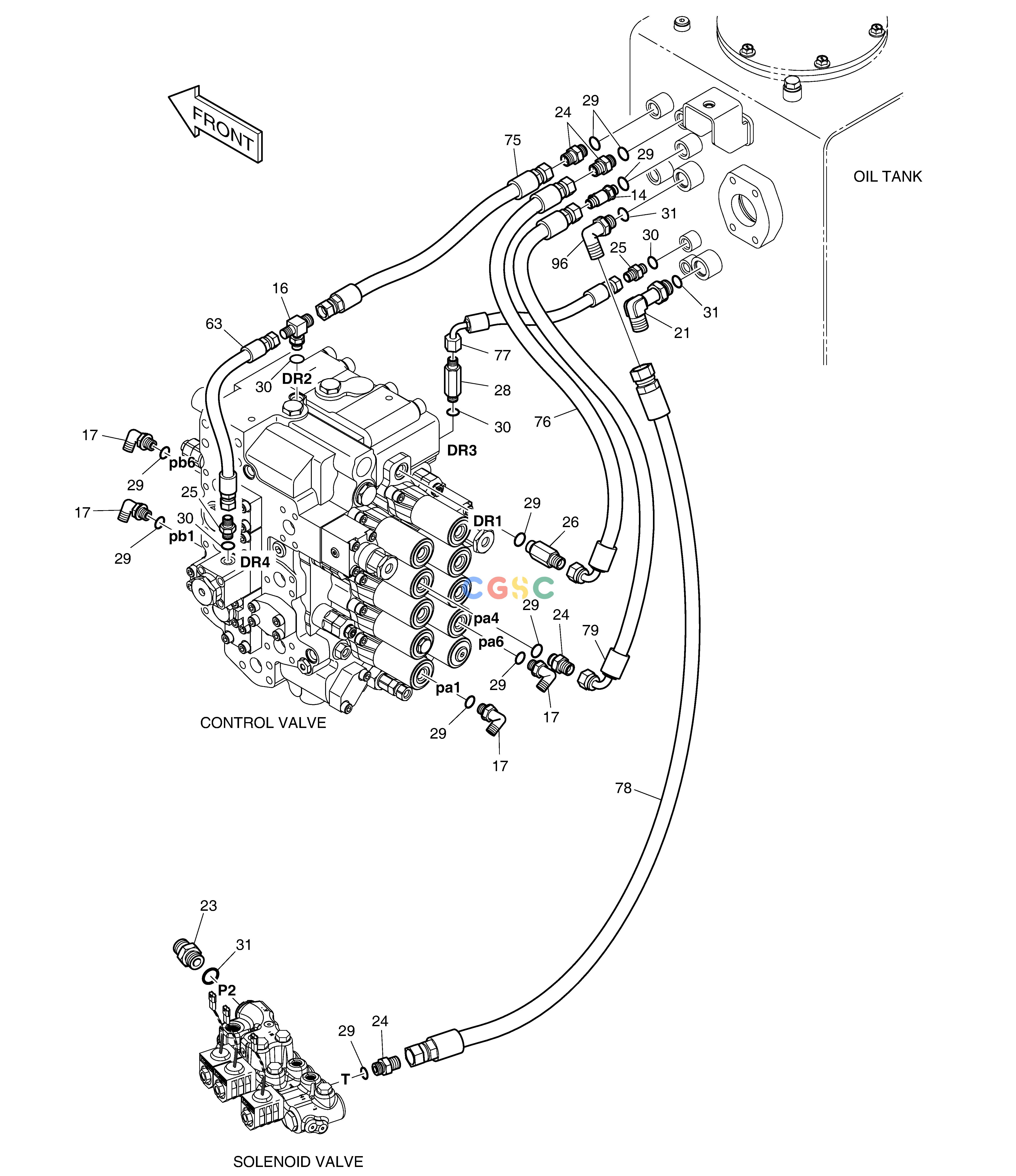

PILOT PIPING
|
|
| -. |
420212-10191
|
[-] |
|
|
| 14. |
2181-1951D6
|
[1] |
TEE
|
|
| 16. |
2181-2281D21
|
[1] |
TEE
|
|
| 17. |
2181-1702D10
|
[4] |
ELBOW
|
|
| 21. |
2181-1702D53
|
[1] |
ELBOW
|
|
| 23. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 24. |
2181-1126D7
|
[4] |
ADAPTER
|
|
| 25. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 26. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 28. |
2181-1126D103
|
[1] |
ADAPTER
|
|
| 29. |
S8000141
|
[10] |
O-RING
|
|
| 30. |
S8000111
|
[4] |
O-RING
|
|
| 31. |
S8000181
|
[3] |
O-RING
|
|
| 63. |
DS2094004
|
[1] |
HOSE
|
|
| 75. |
DS2094055
|
[1] |
HOSE
|
|
| 76. |
DS2093185
|
[1] |
HOSE
|
|
| 77. |
DS2093130
|
[1] |
HOSE
|
|
| 77. |
DS2154035
|
[1] |
|
|
| 78. |
DS2094037
|
[1] |
HOSE
|
|
| 79. |
DS2093030
|
[1] |
HOSE
|
|
| 96. |
2181-1702D9
|
[1] |
ELBOW
|
|
