沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ATransmissionsDrive Extension, 1'' (25.4mm) DPEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
290 次

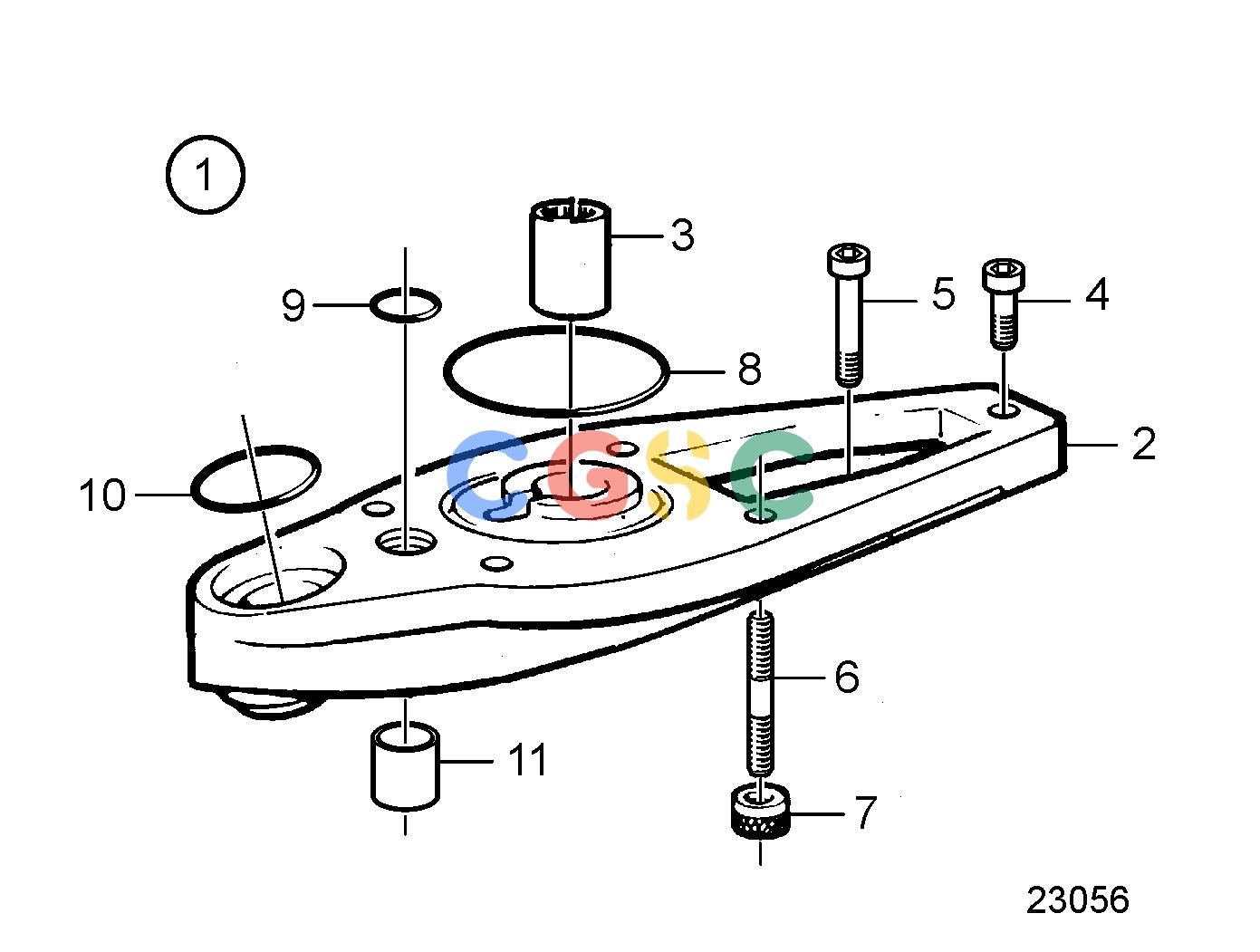

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854686
|
[1] |
Extension kit
|
|
| 2. |
|
|
|
|
| 3. |
854684
|
[1] |
Splined sleeve
|
|
| 4. |
941873
|
[1] |
Hex. socket screw
|
|
| 5. |
959448
|
[2] |
Hex. socket screw
|
|
| 6. |
943762
|
[4] |
Stud
|
|
| 7. |
832939
|
[4] |
Nut
|
|
| 8. |
925256
|
[1] |
O-ring
|
|
| 9. |
125017
|
[1] |
O-ring
|
|
| 10. |
941820
|
[1] |
O-ring
|
|
| 11. |
897823
|
[1] |
Oil pipe
|
|
