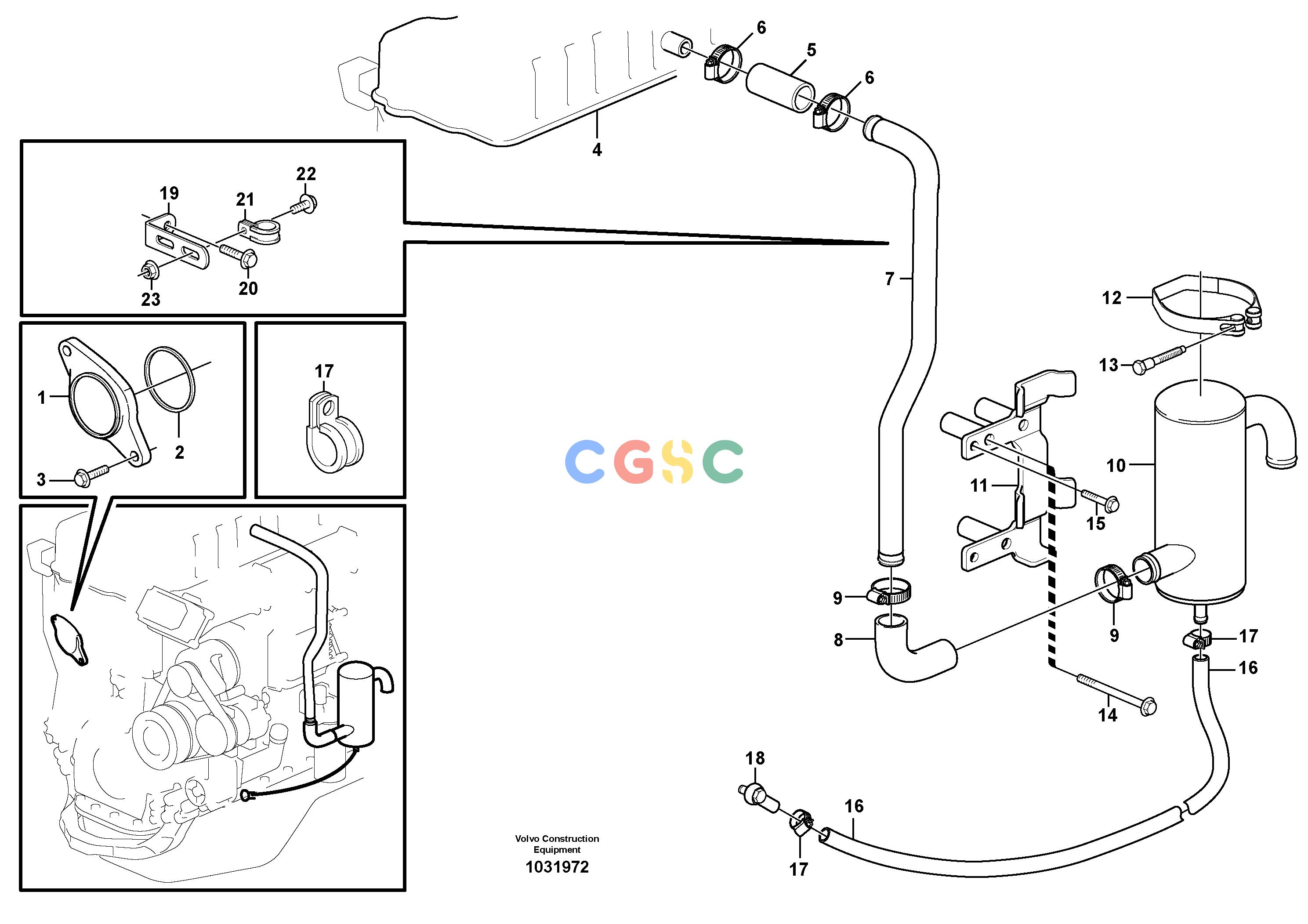

沃尔沃零件查询A35E FS Crankcase ventilation.FULL SUSPENSION S/N 10001 - 11215 NoneNone8188195, 8188196, 8188744, 8188745, 8188749, 8188769Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20700315
|
[1] |
Plug
|
|
| 2. |
VOE3165097
|
[1] |
Sealing ring
|
|
| 3. |
VOE13945444
|
[2] |
Screw
|
|
| 4. |
|
[1] |
Valve Cover
|
|
| 5. |
VOE11128750
|
[1] |
Hose
|
|
| 6. |
VOE943476
|
[2] |
Hose clamp
|
ENG - 654902
|
| 6. |
VOE994561
|
[2] |
Hose clamp
|
ENG 654903 -
|
| 7. |
VOE11423802
|
[1] |
Pipe
|
|
| 8. |
VOE11128756
|
[1] |
Hose
|
|
| 9. |
VOE943476
|
[2] |
Hose clamp
|
|
| 10. |
VOE11033878
|
[1] |
Oil trap
|
|
| 11. |
VOE11423146
|
[1] |
Attachment
|
|
| 12. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 13. |
VOE1545257
|
[1] |
Screw
|
|
| 14. |
VOE984758
|
[3] |
Flange screw
|
L = 70 MM
|
| 15. |
VOE946440
|
[2] |
Flange screw
|
|
| 16. |
VOE983342
|
[REQ] |
Hose
|
L = 520 MM
|
| 17. |
VOE943471
|
[2] |
Hose clamp
|
ENG - 654902
|
| 17. |
VOE993960
|
[2] |
Hose clamp
|
ENG 654903 -
|
| 18. |
|
[1] |
Nipple
|
|
| 19. |
VOE13965559
|
[1] |
Bracket
|
|
| 20. |
VOE969313
|
[1] |
Flange screw
|
|
| 21. |
VOE952638
|
[1] |
Clamp
|
|
| 22. |
VOE13946934
|
[1] |
Screw
|
|
| 23. |
VOE13949278
|
[1] |
Flange lock nut
|
|
