斗山零件查询PUMP MOUNTING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400911-00005
|
[-] |
|
|
| -. |
401-00502H
|
[-] |

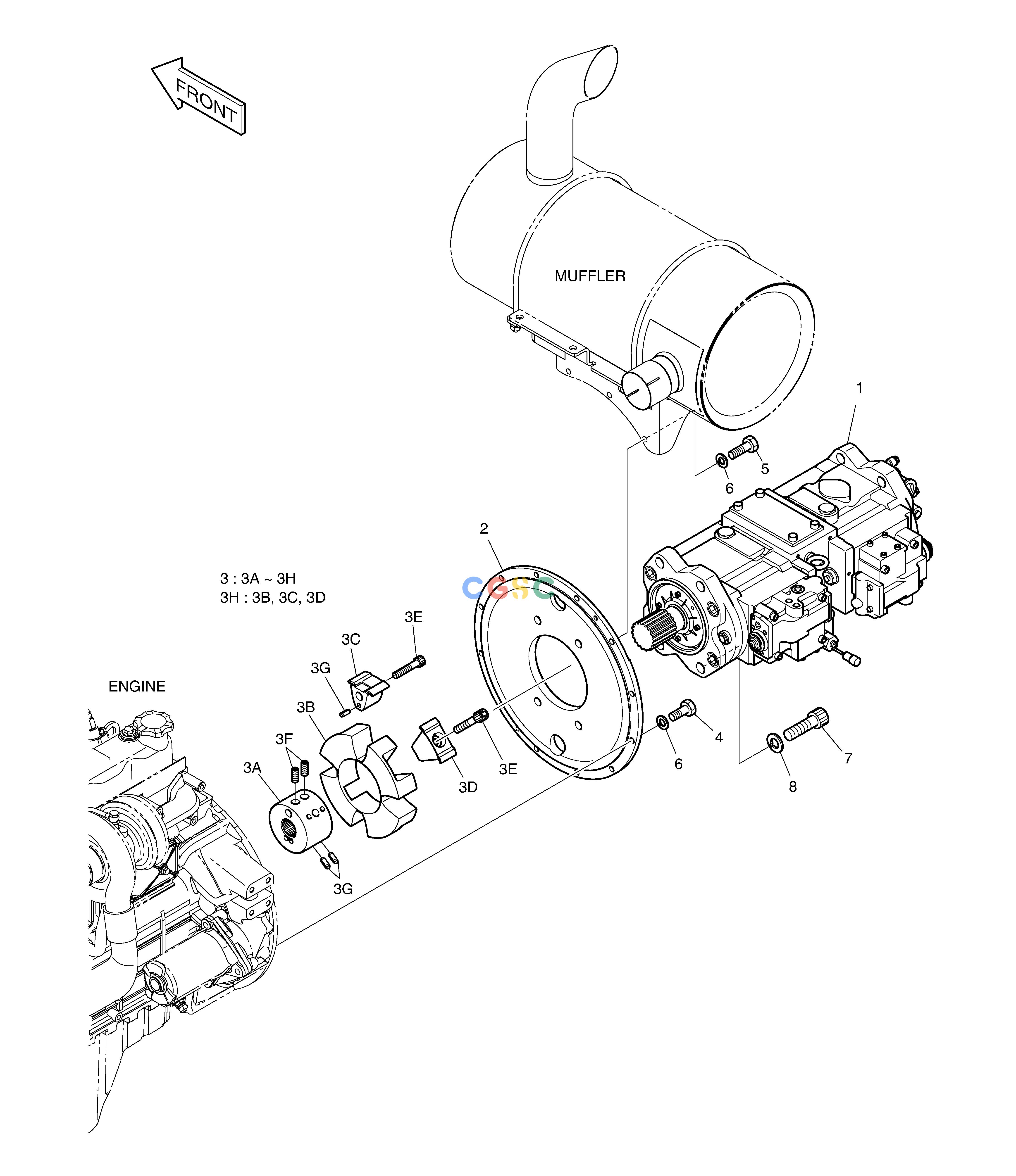

PUMP MOUNTING
|
|
| 1. |
K1000698E
|
[1] |
MAIN PUMP
|
400914-00212
|
| 1. |
400914-00212
|
[1] |
|
400914-00212A
|
| 1. |
400914-00212A
|
[1] |
|
|
| 1. |
K1000698G
|
[1] |
PUMP;MAIN
|
|
| 2. |
110508-18473
|
[1] |
|
|
| 2. |
229-00025C
|
[1] |
COVER;PUMP
|
|
| 3. |
K1013825
|
[1] |
COUPLING
|
|
| 3A. |
NA00546
|
[1] |
HUB
|
|
| 3B. |
2474-7009
|
[1] |
ELEMENT
|
|
| 3C. |
NA00559
|
[4] |
. INSERT
|
|
| 3D. |
NA00561
|
[4] |
. INSERT
|
|
| 3E. |
K9000422
|
[1] |
SOCKET BOLT SET(8EA)
|
|
| 3F. |
NA00136
|
[2] |
|
|
| 3G. |
NA00779
|
[12] |
BALL
|
|
| 3H. |
2474-7009K
|
[1] |
ELEMENT KIT
|
|
| 4. |
S0512266
|
[9] |
BOLT
|
|
| 4. |
S0558266
|
[9] |
BOLT
|
|
| 5. |
S0512366
|
[3] |
BOLT
|
|
| 5. |
S0558366
|
[3] |
BOLT M10X1.5X40
|
|
| 6. |
S5102603
|
[12] |
. WASHER
|
|
| 6. |
120804-00070
|
[12] |
WASHER
|
|
| 7. |
S2227866
|
[4] |
BOLT
|
|
| 7. |
S2227966
|
[4] |
BOLT;SOCKET M20X2.5X65
|
|
| 8. |
S5111103
|
[4] |
WASHER;SPRING
|
|
| 8. |
K1012105
|
[4] |
|
|
