神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-026) - INLET MANIFOLD P/N ME033223 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
498 次

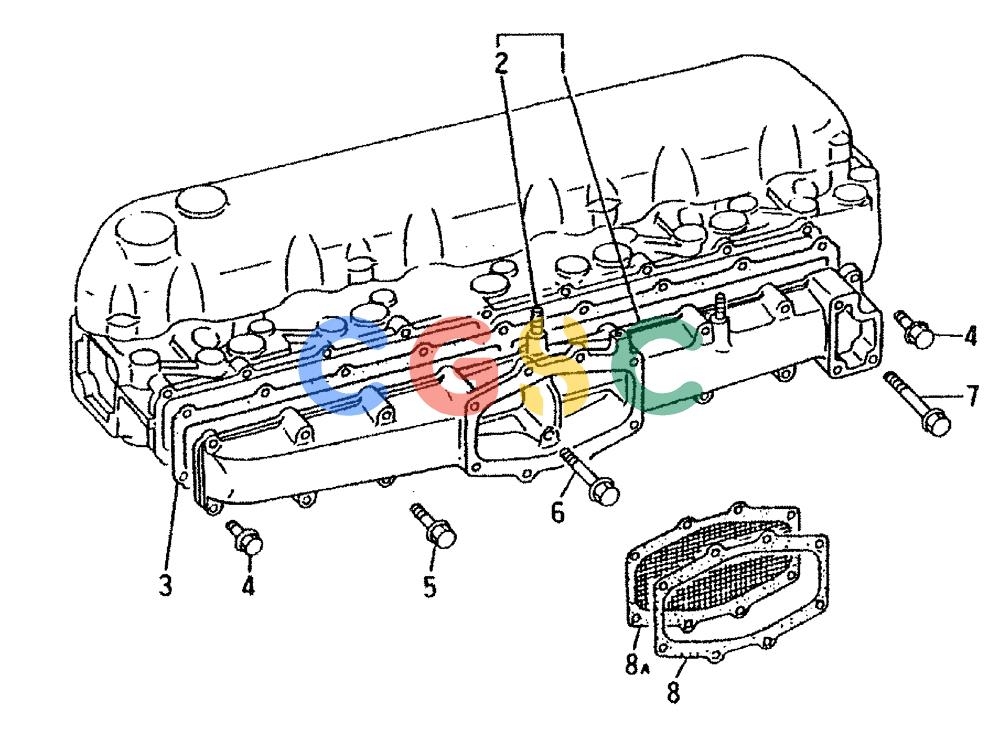

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME033223 | [1] | INLET MAN ASSY | INLET MAN ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, INLET |
| 2. | VAMF402548 | [2] | STUD | KOBSTUD, 6 X 30 |
| 3. | VAME034491 | [1] | GASKET | KOBGASKET, MANIF Superseded by part number: VAME047600 |
| 4. | VAMF140226 | [3] | SCREW | KOBBOLT, FLANGE, 8 X 22 |
| 5. | VAMF140236 | [8] | BOLT | KOBBOLT, FLANGE, 8 X 55 Superseded by part number: VAMF140235 |
| 6. | VAMF140241 | [2] | BOLT | KOBBOLT, FLANGE, 8 X 80 |
| 7. | VAMF244865 | [1] | BOLT | KOBBOLT, W/WSR, 8 X 70 |
| 8. | VAME037450 | [1] | GASKET | KOB Superseded by part number: 77269165, VAME047601 |
| 8A. | VAME077070 | [1] | GASKET | KOBW/NET Superseded by part number: VAME078272 |
