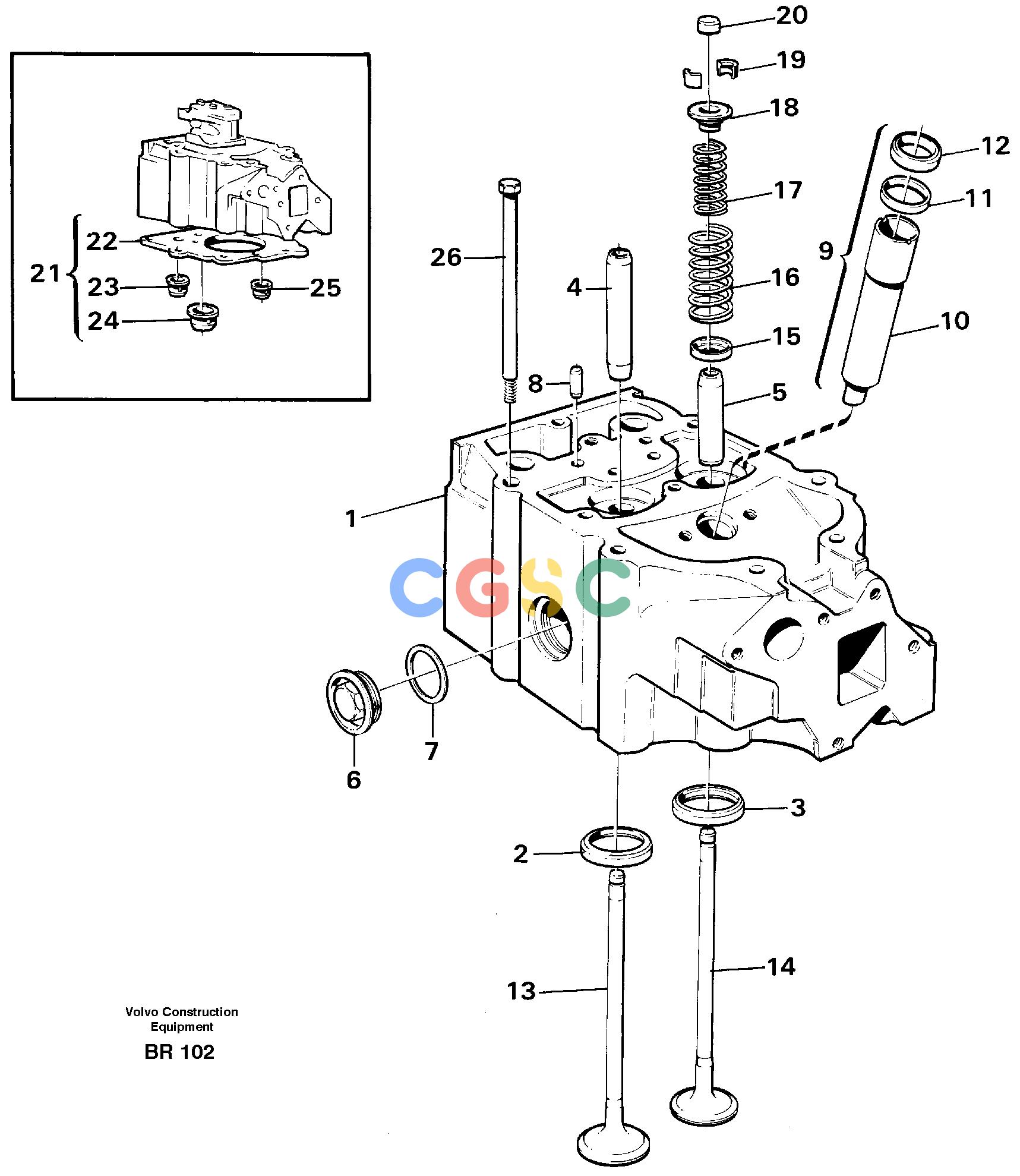

沃尔沃零件查询A40 Cylinder headSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478128
|
[6] |
Cylinder head
|
|
| 1. |
VOE470813
|
[6] |
Cylinder head
|
|
| 2. |
VOE423011
|
[6] |
Valve seat
|
STD D
|
| |
VOE423208
|
[6] |
Valve seat
|
0.2 MM O SZ
|
| 3. |
VOE468448
|
[6] |
Valve seat
|
STD D
|
| |
VOE468449
|
[6] |
Valve seat
|
0.2 MM O SZ
|
| 4. |
VOE422320
|
[6] |
Valve guide
|
Inlet/inlopp
|
| 5. |
VOE11129092
|
[6] |
Valve guide
|
Outlet/utlopp
|
| 6. |
VOE467365
|
[12] |
Plug
|
(467714)
|
| 7. |
VOE469327
|
[12] |
Gasket
|
|
| 8. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 9. |
VOE273983
|
[6] |
Repair kit
|
|
| 10. |
VOE470247
|
[6] |
Sleeve
|
|
| 11. |
VOE466405
|
[6] |
Sealing ring
|
|
| 12. |
VOE466420
|
[6] |
Ring
|
|
| 13. |
VOE468302
|
[6] |
Valve
|
Inlet / inlopp
|
| 14. |
VOE468303
|
[6] |
Valve
|
Outlet / utlopp
|
| 15. |
VOE468065
|
[12] |
Washer
|
|
| 16. |
VOE468067
|
[12] |
Spring
|
|
| 17. |
VOE468066
|
[12] |
Spring
|
|
| 18. |
VOE468304
|
[12] |
Washer
|
|
| 19. |
VOE468305
|
[24] |
Valve sleeve
|
|
| 20. |
VOE478074
|
[12] |
Valve cap
|
|
| 21. |
VOE270949
|
[6] |
Gasket kit
|
|
| 22. |
VOE470837
|
[6] |
Gasket
|
|
| 23. |
VOE422415
|
[12] |
Sealing ring
|
|
| 24. |
VOE423326
|
[12] |
Sealing ring
|
|
| 25. |
VOE422413
|
[6] |
Sealing ring
|
|
| 26. |
VOE470261
|
[48] |
Screw
|
|
