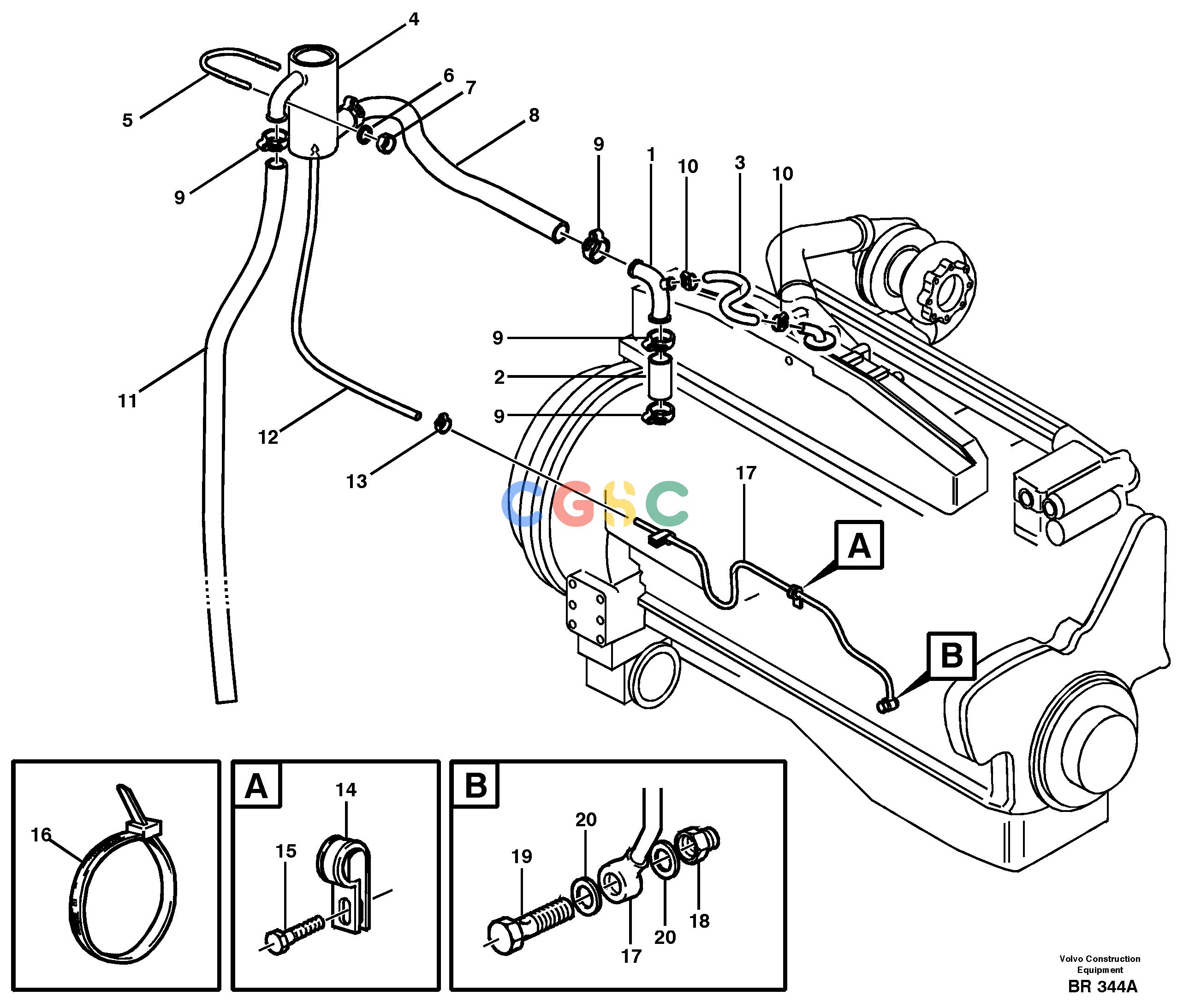

沃尔沃零件查询A40 Crankcase ventilationSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11063165
|
[1] |
Pipe bend
|
|
| 2. |
VOE941799
|
[REQ] |
Hose
|
L = 230
|
| 3. |
VOE11000285
|
[REQ] |
Rubber hose
|
L = 350
|
| 4. |
VOE11033878
|
[1] |
Oil trap
|
|
| 5. |
VOE11062977
|
[1] |
Brace
|
|
| 6. |
VOE13960141
|
[2] |
Washer
|
|
| 7. |
VOE13945408
|
[2] |
Nut
|
|
| 8. |
VOE941799
|
[REQ] |
Hose
|
L = 410
|
| 9. |
VOE943476
|
[5] |
Hose clamp
|
|
| 10. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 11. |
VOE941799
|
[REQ] |
Hose
|
L = 1000
|
| 12. |
VOE943706
|
[REQ] |
Rubber hose
|
L = 860
|
| 13. |
VOE943470
|
[2] |
Hose clamp
|
17
|
| 14. |
VOE13946834
|
[2] |
Clamp
|
|
| 15. |
VOE13940133
|
[2] |
Screw
|
|
| 16. |
VOE4881440
|
[2] |
Cable tie
|
|
| 17. |
VOE11063262
|
[1] |
Pipe
|
|
| 18. |
VOE11031981
|
[1] |
Reduction nipple
|
|
| 19. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 20. |
VOE13969011
|
[2] |
Gasket
|
|
