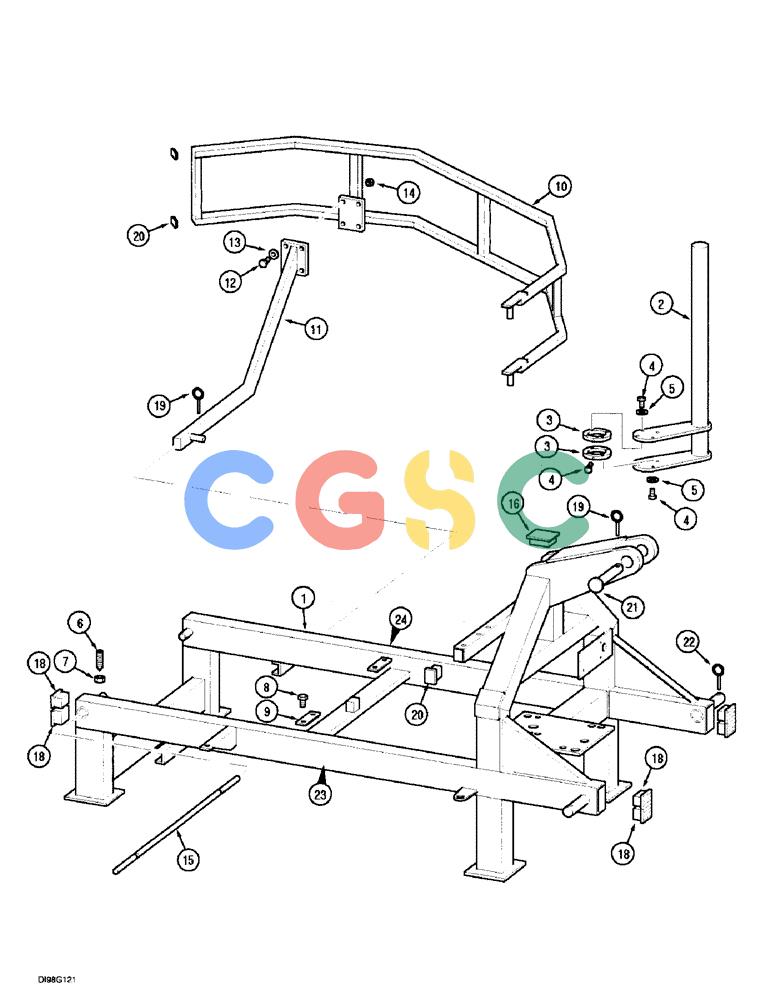

| 1. |
276943A1
|
[1] |
FRAME
|
CAS
ASSY., order Refs. 1 - 5 Superseded by part number: 86629541, 412123, 311391A1, 311389A1, 311382A1
|
| 1. |
311382A1
|
[1] |
FRAME
|
CAS
ASSY., Replaces: 276943A1
|
| 2. |
311391A1
|
[1] |
ARM
|
CAS
extension
|
| 3. |
311389A1
|
[2] |
RING
|
CAS
|
| 4. |
614-12040
|
[12] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 5. |
892-11012
|
[8] |
LOCK WASHER,M12
|
CAS
Superseded by part number: 412123
|
| 6. |
877-10816
|
[2] |
SET SCREW,Hex Skt, M8 x 16mm, Cup Pt
|
CAS
M8 x 16 Superseded by part number: 300477
|
| 7. |
829-1408
|
[2] |
NUT,Hex, M8 x 1.25, Cl 10.9
|
CAS
Superseded by part number: 87778059, 43362
|
| 8. |
840-1620
|
[4] |
SCREW,Pan, M6 x 20mm, Cl 4.8
|
CAS
Superseded by part number: 86511830
|
| 9. |
276380A1
|
[2] |
WEAR PAD
|
CAS
|
| 10. |
276945A1
|
[1] |
GUARD
|
CAS
left, illustrated
|
| 10. |
276946A1
|
[1] |
GUARD
|
CAS
right
|
| 11. |
276948A1
|
[2] |
SUPPORT
|
CAS
|
| 12. |
614-8030
|
[8] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| 13. |
895-11008
|
[8] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
CAS
Superseded by part number: 86624184
|
| 14. |
832-10408
|
[8] |
NUT,M8 x 1.25, Cl 8.8
|
CAS
Superseded by part number: 86528579
|
| 15. |
276947A1
|
[1] |
SHAFT
|
CAS
|
| 16. |
276934A1
|
[1] |
PLUG
|
CAS
100 x 50 mm
|
| 18. |
276561A1
|
[8] |
PLUG
|
CAS
60 x 60 mm
|
| 19. |
A30338
|
[3] |
PIN
|
CAS
linch 1/4 in Superseded by part number: 270184
|
| 20. |
277985A1
|
[8] |
PLUG
|
CAS
25 x 25 mm
|
| 21. |
276893A1
|
[1] |
PIN
|
CAS
pivot
|
| 22. |
A33509
|
[2] |
PIN,11.18mm OD
|
CAS
Linch 7/16 in Superseded by part number: 83902702
|
| 23. |
256996A1
|
[1] |
DECAL
|
CAS
model right See Figure: 2-90
|
| 24. |
256995A1
|
[1] |
DECAL
|
CAS
model left See Figure: 2-90
|
| . . |
614-6016
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Not Illustrated Superseded by part number: 86508568
|
