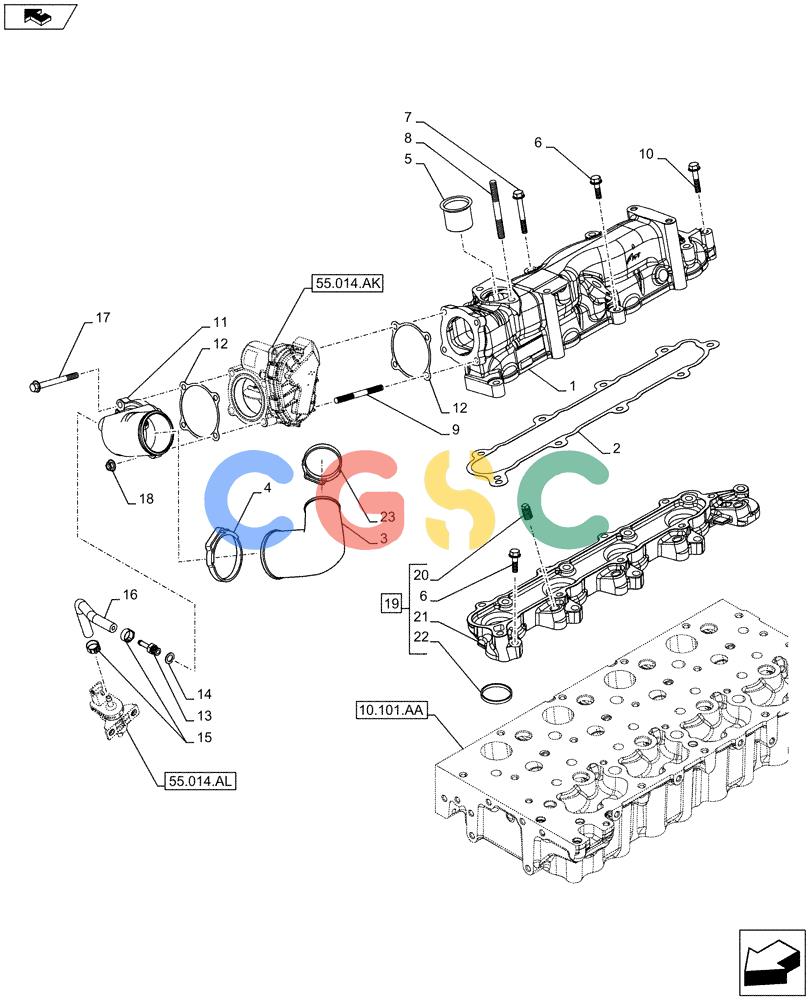

纽荷兰零件查询(F5HFL463A F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (10.254.AM) - AIR INTAKE, MANIFOLD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 504380898 | [1] | MANIFOLD GASKET | TOR |
| 3. | 5801541036 | [1] | HOSE | TOR |
| 5. | 504381914 | [1] | JUNCTION | TOR |
| 6. | 16673835 | [11] | BOLT,Hex, M8 x 30mm | TOR |
| 7. | 16598425 | [5] | BOLT,M8 x 1.5 x 110mm | AST |
| 8. | 13518021 | [2] | STUD | TTF |
| 9. | 16728524 | [2] | STUD | TOR |
| 10. | 16586925 | [2] | BOLT,M8 x 50mm | TOR |
| 11. | 504389181 | [1] | INTAKE AIR HOSE | TOR |
| 12. | 504387920 | [2] | GASKET | TOR |
| 13. | 5801376672 | [1] | UNION | TOR |
| 14. | 17749985 | [1] | GASKET | TOR |
| 15. | 18199070 | [2] | MOUNTING CLIP | TOR |
| 16. | 5801404363 | [1] | TUBE | TOR |
| 17. | 16597524 | [2] | BOLT,Hex, M6 x 65mm, Cl 8.8 | TOR |
| 18. | 2852197 | [2] | FLANGE NUT,M6 x 1 | TOR Superseded by part number: 17044625 |
| 19. | 5801363172 | [1] | VALVE COVER | TORASSY, Incl 6, 20-22 |
| 20. | 504273002 | [4] | PLUG,M12 x 1.5 | TOR |
| 21. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 22. | 5801363175 | [4] | GASKET | TOR |
