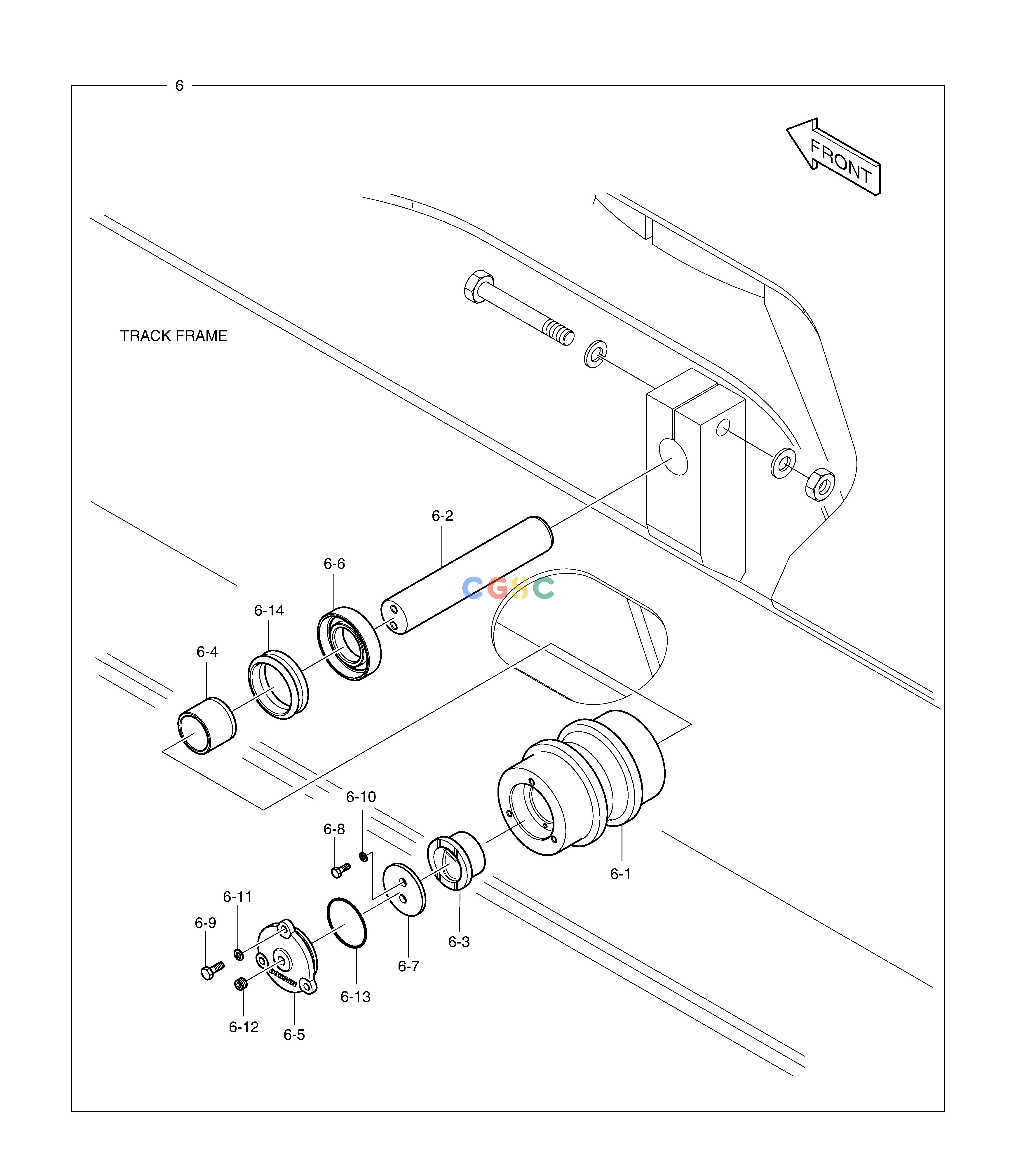

斗山零件查询UPPER ROLLER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1039703B
|
[-] |
TRACK ASS'Y
|
|
| 6. |
K1037728
|
[4] |
ROLLER;UPPER
|
|
| 6-1. |
NA00079
|
[1] |
BODY
|
|
| 6-10. |
S5102603
|
[2] |
. WASHER
|
|
| 6-11. |
S5102503
|
[3] |
. WASHER
|
|
| 6-12. |
2181-1116D2
|
[1] |
PLUG
|
|
| 6-13. |
S8010650
|
[1] |
O-RING
|
|
| 6-14. |
2180-9005B
|
[2] |
SEAL;FLOATING
|
|
| 6-2. |
K1038389
|
[1] |
SHAFT
|
|
| 6-3. |
K1038390
|
[1] |
BUSHING
|
|
| 6-4. |
K1038391
|
[1] |
BUSHING
|
|
| 6-5. |
K1038392
|
[1] |
COVER
|
|
| 6-6. |
K1038393
|
[1] |
RING;THRUST
|
|
| 6-7. |
K1038394
|
[1] |
WASHER
|
|
| 6-8. |
S0712061
|
[2] |
BOLT
|
|
| 6-9. |
S0508861
|
[3] |
BOLT M8X1.25X20
|
|
