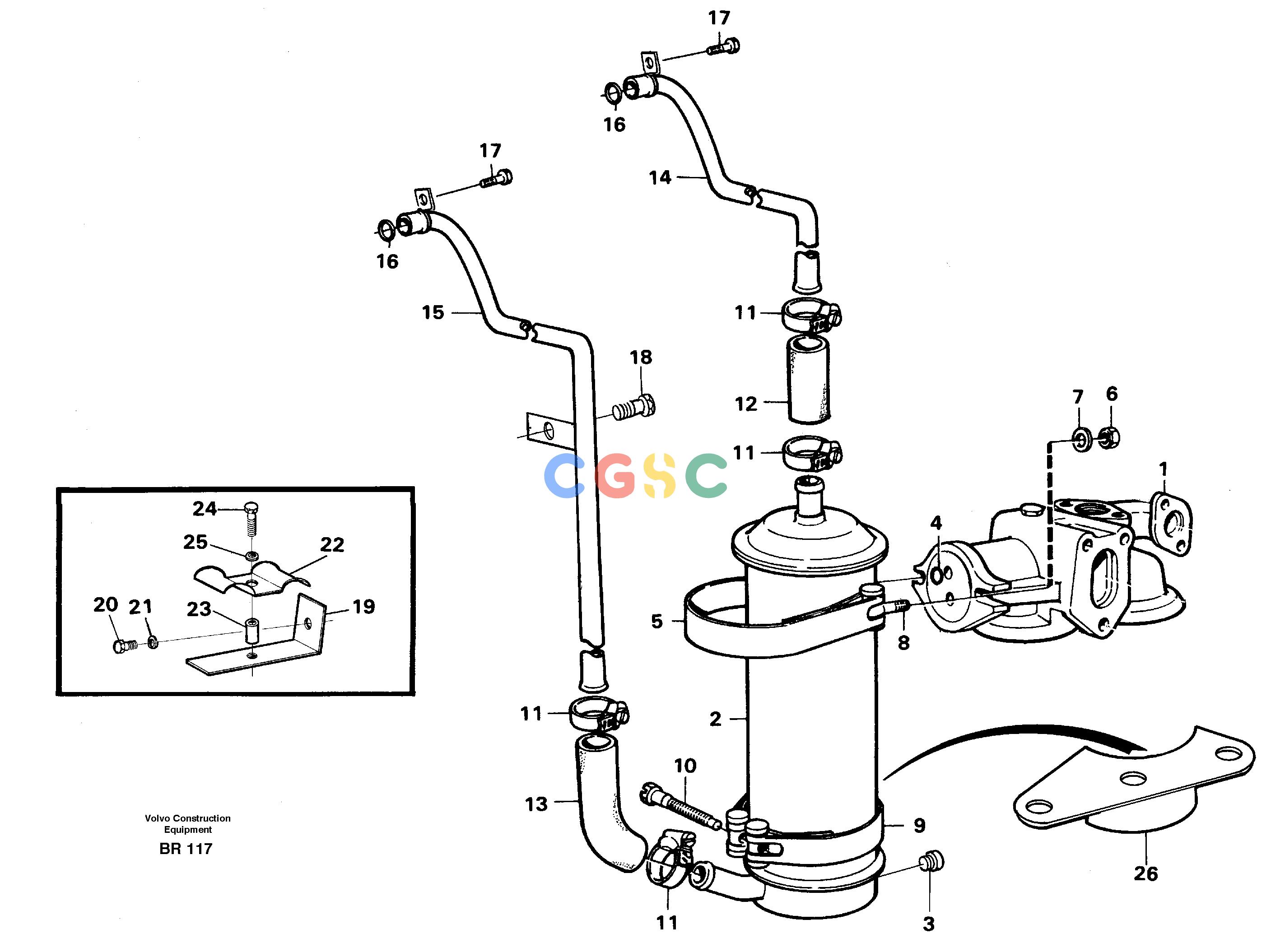

沃尔沃零件查询A40 Oil coolerSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE468612
|
[1] |
Oil cooler
|
|
| 3. |
VOE180759
|
[1] |
Plug
|
|
| 4. |
VOE469483
|
[2] |
Sealing ring
|
|
| 5. |
VOE1545255
|
[1] |
Tensioning band
|
|
| 6. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 7. |
VOE13960141
|
[2] |
Washer
|
|
| 8. |
VOE924072
|
[2] |
Stud
|
|
| 9. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 10. |
VOE1545257
|
[1] |
Screw
|
|
| 11. |
VOE943475
|
[4] |
Hose clamp
|
|
| 12. |
VOE944386
|
[REQ] |
Hose
|
L=80mm
|
| 13. |
VOE11162272
|
[1] |
Hose
|
|
| 14. |
VOE479612
|
[1] |
Tube
|
|
| 15. |
VOE479614
|
[1] |
Tube
|
|
| 16. |
VOE470527
|
[2] |
Sealing ring
|
|
| 17. |
VOE13942624
|
[2] |
Flange screw
|
|
| 18. |
VOE13942624
|
[1] |
Flange screw
|
|
| 19. |
VOE468772
|
[1] |
Bracket
|
|
| 20. |
VOE940186
|
[1] |
Hexagon screw
|
|
| 21. |
VOE191172
|
[1] |
Washer
|
|
| 22. |
VOE468684
|
[1] |
Plate
|
|
| 23. |
VOE470721
|
[1] |
Spacer sleeve
|
|
| 24. |
VOE940161
|
[1] |
Hexagon screw
|
|
| 25. |
VOE13941907
|
[1] |
Washer
|
|
| 26. |
VOE479796
|
[1] |
Bracket
|
|
