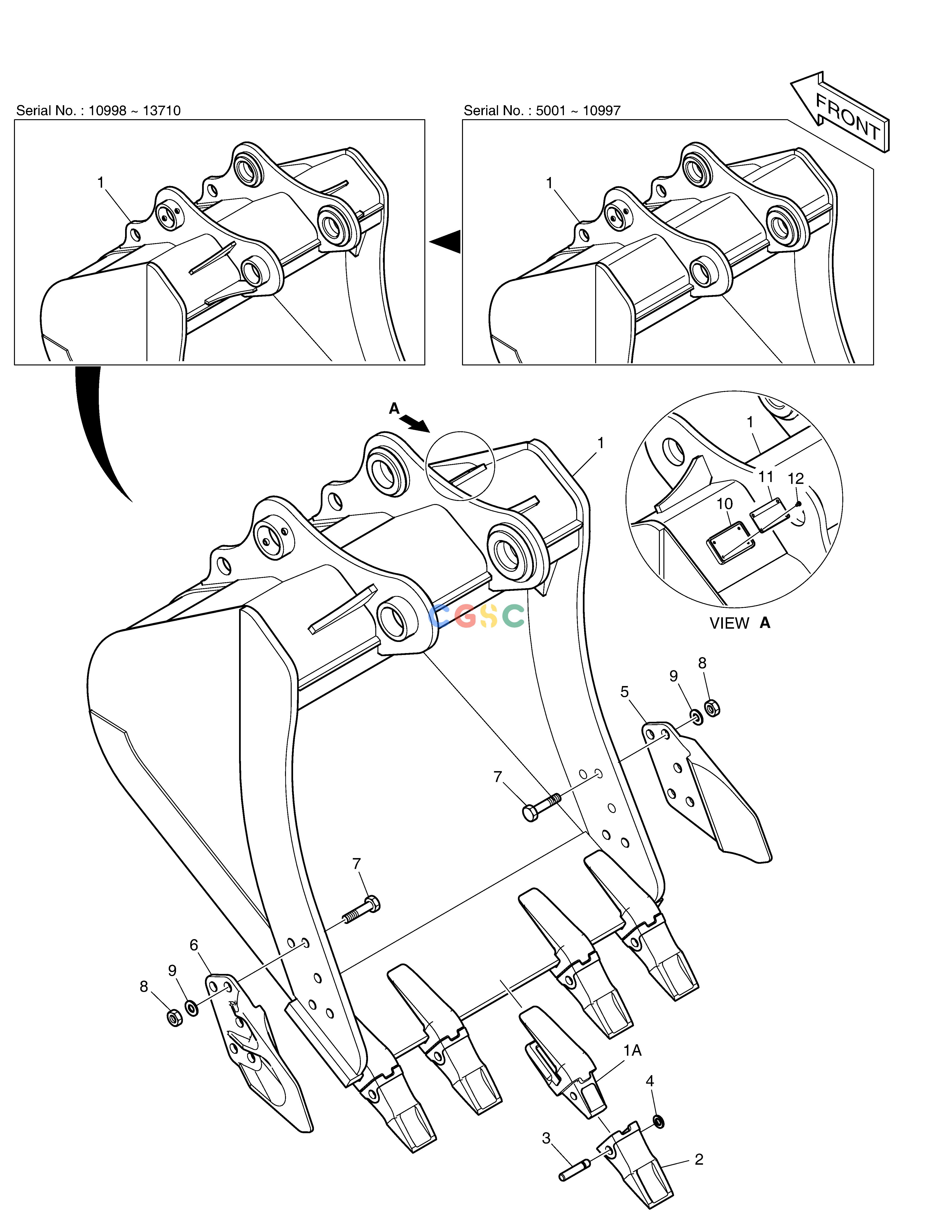

斗山零件查询BUCKET ASS'Y - 0.92m³ DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1000321G
|
[1] |
BUCKET ASS'Y-0.92㎥
|
230104-01245
|
| -. |
230104-01245
|
[1] |
|
230104-01245A
|
| -. |
230104-01245A
|
[1] |
|
230104-01245B
|
| -. |
230104-01245B
|
[1] |
|
|
| 1. |
K1000322G
|
[1] |
BUCKET-0.92㎥
|
230104-01246
|
| 1. |
230104-01246
|
[1] |
|
230104-01246A
|
| 1. |
230104-01246A
|
[1] |
|
230104-01246B
|
| 1. |
230104-01246B
|
[1] |
|
|
| 10. |
110913-00289A
|
[1] |
|
|
| 11. |
950209-04415A
|
[1] |
|
|
| 12. |
DS0501007
|
[4] |
|
|
| 1A. |
2713-1218A
|
[5] |
.. ADAPTER;TOOTH
|
|
| 2. |
K1038006A
|
[5] |
TOOTH
|
|
| 3. |
2705-1020
|
[5] |
. PIN,LOCKING
|
|
| 4. |
2114-1848A
|
[5] |
. WASHER,LOCKING
|
|
| 5. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 6. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 7. |
S0574661
|
[10] |
. BOLT
|
|
| 7. |
S0574761
|
[10] |
BOLT M24X3.0X70
|
|
| 8. |
S4013333
|
[10] |
. NUT
|
|
| 9. |
2114-1831A
|
[10] |
. WASHER
|
|
