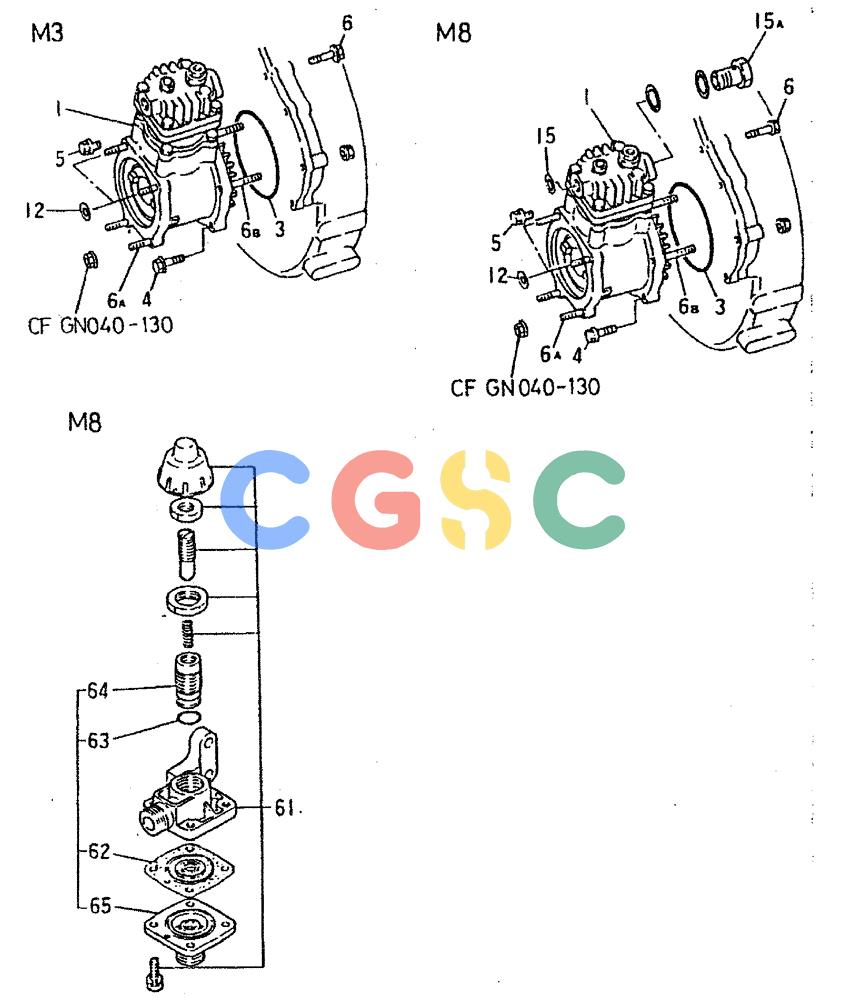

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-046) - AIR COMPRESSOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME047160 | [1] | AIR COMPRESSOR | KOB301CC, M8 ONLY |
| . . | VAME037955 | [1] | AIR COMPRESSOR | KOB201CC, M3 ONLY |
| 3. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| 4. | VAMH000711 | [2] | SCREW | KOBBOLT, FLANGE, 10 X 40 Superseded by part number: 135146A1 |
| 5. | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE, 10 X 25 |
| 6. | VAMH000712 | [1] | SCREW | KOBBOLT, FLANGE, 10 X 65 |
| 6A. | VAMH002131 | [4] | STUD | KOBSTUD, 10 X 43 Superseded by part number: 132296A1 |
| 6B. | VAMF406296 | [2] | BOLT | KOBSTUD, 10 X 60 |
| . . | VAMF434105 | [2] | NUT | KOBNUT, FLANGE 10 |
| 12. | VAMH005068 | [2] | WASHER | KOBWASHER, PLAIN 10 |
| 15. | VAMF660068 | [1] | PACKING | KOBGASKET 20, M8 ONLY Superseded by part number: VAF420220000 |
| 15A. | VA3117512101 | [1] | BRACKET BOLT, UNION, M8 ONLY | BRACKET BOLT, UNION, M8 ONLY |
| . . | VAMF660071 | [2] | PACKING | KOBGASKET 27, M8 ONLY |
| 61-65. | VAMC802150 | [1] | GOVERNOR | KOBPRESSURE GOVERNOR ASSY, 7.1-8.0, M8 ONLY |
| 61. | NSS | [1] | NOT SOLD SEPARAT | CONBODY, GOV, M8 ONLY |
| 62-65. | VAMC802151 | [1] | KIT, ENGINE TOP GASK | KOBPRESSURE GOVERNOR KIT, M8 ONLY Superseded by part number: 77268813, VA4087070100 |
| 62. | VAME705602 | [1] | DIAPHRAGM | KOBASSY, M8 ONLY |
| 63. | VAMC821656 | [1] | O-RING, M8 ONLY | |
| 64. | VAME705601 | [1] | SLEEVE, M8 ONLY | |
| 65. | VAME705603 | [1] | CAP ASSY, M8 ONLY | |
