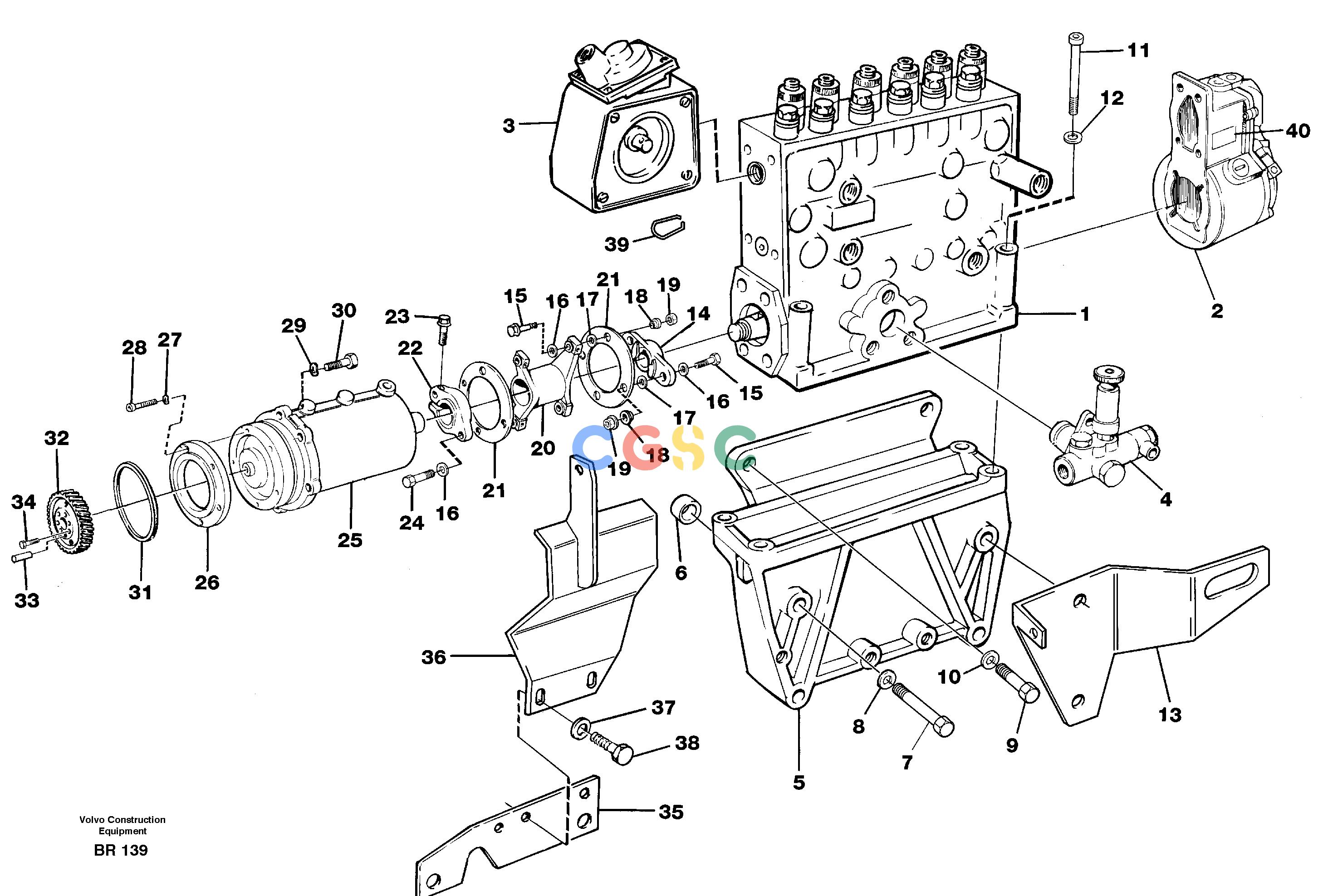

沃尔沃零件查询A40 Fuel injection pump with fitting partsSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11031994
|
[1] |
Injection pump
|
|
| 1. |
|
[1] |
Injcection pump
|
|
| 2. |
|
[1] |
Centrifugal regulator
|
|
| 3. |
|
[1] |
Smoke limiter
|
|
| 4. |
|
[1] |
Feed pump
|
|
| 5. |
VOE866784
|
[1] |
Bracket
|
|
| 6. |
VOE423161
|
[2] |
Guide sleeve
|
|
| 7. |
VOE955566
|
[4] |
Hexagon screw
|
|
| 8. |
VOE940280
|
[4] |
Spring washer
|
|
| 9. |
VOE479696
|
[2] |
Screw
|
|
| 10. |
VOE13940097
|
[2] |
Washer
|
|
| 11. |
VOE956594
|
[4] |
Hex. socket screw
|
|
| 12. |
VOE190509
|
[4] |
Washer
|
|
| 13. |
VOE11051067
|
[1] |
Bracket
|
|
| 14. |
VOE478358
|
[1] |
Companion flange
|
|
| 15. |
VOE13965185
|
[6] |
Screw
|
M10x40
|
| 16. |
VOE976945
|
[8] |
Washer
|
|
| 17. |
VOE479399
|
[8] |
Washer
|
|
| 18. |
VOE478897
|
[8] |
Sleeve
|
|
| 19. |
VOE13971095
|
[8] |
Flange nut
|
|
| 20. |
VOE1556175
|
[1] |
Intmd Section
|
|
| 21. |
VOE479458
|
[8] |
Companion disc
|
|
| 22. |
VOE1556186
|
[1] |
Companion flange
|
|
| 23. |
VOE1556285
|
[1] |
Screw
|
|
| 24. |
VOE13965220
|
[2] |
Screw
|
M10x45
|
| 25. |
VOE1638132
|
[1] |
Injection timing device
|
|
| |
VOE1638218
|
[1] |
Bushing
|
REAR
|
| |
VOE477551
|
[1] |
Bearing bushing
|
FORW
|
| |
VOE1546221
|
[1] |
Sealing ring
|
|
| 26. |
VOE477409
|
[1] |
Thrust washer
|
|
| 27. |
VOE13941906
|
[5] |
Washer
|
|
| 28. |
VOE942314
|
[5] |
Hex. socket screw
|
|
| 29. |
VOE13941907
|
[5] |
Washer
|
|
| 30. |
VOE13940159
|
[5] |
Screw
|
|
| 31. |
VOE423123
|
[1] |
Sealing ring
|
|
| 32. |
VOE479985
|
[1] |
Gear
|
|
| 33. |
VOE950586
|
[1] |
Pin
|
|
| 34. |
VOE975199
|
[6] |
Flange screw
|
|
| 35. |
VOE11031088
|
[1] |
Plate
|
|
| 36. |
VOE11052228
|
[1] |
Protecting plate
|
|
| 37. |
VOE925760
|
[2] |
Washer
|
|
| 38. |
VOE13946173
|
[2] |
Screw
|
|
| 39. |
VOE422525
|
[1] |
Towing eye
|
|
| 40. |
VOE478714
|
[1] |
Sign
|
|
